Page 1: Installation And Operation

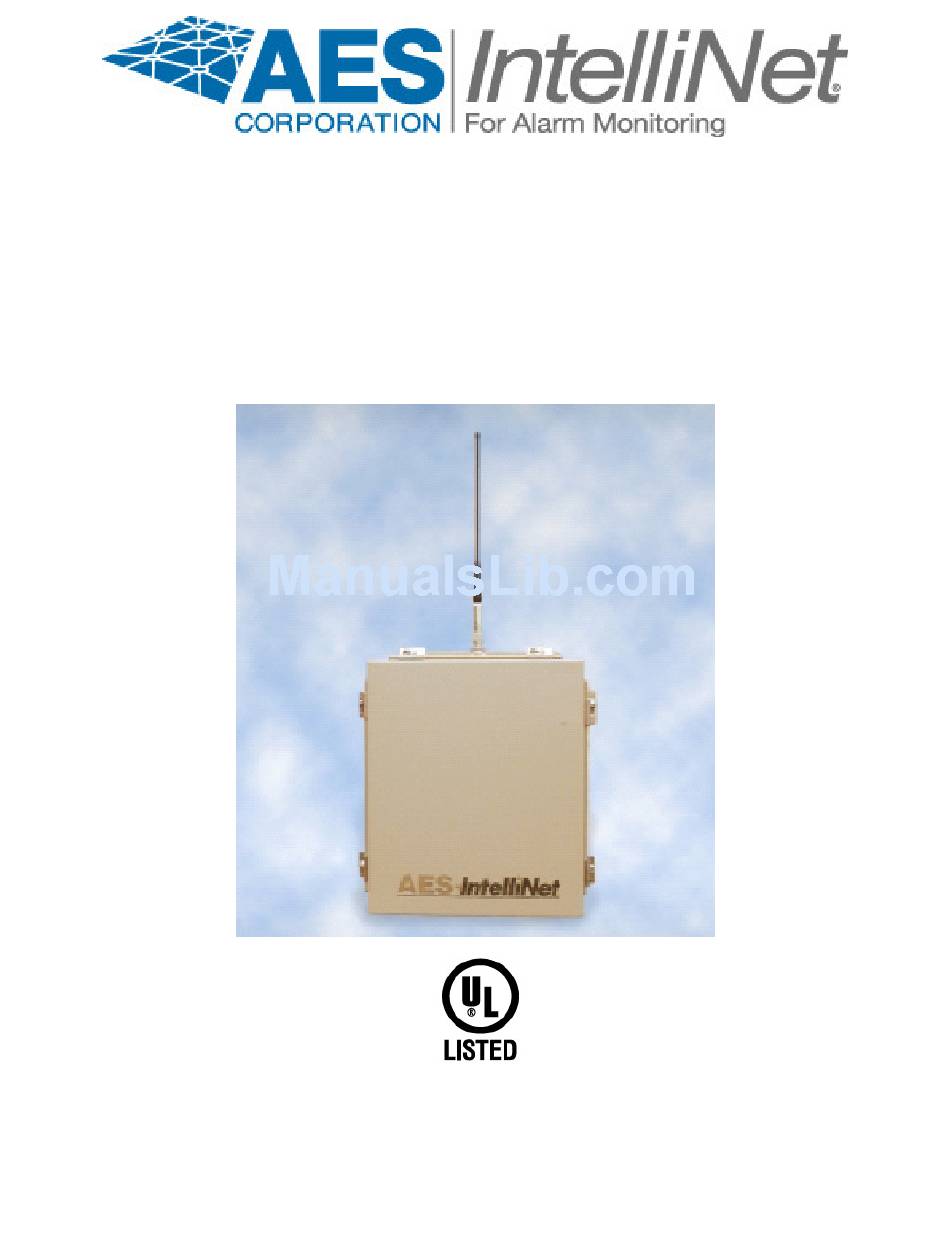

AES 7170 IP-Link Transceiver (Remote & Local) Installation and Operation Manual 40-7170 Revision 1.5a August 10, 2009... -
Page 2: Table Of Contents
A. Interface Board LEDs and Speaker: ................ 13 B. RF / Radio Control Board LEDs:................13 8.0 Programming and Setup of the 7170 IP-Link Transceiver: ........14 A. Communicating with the 7170 IP-Link Transceiver: ..........16 B. Initializing the 7170 IP-Link Transceiver: ............... 18 D. -
Page 3: Product Description: Aes 7170 Ip-Link System
IP-Link system deployment. Figure A. Typical IP-Link Network Configuration The AES 7170 IP-Link System is available in a single or dual configuration. In a dual configuration, the second IP-Link Transceiver acts as the backup. Each IP-Link Transceiver will be configured to monitor and be monitored by a MultiNet receiver. -
Page 4: 7170 Ip-Link Transceiver
RG8 Coax must be physically protected in conduit between the antenna and the 7170’s enclosure. Transformer and its wiring must be protected in conduit and in an AES 1640-ENCL enclosure. Unit must bonded to Earth Ground via the ground lug on PCB. -
Page 5: Bandpass Cavity Filter(S)
Low-Loss RG-8 (Belden 9913 type) coax cable is supplied with appropriate “N- Type” connectors for maximum performance. For NFPA 72 compliance the RG8 Coax must be physically protected in conduit between the antenna and the 7170’s enclosure. E. Surge Suppressor(s): A device installed in the coaxial transmission line to help protect components and structure against surges like those produced by lightning. -
Page 6: Safety Considerations
2.0 Safety Considerations: The following items are safety related precautions that you should take into consideration when installing your AES IntelliNet system. They are for your safety as well as others and the safety of your equipment. • Use caution when installing antennas to keep them away from electrical wires which could cause serious injury or death if antenna makes contact with live wires. -
Page 7: Installation And Equipment Separation
5.0 Installation and Equipment Separation: The IP-Link Transceiver installation site is a critical element of the AES IntelliNet network. Every installation is unique, taking into account structure, geography and other factors. This section covers elements of the system installation and operation. Read the entire document before proceeding with your installation. -
Page 8: Coaxial Cabling And Connections
100 feet unless you use a lower loss cable than provided with the standard system. AES provides a Belden 9913 or equivalent which is a lower loss cable than standard RG-8/U. 9913 is specified as about 3 dB per 100 feet at 400 MHz, which means a loss of 50% of power in 100 feet of coax. -
Page 9: Surge Suppressor
Crimp outer ferrule using Die Set Cavity specified in table above. Installation of Clamp Style N-Type connectors: This style connector is no longer provided by AES. The illustration is provided in case you come across one. Figure F – Solder Type N Connector E. -
Page 10: Wiring (Electrical Inputs And Outputs)
Console Port – dB-9 Serial port used to program and configure the IP-Link’s parameters. Use standard serial cable appropriate for terminal being used. Connections on Radio Control Board. This is the bottom Board. It is an AES 7001 PCB. Radio Transceiver Cable –... -
Page 11: Enclosure Label, Inside Cover
A. Enclosure Label, Inside Cover: Below is an illustration of the label that is adhered to the inside of the cover. Notes and example connection details are included. Figure H. Enclosure Inside Door Label 40-7170 Revision 1.5a August 10, 2009... -
Page 12: Terminal Block Connection Details
Figure J. Telephone Connection UL Installation Note: When connecting the 7170 IP-Link Transceiver’s modem to a telephone line, a UL Listed 497A Secondary Protector is required to be installed on the incoming lines. Installation shall be in accordance with the NEC Article 800, the manufactures installation instructions and in accordance with all local codes. -
Page 13: Indicators
RF communication is off the network. Off is a normal indication. AL (Red LED) – This LED is a status / Troubleshooting indicator. It is currently not in use and is usually on. This LED can be ignored. 40-7170 Revision 1.5a August 10, 2009... -
Page 14: Programming And Setup Of The 7170 Ip-Link Transceiver
MultiNet Receiver and will be removing power after performing those functions and testing. 8.0 Programming and Setup of the 7170 IP-Link Transceiver: NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. - Page 15 Never Press the Reset Button on the IP-Link Board until you have been properly instructed by AES on the correct procedure! Generally it is safe to press the reset or remove power from the IP-Link, only after accessing the Command prompt.
-
Page 16: Communicating With The 7170 Ip-Link Transceiver
Link Transceiver via the Console port to access a built in Setup menu and to transfer files necessary for modifying essential configuration settings. A.1. Configure Hyper Terminal to communicate with the 7170: Hyper Terminal is a communication program that is included with many Microsoft Windows installations. - Page 17 5. You are now ready to use HyperTerminal. If the IP-Links is already powered operating, pressing <Enter> may be required communication started. The display should be quite active during normal operating mode. Figure O – HyperTerminal Display Screen 40-7170 Revision 1.5a August 10, 2009...
-
Page 18: Initializing The 7170 Ip-Link Transceiver
The following instructions assume the IP-Link is unpowered. 1. Confirm that an RS 232 Cable is connected between the serial input of the 7170 “Console” and the COM port of your PC running a terminal program. 2. Confirm that the RJ45 Ethernet Cable is connected (or ready to be connected) between your LAN or WAN Network and the Ethernet jack on the IP-Link Transceiver. - Page 19 If you pressed X during startup of the IP-Link and are at a command prompt, enter the UCMD<Enter> command, without parameters and the IP-Link programs will start and it will attempt connecting to your MultiNet Server. 40-7170 Revision 1.5a August 10, 2009...
-
Page 20: Configuring The 7170 Ip-Link Transceiver
IP address. Examples: 192.168.1.11 10.0.4.11 dhcp (* requires a dhcp server) * Contact AES Support before using dhcp over the Internet 40-7170 Revision 1.5a August 10, 2009... - Page 21 Netmask. 4: Disabled. This Menu item displays Debug Logging mode. This should only be used at the direction of AES Technical Support or Engineering. It is typically used to troubleshoot or understand a problem. I: Disabled. This Menu item displays the 8 digit Hexadecimal IPLinkNode ID of which the last four digits is the ID reported for this device in Radio Packets.
- Page 22 U: TCP/IP Socket Timeout is the time that the unit waits for an ACK for a sent TCP/IP packet. Default is 30 seconds. Setting this to greater than 30 seconds could delay the switch over to Backup Modem to greater than 90 seconds. Contact AES Technical support before attempting to modify this value.
- Page 23 Type a “?” and then <Enter> to get a list of commands that will be accepted by the IP-Link’s terminal interface. Unknown Command “..” Try Typing ? The response to entering “?” <Enter> produces the following response: Valid Commands: Setup, Info, Primary Server 40-7170 Revision 1.5a August 10, 2009...
-
Page 24: Testing The 7170 Ip-Link Transceiver
IP-Link Transceiver at the local installed location. Instructions for connecting and configuring a terminal to the IP-Link transceiver can be found in Section 8 “Programming and Setup of the 7170 IP-Link”. Receiving the output on your terminal’s display as shown in “Example 1: Startup Messages”... -
Page 25: Test Rf Signal
Ethernet connection and with the IT administrator to resolve this issue. E. Test RF Communication Functionality: The easiest method to locally test RF functionality is to have a programmed AES Subscriber unit with 7041 Hand Held Programmer available. Use the “Display Status”... -
Page 26: Warranty / Service Procedures
AES including central station receivers and accessories will be warranted for one (1) year from the date of purchase. At no cost to the original purchaser for parts or labor, AES will repair or replace any AES Product or any, part or parts thereof which are judged defective under the terms of this Warranty. -
Page 27: Appendix A. Configuring The 7170 Ip-Link Transceiver
Appendix A. Configuring the 7170 IP-Link Transceiver: As of mid 2009 you must contact AES Technical Support to have them create and install the required Configuration file(s) for your 7170 IP-Link Transceiver. All of the settings that need to be modified to configure an IP-Link are contained in configuration files located on the IP-Link’s file storage system.
