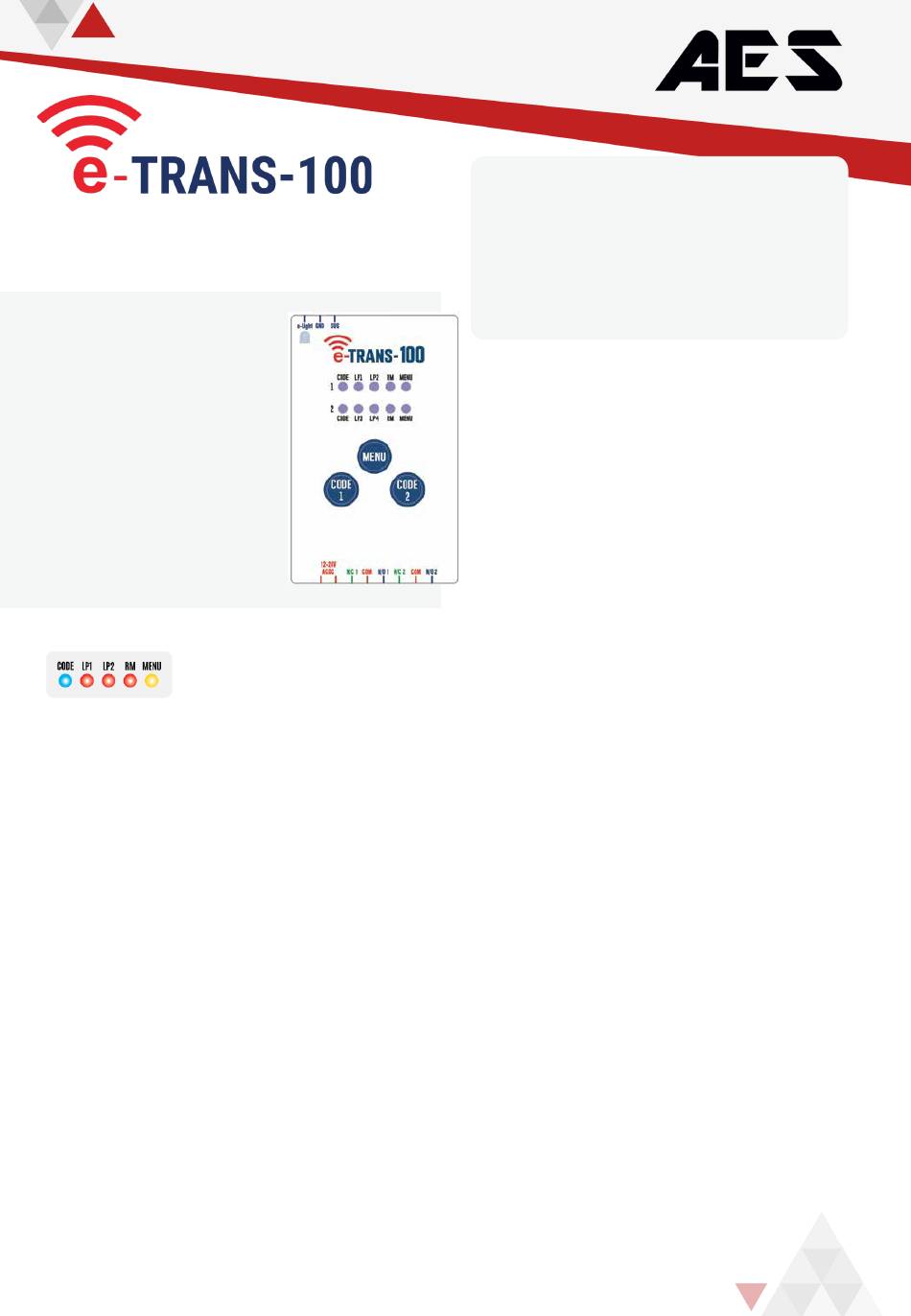

AES e-TRANS-100 Manual

TWO-CHANNEL TRANSCEIVER
VERSION 3
Specifications
Model: E-TRANS-100
Voltage: 10-28V AC/DC
Current draw standby: 12 m/a
Current draw active: 20 m/a
Frequency: 433.39 MHz
Band width: 250Hz
Relay: 1-amp contact rating,
COM and N/O connections x2
Transmitting power: <10mW
CODE LED = Blue
LP1, LP2, RM LEDs = Red
MENU LED = Yellow
Coding device
CH1 Code LP1 LP2 Rem Menu = Relay 1
CH2 Code LP3 LP4 Rem Menu = Relay 2
Coding E-LOOP
1. To code device, hold the E-LOOP close to the
antenna of the E-Trans 100.
2. Now press and release the Code channel button you
want the E-LOOP coded to. You should see the blue
'Code' LED flash and the red LED (LP1) or (LP2) will
flash indicating E-LOOP allocation. The E-LOOP will
also flash the yellow LED at the same time, then the
red LED.
Version 3 E-Loop coding
(Release date 15/10/2023 for all commercial
E-LOOPS)
1. To code the device, press and release the Code channel
button you want the e-Loop coded to. You should see
the blue 'Code' LED light up.
2. Now place the magnet on the E-LOOP recess and you
should see the yellow 'Code' LED on the E-LOOP flash.
The blue 'Code' LED will flash and the red LED (LP1) or
(LP2) will flash indicating which space has been filled.
The E-LOOP will also flash the yellow LED at the same
time, then the red LED.
Safety instructions
Before proceeding with the product's installation, check that
all the materials are in good working order and suited to the
intended applications.
Danger due to electric power. Contact with live parts may
result in an electric current flowing through the body. Electric
shock, burns, or death may result. Installation must be done
by an authorized specialist.
To code E-LOOP long range
Place a magnet on the CODE recess on the e-loop until the
yellow LED comes on solid, remove the magnet, now go the
E-Trans 100, you have a 60 second window.
Now press and release the Code channel button you want
the E-LOOP coded to. The blue 'Code' LED will flash and the
red LED (LP1) or (LP2) will flash indicating which space has
been filled. The E-LOOP will also flash the yellow LED at the
same time, then the red LED.
Coding a remote or keypad
1. To code remote, press and release the Code channel
button you want the remote to code to. You should see
the blue 'Code' LED light up.
2. Now press the number button on the remote you want
the E-Trans 100 to operate from and the 'Code' LED will
flash as well as the Rem 'RM' LED. The remote is now
coded.
3. You can follow on with a second remote or press the
same remote again to exit code learn. Code learn will
automatically kick out after 5 seconds of inaction.
NOTE: If you code an E-Remote Lock button into either channel,
it will latch the relay when Lock button is pressed and unlatch
the relay when Unlock button is pressed. You will also see the
Lock and Unlock LED flash on the E-Remote.
Deleting all coded devices
1. First select which channel you want to delete.
2. To delete all devices, press and hold the Code
channel button you wish to delete. After 10 seconds
you should see all channel 1 LEDs flash twice for
channel 1, or all channel 2 LEDs flash twice for
channel 2.
To delete individual e-Loops or all remotes
1. Press and hold the Code channel button, now press
and release the Menu button and 'LP1' LED will light
up. If this is not correct, then press the Menu button
again until you are on the correct LED.
2. Once the correct selection has been made, keep your
finger on the Code button until all LEDs on channel 1
flash.
