AES 7350 Installation Manual

7350 Integrated Transceiver Kit - Brief Installation Manual
► 7350 Technical Specifications
♦ PLL RADIO:
Standard UHF Frequency
Ranges (410-440MHz, 440-470MHz, 470-512MHz)
Standard VHF Frequency Range (150-174 MHz)
♦
STANDARD OUTPUT POWER: 2 or 5 watts
♦
SIZE: 2.25"W x 1.25" D x 4.75"L (5.7cmW x 3.2cmD x 12cmL)
♦
WEIGHT: 8.9 oz. (276 grams)
♦
VOLTAGE: 12VDC nominal
♦
POWER INPUT: 12-13.8VDC Maximum
♦
CURRENT: 150mA standby; 1A transmit (2W), 1.5A transmit
(5W)
♦
OPERATING TEMPERATURE RANGE: 0° to 50° C (32° to
122°F)
♦
STORAGE TEMPERATURE RANGE:
140°F)
♦
RELATIVE HUMIDITY RANGE:
Condensing
♦
ALARM SIGNAL INPUTS: 4 individually programmable Zones:
NO/NC/Supervised EOL/Fire EOL/ Trouble and Restore
♦
LOW BATTERY REPORTING: Below 11V. 22.5 Minute Test
Cycle (approx)
♦
ANTENNA CUT / LOCAL REPORTING: 12V open collector
output at Trbl, ground on activation; 200ma max load.
♦
PHONE LINE CUT MONITOR: Reports line cut to Receiver as Zn
5 Trouble.
♦
RESET BUTTON: Located at end opposite RF connection.
► WARNING:
♦ It is unlawful to operate this equipment in the USA without a valid
FCC radio station license.
♦ If the antenna or cables connected to this equipment come in contact
with electrical power lines, DEATH or SERIOUS INJURY may result.
♦ Test this system periodically for proper operation. AES assumes no
responsibility for this equipment's failure to operate.
responsibility is to repair or replace any AES device found to be
defective during the warranty period.
♦ Exposure to extreme cold below 0ºC or extreme hot above 50ºC could
damage any Gel battery used in the installation of this product and
cause unexpected operation of electronics.
♦ Exposure of the 7350 to excessive water or moisture (such as a
shower, bath, pool, sauna, etc) could cause damage and unexpected
operation of the electronics.
♦ Avoid dropping or other physical impact to the 7350, which could
damage the enclosure or internal components of the unit.
There are no serviceable parts of the 7350 unit.
► Optional Accessories
7085 – RF Programmer
7041 – Subscriber Hand-Held Programmer
7067 – IntelliTap II
► Regulatory Compliance
The AES Model 7350 product has not been submitted for either Canadian
or USA identification or compliance and so is not intended for use in the
USA and Canada.
AES Corporation

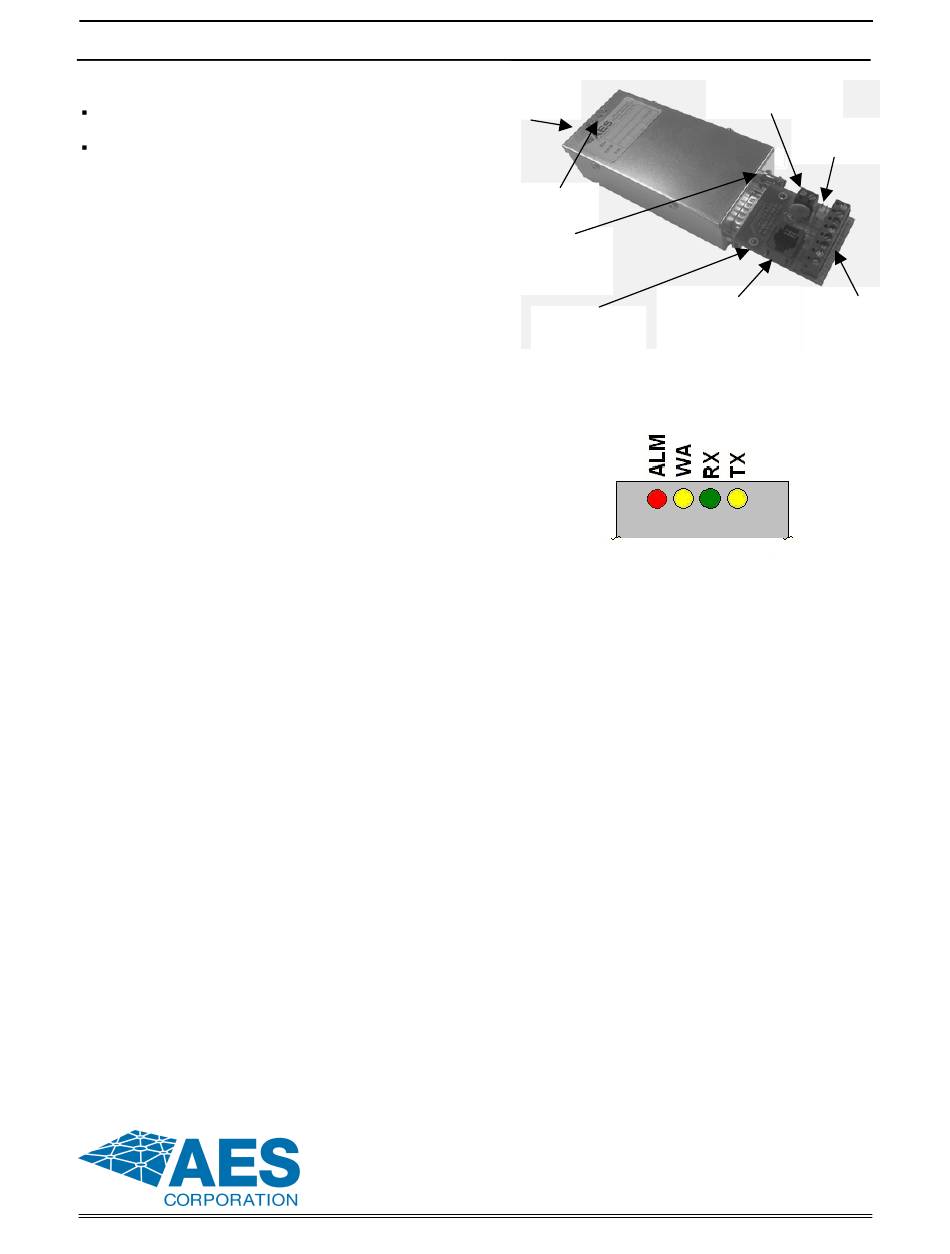

AES Model 7350 Integrated transceiver Kit
Reset Button
- recessed
-10° to 60° C (14° to
0 to 85% RHC, Non
AES's sole
LED
Indicators
BNC
Antenna
Connector
J3 - Programmer
and External
7350-10 PCB
Module Connector
Assembly
Transceiver and Interface Board
► Status (LED) Indicators
Red Yel Grn Yel
LED Indicators on Enclosure
There are 4 LED's on the cover of the 7350.
The function of each is described below.
ALM –
(Red) Status / troubleshooting indicator,
See "...Blink Patterns" below
WA –
(Yellow) Steady On = Waiting for
acknowledgment of last transmission;
–
Steady Blinking = Not on Network; Off = Normal
RX –
(Green) Indicates radio receive (includes any
radio activity on this frequency strong enough to
break squelch)
TX –
(Yellow) indicates radio transmit
► Red ALM LED, Blink Patterns
Blink Codes: "●" = short "▬" = long. Period between
patterns is about 1 second with diagram showing 3 repeats.
|1 second|
● ● ● Steady blink – System OK;
●● ●● ●● Short-Short blink – low battery;
●▬ ●▬ ●▬ Short-long blink – an input is in
alarm or trouble
●●▬ ●●▬ ●●▬ Short-short-long blink – low batt
& zone in alarm or trouble
▬▬▬▬▬▬▬▬▬ Steady / no blink – Self test fail
(Excluding low battery)
AES Corporation
285 Newbury Street
Peabody, MA 01960-1315 USA
Tel (978) 535-7310 • Fax (978) 535-7313 aes-
aes-corp.com
2021 AES Corporation - All Rights Reserved
P/N 40-7350-S Rev 2. 6/10/21
Page 1
Phone Line Input
for Cut Detection
Trbl –
Antenna cut
J2 - Power
Input and
Zone
