AES E-TRANS-100 Manual

TWO CHANNEL TRANSCEIVER
Specifications
Model: E-TRANS-100
Voltage: 10-28V AC/DC
Current draw standby: 12 m/a
Current draw active: 20 m/a
Frequency: 433.39 MHz
Band width: 250Hz
Relay: 1-amp contact rating, COM
and N/O connections x2
Transmitting power: <10mW
Safety instructions
Before proceeding with the product's
installation, check that all the materials are in
good working order and suited to the intended
applications.
Danger due to electric power. Contact with live
parts may result in an electric current flowing
through the body. Electric shock, burns, or death
may result. Installation must be done by an
authorized specialist.
E. sales@aesglobalonline.com

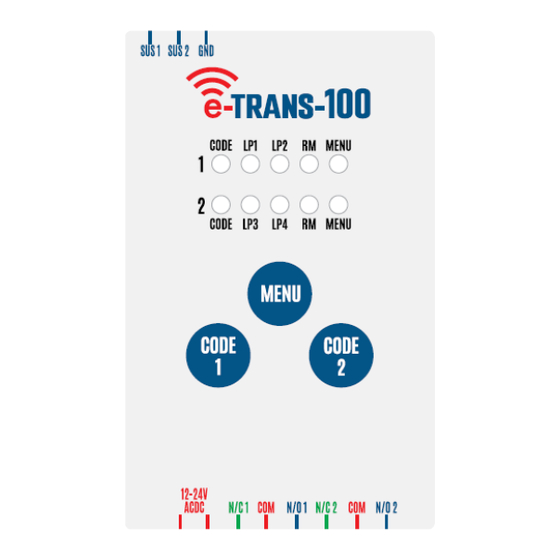

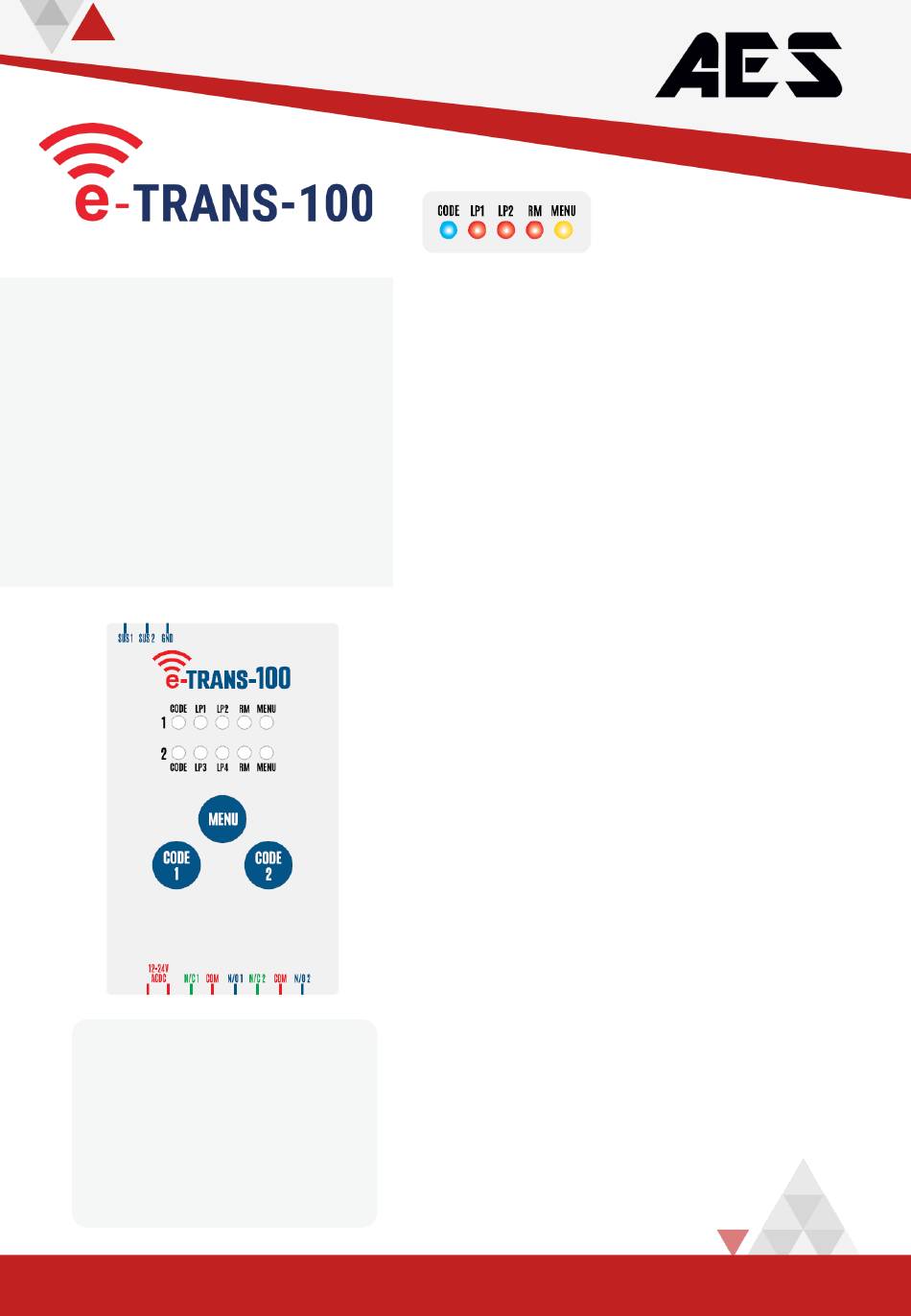

Coding device
CH1 Code LP1 LP2 Rem Menu = Relay 1
CH2 Code LP3 LP4 Rem Menu = Relay 2
Coding E-LOOP
1. To code device, hold the E-LOOP close to the antenna of the
E-Trans 100.
2. Now press and release the Code channel button you want the
E-LOOP coded to. You should see the blue 'Code' LED flash
and the red LED (LP1) or (LP2) will flash indicating E-LOOP
allocation. The E-LOOP will also flash the yellow LED at the
same time, then the red LED.
Version 3 E-Loop coding
(Release date 15/10/2023 for all commercial E-LOOPS)
1. To code the device, press and release the Code channel
button you want the e-Loop coded to. You should see the
blue 'Code' LED light up.
2. Now place the magnet on the E-LOOP recess and you should
see the yellow 'Code' LED on the E-LOOP flash. The blue
'Code' LED will flash and the red LED (LP1) or (LP2) will flash
indicating which space has been filled. The E-LOOP will also
flash the yellow LED at the same time, then the red LED.
To code E-LOOP long range
Place a magnet on the CODE recess on the e-loop until the yellow LED
comes on solid, remove the magnet, now go the E-Trans 100, you
have a 60 second window.
Now press and release the Code channel button you want the E-LOOP
coded to. The blue 'Code' LED will flash and the red LED (LP1) or (LP2)
will flash indicating which space has been filled. The E-LOOP will also
flash the yellow LED at the same time, then the red LED.
Coding a remote or keypad
1. To code remote, press and release the Code channel button
you want the remote to code to. You should see the blue
'Code' LED light up.
2. Now press the number button on the remote you want the E-
Trans 100 to operate from and the 'Code' LED will flash as
well as the Rem 'RM' LED. The remote is now coded.
3. You can follow on with a second remote or press the same
remote again to exit code learn. Code learn will automatically
kick out after 5 seconds of inaction.
NOTE: If you code an E-Remote Lock button into either channel, it
will latch the relay when Lock button is pressed and unlatch the
relay when Unlock button is pressed. You will also see the Lock
and Unlock LED flash on the E-Remote.
T: +44 (0) 288 639 0 693
CODE LED = Blue
LP1, LP2, RM LEDs = Red
MENU LED = Yellow
