Remote Coding / Programming Routine
IMPORTANT: Every Firstech remote must be coded to the system prior to performing any operations. All remotes must be coded at the same time.
STEP 1: Activate Valet/Programming mode by manually turning the ignition key on and off (between the Acc & On positions) five times within 7 seconds. The
vehicle’' s parking lights will flash once with the successful completion of this step.
STEP 2: Within a 2 second period after cycling the ignition for the 5th time, pressing the single button once for 0.5 seconds. The parking lights will flash once
to confirm the transmitter has been coded.
Exiting Programming: Programming is a timed sequence. The parking lights will flash twice signaling the end of
programming mode.
Programming Multiple Remotes: After the confirmation flash given in step 2, code additional remotes by pressing
the single button on remote. The parking lights will flash once confirming each additional remote. All systems can
recognize up to three remotes.
By Firstech, LLC
8
Remote Start Error Diagnostic
If the remote start fails to start the vehicle, the parking lights will flash three times immediately. Following those three flashes the parking lights will flash again
corresponding to the error table. AR601-S system only have error codes 1, 2, and 6
Number of Parking Light Flashes
Remote Start Error
1
Motor running
2
Key in ignition on position
3
Door open (manual transmission only)
4
Trunk open
5
Foot brake on
6
Hood open
7
Reservation off (manual transmission only)
8
Tach or voltage sensing failure
We recommend that you do not attempt any repairs on your remote starter. Contact your dealer or call us directly.
9
By Firstech, LLC
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the 1BR-AM and is the answer not in the manual?
Questions and answers

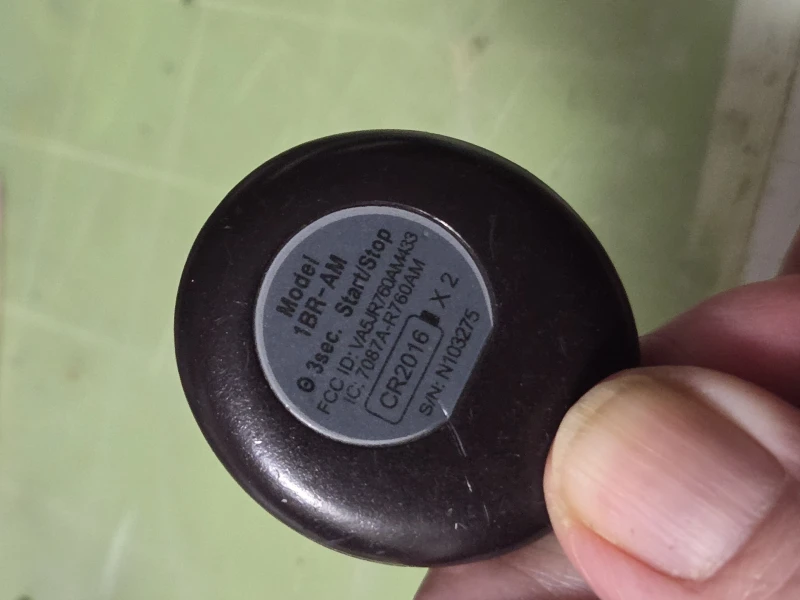

My remote start will no longer start my car. Goes through all the motions of starting but no start. Lights blink three times indicating receiving signal then pauses and gives 10 blinking lights afterwards
