Summary of Contents for Chauvet Geyser RGB JR

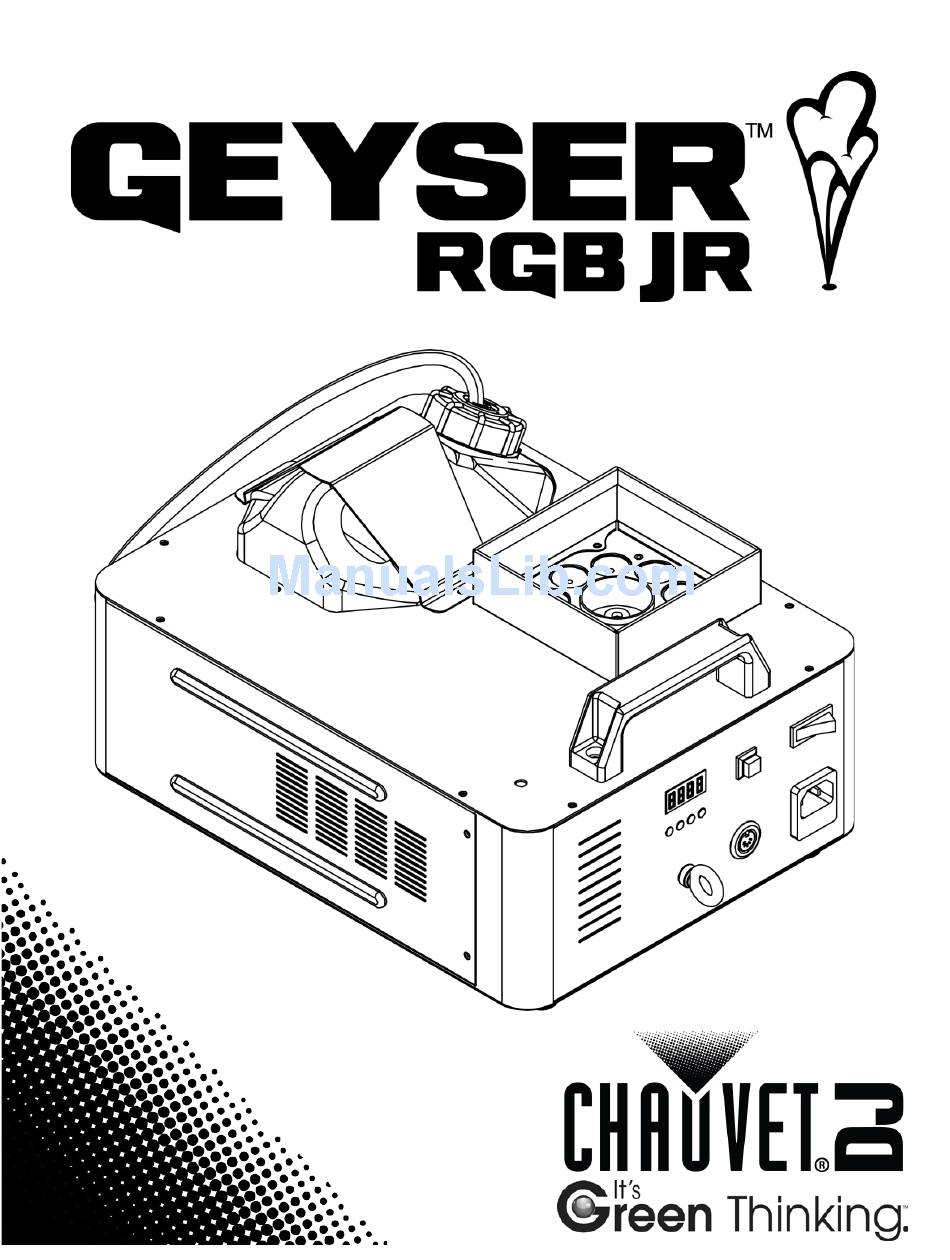

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What is Included ..........................3 Unpacking Instructions ........................3 Claims ............................... 3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance .......................... 4 Safety Notes ............................. 4 2. -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1–512... -
Page 4: Product At A Glance
· Fog Cleaner Quart (FCQ) was specifically developed by CHAUVET® to clean your Geyser™ RGB Jr. Make sure you use FCQ regularly to increase the life of your fogger. Page 4 of 15... -
Page 5: Introduction
2. I NTRODUCTION Overview Fluid Tank Manual Fog Nozzle and LEDs Button On/Off Switch Handles LED Display Remote Control Control Receiver Port Power In Buttons Safety Eye Loop Fuse Holder Geyser™ RGB Jr. User Manual Rev. 2 Page 5 of 15... -
Page 6: Dimensions
Dimensions 16.04 in (407.5 mm) 10.39 in (264 mm) 2.39 in (60.8 mm) 7.55 in (191.9 mm) Page 6 of 15 Geyser™ RGB Jr. User Manual Rev. 2... -
Page 7: Setup
3. S ETUP AC Power The Geyser™ RGB Jr. has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in Safety Notes. Orientation Primarily, the Geyser™ RGB Jr. is to be floor mounted in a vertical fog jet orientation. Alternatively, it may also be mounted in a floor mounting/horizontal fog jet orientation or in an overhead mounting/downward fog jet orientation;... - Page 9 Mounting Clamps for the Geyser™ RGB Jr. (works with CLP-15 or CLP-15N clamp from TRUSST® CHAUVET®) Safety Cable for (or other elevated the Fluid Tank platform or truss) Alternate Inverted Truss Mounting The Fluid Tank in an upright position Safety Cable Overhead Mounting –...
-
Page 10: Tank Inversion For Inverted Mounting
Tank Inversion for Inverted Mounting Remove the screws and the bottle lock to take out the tank. Bottle Lock Turn the fog machine upside down and remove the screws to take off the removable plate. Removable Plate Attach the removable plate to the opposite side and secure the tank with the bottle lock. -
Page 11: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Selects an operation mode or to backs out of the current menu option <UP> Scrolls up the list of options or selects a higher value <DOWN>... -
Page 12: Configuration (Standalone)
Configuration Set the product without a DMX controller. Connect the product to a suitable power outlet. (Standalone) Turn the product on. Wireless Remote To trigger fog output and activate the color program using the wireless remote control, do the following: Control Plug the wireless receiver into the Remote Control Receiver port on the side of the Geyser™... -
Page 13: Technical Information
NFORMATION Fogger Do not allow the fogger to become clogged. After every 40 hours of continuous operation, use CHAUVET® Fog Cleaner Quart (FCQ) through the system to prevent the Maintenance accumulation of particulate matter in the heating element. The recommended cleaning procedure is as follows. -
Page 14: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 16.04 in (407.5 mm) 10.39 in (264 mm) 7.55 in (191.9 mm) 16 lb (7.3 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power... -
Page 15: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
