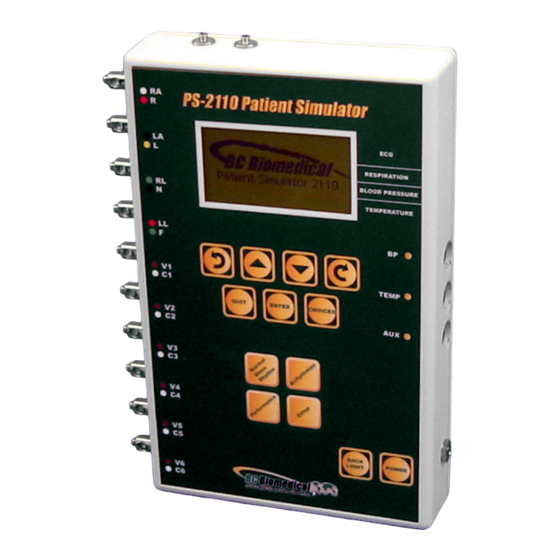

BC Biomedical PS-2110 User Manual

Multi-parameter patient simulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

MULTI-PARAMETER
PATIENT SIMULATOR
PS-2110
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for BC Biomedical PS-2110

Summary of Contents for BC Biomedical PS-2110

  • Page 1 MULTI-PARAMETER PATIENT SIMULATOR PS-2110 USER MANUAL...

  • Page 3: Table Of Contents

    BC BIOMEDICAL PS-2110 TABLE OF CONTENTS WARNINGS ......................... 2 DESCRIPTION......................3 OVERVIEW ........................7 ECG--NORMAL SINUS RHYTHM................15 ECG--ARRHYTHMIAS ....................17 ECG--PERFORMACE....................21 BLOOD PRESSURE ....................23 RESPIRATION ......................25 TEMPERATURE ......................27 SETUP ......................... 29 POWER UP SETTINGS....................33 (OPTION)......................

  • Page 4: Warnings

    PERFORMANCE AND TO SUPPLY THE BEST POSSIBLE PRODUCT. THE INFORMATION IN THIS MANUAL HAS BEEN CAREFULLY CHECKED AND IS BELIEVED TO BE ACCURATE. HOWEVER, NO RESPONSIBILITY IS ASSUMED FOR INACCURACIES. Manual PS-2110 Copyright © 2004 www.bcgroupintl.com Made in the USA...
  • Page 5 BC BIOMEDICAL PS-2110 PATIENT SIMULATOR The Model PS-2110 is a Microprocessor based Patient Simulator. It provides ECG, Blood Pressure, Respiration and Temperature Simulation. There are 12 arrhythmias, a pacemaker rhythm, a Fetal/Maternal rhythm, seven waveforms with constant QRS duration and 12 machine performance testing waveforms.
  • Page 6 PS-2110 ECG FUNCTIONS The unit can produce a wide variety of ECG simulations. The user simply selects the parameters that match the desired output. • RATE: 30,60,80,120,180,240,300 BPM • AMPLITUDE: 0.5,1.0,1.5,2.0 mV (Lead II) • AUTOMATIC MODE PACEMAKER FUNCTION A pacemaker waveform may be simulated.

  • Page 7: Description

    Description ECG-PERFORMANCE FUNCTIONS The unit will generate Sine, Square and Triangular waveforms with adjustable amplitudes for performance testing. A special Automatic mode is available to auto sequence through the entire range of waveforms. • SINE: 0.1, 0.5, 5, 10, 40, 50, 60,100 Hz •...
  • Page 8 PS-2110 BLOOD PRESSURE Both static and dynamic invasive pressures are simulated. In the static mode the BP output is fixed at the selected level or sequenced through the list using the Automatic mode selection. In the Dynamic mode the selected waveform is synchronized with the ECG and provides a continuous output.

  • Page 9: Overview

    OVERVIEW This section looks at the layout of a PS-2110 and gives descriptions of the elements that are present. Lead Continuity Test Connections LCD Graphical 10 Universal Display: Patient Lead Shows Parameters for Connectors: ECG, Respiration, Blood Pressure and RL(-) N...
  • Page 10 PS-2110 General Operation The unit is controlled by 13 light touch keys. They allow the user to move around within the displayed parameters, select the desired options, choose a specific category and control the setup and power for the unit. When a key is depressed there is an audio click when it is accepted, or a razz tone if the key is invalid.
  • Page 11 Overview key opens a screen that allows the user to select the unit’s general output settings, as well as setup for the system. Category Keys The category, keys can be used to select ECG waveforms. key enters the NSR category and gives access to the seven BPM (Beats Per Minute) settings with constant QRS duration.
  • Page 12 PS-2110 Backlight The Graphic LCD display may be viewed with or without the backlight. Depressing any key will activate the backlight. However, since the backlight will drain the battery if left on, it will automatically shut off after a few seconds when running on battery power. (Note: This time is selectable in the System Setup screen).
  • Page 13 Overview Respiration Respiration waveforms are provided that have adjustable rates from 15 to 120 BrPM (Breaths Per Minute) as well as an Apnea (0 BrPM) setting. The signal is generated by a variation in the impedance in either the LL or LA lead (selectable). The amplitude is settable from .5 to 3.0 ohms.
  • Page 14 PS-2110 Universal Patient Lead Connectors The 10 Universal Patent Lead Connectors allow for 12 lead ECG simulation with independent outputs. AHA and IEC color-coded labels are located on the face of the unit to aid in connecting the corresponding U.S. and International Patient Leads.
  • Page 15 Overview Auto Power Off The unit may be programmed to automatically turn off after a selected number of minutes of no key activity to conserve the battery. (Note: This time is selectable in the System Setup screen). Power Supply The unit utilizes two 9 Volt Alkaline Batteries in the rear battery compartment. When the unit detects a LOW BATTERY condition (5% Battery Life), a warning window will appear once per minute to alert the user.
  • Page 16 PS-2110 Automatic Modes The ECG NSR Rate, ECG Performance and Static Blood Pressure Parameters all allow for an automatic setting. In each of these, the unit will sequence through the full range of settings automatically at a fixed rate (as selected in the Auto Step Time Parameter). When in this mode, the time remaining in each step is displayed.

  • Page 17: Ecg--Normal Sinus Rhythm

    ECG – NORMAL SINUS RHYTHM The PS-2110 can send waveforms to ECG machines in 3, 5 or 12 lead configurations. It has independent outputs for each signal lead, referenced to the right leg. Normal Sinus Rhythm (NSR) occurs when the heartbeat is normal, beating at a rate between 50 and 100 BPM with a standard QRS waveform shape and height.
  • Page 18 PS-2110 Alternately, to see a submenu of all the options for a highlighted parameter, use to scroll to the desired option. Then is used to accept the new setting. Auto Rate If the BPM parameter is set to AUTO, the unit will automatically sequence through all of the BPM settings, starting with 30 BPM, incrementing at a fixed interval.

  • Page 19: Ecg--Arrhythmias

    ECG – ARRHYTHMIAS The PS-2110 can send arrhythmia waveforms to ECG machines in 3, 5 or 12 lead configurations. It has independent outputs for each signal lead, referenced to the right leg. There are 12 Arrhythmias available that model abnormal heartbeats, plus Paced and Fetal/Maternal.
  • Page 20 PS-2110 The arrhythmias and amplitude can be selected by using to highlight the parameter to change and using to scroll to the desired option. Then is used to accept the new setting. Alternately, to see a submenu of all the options for a highlighted parameter, use to scroll to the desired option.
  • Page 21 Arrhythmias The following is a brief description of how the PS-2110 simulates the available Arrhythmias: Abbreviation Arrhythmia Description Absence of P-wave and irregular P-R Atrial Fibrillation Atrial Fib interval rate (Continuous) 80 BPM with increasing P-R interval Deg Heart for four beats (160, 220, 400, 470 ms)
  • Page 22 PS-2110 (Continuous) NSR of 80 BPM with Type 1 and Type Multifocal Multifocal 2 PVCs (PVC Type 1, 2 NSR, PVC Premature Ventricular Contractions TYPE 2) PVCS – Man (One-Time event) NSR of 80 BPM with every other beat Bigeminy...

  • Page 23: Ecg--Performace

    ECG – PERFORMANCE The PS-2110 can send performance waveforms to ECG machines in 3, 5 or 12 lead configurations. It has independent outputs for each signal lead, referenced to the right leg. There are 11 Performance waves available for testing and verifying. The PS-2110 is placed into PERFORMANCE mode by pressing the category key.
  • Page 24 PS-2110 Alternately, to see a submenu of all the options for a highlighted parameter, use to scroll to the desired option. Then is used to accept the new setting. NOTE: Respiration and Blood Pressure outputs are disabled during performance waves.

  • Page 25: Blood Pressure

    (See SETUP for selection information). The PS-2110 offers one Blood Pressure Channel and will simulate the set Blood Pressure wave during ECG waveforms where it occurs. There are 14 Blood Pressure settings available. Each of the six dynamic waveforms will synchronize with the NSR rate or arrhythmia selection.
  • Page 26 PS-2110 These settings can be selected by using to highlight the parameter to change and using to scroll to the desired option. Then is used to accept the new setting. Alternately, to see a submenu of all the options for a highlighted parameter, use to scroll to the desired option.

  • Page 27: Respiration

    RESPIRATION NOTE: The delta ohm Respiration Signal can be inserted in either the LL or LA lead. The Baseline impedance can be set to either 500 or 1000 Ohms. These must be set to correlate with the monitoring equipment before simulation can begin. (See SETUP for selection information).
  • Page 28 PS-2110 These rates and Impedance Variations can be selected by using highlight the parameter to change and using to scroll to the desired option. Then is used to accept the new setting. Alternately, to see a submenu of all the options for a highlighted parameter, use to scroll to the desired option.

  • Page 29: Temperature

    TEMPERATURE The PS-2110 simulates 3 temperatures that are independent from the rest of the functions of the unit. The temperature setting can be selected at any time. The output will simulate both YSI 400 and YSI 700 Temperature probes. (Note: Both outputs are available at the output connector simultaneously.)
  • Page 30 PS-2110 This page intentionally left blank.

  • Page 31: Setup

    SETUP The PS-2110 allows for setup of the Outputs and the System Parameters through the category key. Depressing the key multiple times toggles between the Output and System Setup screens. The Output Setup screen allows for the setting of the SpO Output, Respiration Baseline Ohms, Respiration Lead and the Blood Pressure Sensitivity parameters.
  • Page 32 PS-2110 System Setup The System Setup screen allows for the setting of the parameters controlling various function of the unit as well as the viewing of Battery Life and Software information. The display will resemble the following: These settings can be selected by using...
  • Page 33 Setup The following is a brief description of the parameters and the available range of settings: Parameter Description Range The elapsed time after which the unit will automatically power down. This Auto Off Timer timer is reset by each key depression. 0-30 min (Setting the value to 0 eliminates this feature.)
  • Page 34 PS-2110 This page intentionally left blank.

  • Page 35: Power Up Settings

    POWER UP SETTINGS The PS-2110 allows the user to tailor the settings that the unit will have on Power Up. The “Power Up With” parameter in the System Setup Menu allows for the selection of either Default, Last or Custom selections.
  • Page 36 PS-2110 Last If this option is selected, the unit will remember the settings that were being used when it was turned off and bring them back when the power is turned on. Custom If this option is selected, the user may save a unique set of default parameters and the unit will recall them every time the power is turned on.

  • Page 37: Spo 2 (Option)

    (Option) The PS-2110 has the ability to drive an external SpO module. This module (MSP-2100) accepts the FingerSim family of SpO finger simulators (fingers are available with SpO 80, 90 and 97 %). The output pulses the fingers at the NSR BPM rate. The output is off in Arrhythmia and Performance Modes.
  • Page 38 PS-2110 This page intentionally left blank.

  • Page 39: Output Connections

    OUTPUT CONNECTIONS The following are representations of the socket connectors found on the unit. They are viewed as if looking at the socket in the unit, not the cable pins.
  • Page 40 PS-2110 This page intentionally left blank.

  • Page 41: Manual Revisions

    MANUAL REVISIONS Revision # Program # Revisions Made Rev 01 DT7346 Origination Rev 02 DT7346 Preliminary Manual Rev 03 DT7346 Updates to Preliminary Manual Rev 04 DT7346 Overlay Additions LIMITED WARRANTY : BC GROUP INTERNATIONAL, INC. WARRANTS ITS NEW PRODUCTS TO BE FREE WARRANTY FROM DEFECTS IN MATERIALS AND WORKMANSHIP UNDER THE SERVICE FOR WHICH THEY ARE INTENDED.
  • Page 42 PS-2110 This page intentionally left blank.

  • Page 43: Specifications

    SPECIFICATIONS ECG NSR Rate 30,60,80,120,180,240,300 BPM Accuracy +/- 1% Amplitude 0.5, 1.0, 1.5, 2.0 mV Accuracy +/- 2% @ Lead II High Level 200 times Amplitude Accuracy +/- 5% ECG Performance Sine Wave 0.1,0.5,5,10,40,50,60,100 Hz Square Wave 0.125, 2.000 Hz Triangle Wave 2.000 Hz Rate Accuracy...
  • Page 44 PS-2110 Respiration Apnea,15,20,30,40,60,80,100,120 Rate BrPM Accuracy +/- 1% Impedance delta 0.1,0.2,0.5,1.0,2.0,3.0 ohms Accuracy +/- 10% Baseline 500,1000 ohms Accuracy +/- 5% Lead LA or LL Temperature Temperature 30,37,40 C (86.0,98.6,104.0 F) Accuracy +/- 0.1 C Type YSI Series 400 and 700...
  • Page 45 Specifications Physical DISPLAY LCD Graphical 128 X 64 Pixels, Backlit 8.625 x 5.5 x 1.625 Inches ENCLOSURE (216 x 140 x 41 mm) ABS Plastic < 2 Lbs WEIGHT (< 0.91 Kg) FACE PLATE Lexan, Back printed OPERATING RANGE 15 to 40 C STORAGE RANGE -20 to 65 C Electrical...
  • Page 46 PS-2110 This page intentionally left blank.

  • Page 47: Notes

    NOTES...
