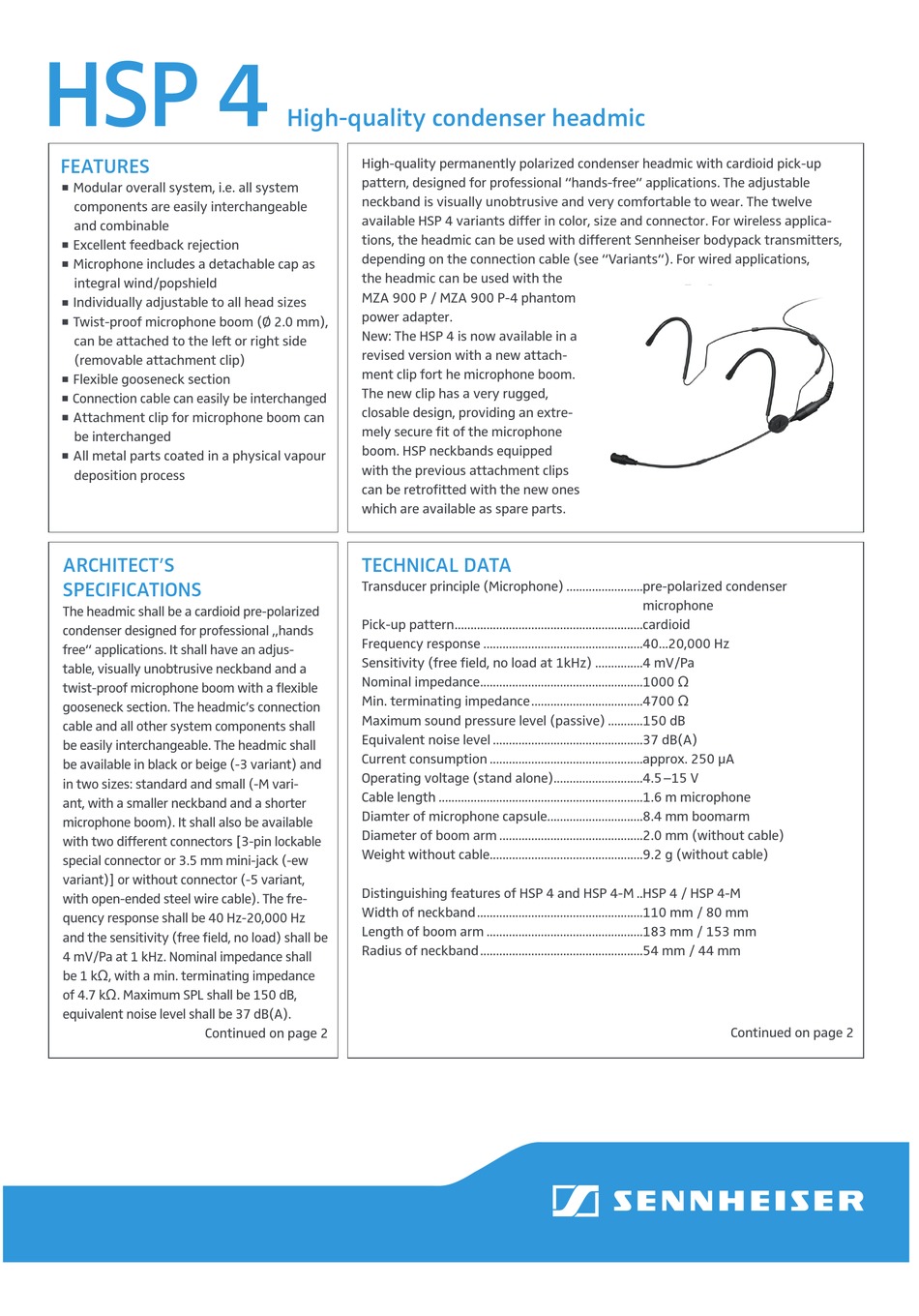

Sennheiser HSP 4 Brochure & Specs

HSP 4
FEATURES
Modular overall system, i.e. all system
components are easily interchangeable
and combinable
Excellent feedback rejection
Microphone includes a detachable cap as
integral wind/popshield
Individually adjustable to all head sizes
Twist-proof microphone boom (Ø 2.0 mm),
can be attached to the left or right side
(removable attachment clip)
Flexible gooseneck section
Connection cable can easily be interchanged
Attachment clip for microphone boom can
be interchanged
All metal parts coated in a physical vapour
deposition process
ARCHITECT'S

SPECIFICATIONS

The headmic shall be a cardioid pre-polarized
condenser designed for professional „hands
free" applications. It shall have an adjus-
table, visually unobtrusive neckband and a
twist-proof microphone boom with a flexible
gooseneck section. The headmic's connection
cable and all other system components shall
be easily interchangeable. The headmic shall
be available in black or beige (-3 variant) and
in two sizes: standard and small (-M vari-
ant, with a smaller neckband and a shorter
microphone boom). It shall also be available
with two different connectors [3-pin lockable
special connector or 3.5 mm mini-jack (-ew
variant)] or without connector (-5 variant,
with open-ended steel wire cable). The fre-
quency response shall be 40 Hz-20,000 Hz
and the sensitivity (free field, no load) shall be
4 mV/Pa at 1 kHz. Nominal impedance shall
be 1 kO, with a min. terminating impedance
of 4.7 kO. Maximum SPL shall be 150 dB,
equivalent noise level shall be 37 dB(A).
Continued on page 2
High-quality condenser headmic
High-quality permanently polarized condenser headmic with cardioid pick-up
pattern, designed for professional "hands-free" applications. The adjustable
neckband is visually unobtrusive and very comfortable to wear. The twelve
available HSP 4 variants differ in color, size and connector. For wireless applica-
tions, the headmic can be used with different Sennheiser bodypack transmitters,
depending on the connection cable (see "Variants"). For wired applications,
the headmic can be used with the
MZA 900 P / MZA 900 P-4 phantom
power adapter.
New: The HSP 4 is now available in a
revised version with a new attach-
ment clip fort he microphone boom.
The new clip has a very rugged,
closable design, providing an extre-
mely secure fit of the microphone
boom. HSP neckbands equipped
with the previous attachment clips
can be retrofitted with the new ones
which are available as spare parts.

TECHNICAL DATA

Transducer principle (Microphone) ........................ pre-polarized condenser
Pick-up pattern ...........................................................cardioid
Frequency response ..................................................40...20,000 Hz
Sensitivity (free field, no load at 1kHz) ...............4 mV/Pa
Nominal impedance ...................................................1000 O
Min. terminating impedance ...................................4700 O
Maximum sound pressure level (passive) ...........150 dB
Equivalent noise level ...............................................37 dB(A)
Current consumption ................................................approx. 250 µA
Operating voltage (stand alone)............................4.5 –15 V
Cable length ................................................................1.6 m microphone
Diamter of microphone capsule..............................8.4 mm boomarm
Diameter of boom arm .............................................2.0 mm (without cable)
Weight without cable................................................9.2 g (without cable)
Distinguishing features of HSP 4 and HSP 4-M ..HSP 4 / HSP 4-M
Width of neckband ....................................................110 mm / 80 mm
Length of boom arm .................................................183 mm / 153 mm
Radius of neckband ...................................................54 mm / 44 mm
microphone
Continued on page 2
