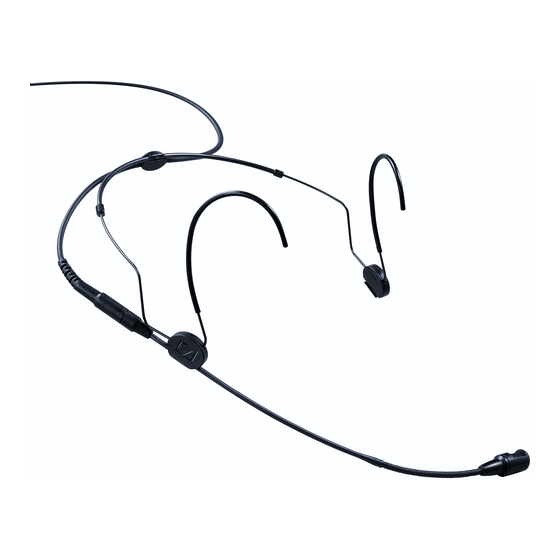

Sennheiser HSP 4 Instructions For Use Manual
Sennheiser headphones - headset/microphone user manual
Hide thumbs
Also See for HSP 4:
- Instruction manual (77 pages) ,
- Bedienungsanleitung (29 pages) ,
- Brochure & specs (3 pages)
Related Manuals for Sennheiser HSP 4
Summary of Contents for Sennheiser HSP 4
- Page 1 HSP 2 HSP 4 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones de uso Gebruiksaanwijzing...
-
Page 2: Table Of Contents
Sennheiser a world-leading company in this field. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser products quickly and to the fullest. -
Page 3: Safety Instructions
Safety instructions • Please read these instructions carefully and completely before using the device. • Make these instructions easily accessible to all users at all times. • Always include these instructions when passing the device on to third parties. • Water entering the housing of the device can cause a short- circuit and damage the electronics. -
Page 4: Delivery Includes
Delivery includes Delivery of the HSP 2/HSP 4 includes: 1 boom microphone 1 neckband 5 clips 1 silicone tube 1 connection cable 1 plastic transport case, foam-lined with cut-outs 1 windshield (HSP 4 only) 2 caps, short and long (HSP 2 only) -
Page 5: Hsp 2/Hsp 4
The 24 available HSP variants differ in size, color and connector (see “HSP 2 cable variants” on page 11 and “HSP 4 cable variants” on page 17). There are two pick-up patterns available: •... -
Page 6: Putting The Hsp 2 Into Operation
Putting the HSP 2 into operation The HSP 2 is ready for operation on delivery. The microphone can be worn on the left or right side of the mouth. If you do to change sides, continue on page 7. Attaching the microphone to the left or right side The neckband has as a clip which is designed so that the microphone boom can be worn on either side of the mouth. - Page 7 To reattach the microphone boom: First press the microphone boom and then the neckband into the clip as shown. Close the clip.
-
Page 8: Adjusting The Microphone Boom And The Neckband
Adjusting the microphone boom and the neckband For best possible comfort and optimum fit of the headmic, the neckband and the microphone boom have to be adjusted to properly fit your head. CAUTION! Damage to the microphone boom! The microphone boom can break or be impaired in its function when you bend or turn it in the wrong place. - Page 9 Adjusting the neckband The neckband is flexible and ensures an optimum fit. Change the length of the neckband until a snug but comfortable fit is achieved. If necessary, adjust the neck- band at the earhooks. Attaching the cable to the cable grip Attach the microphone cable to the cable grip in the centre...
-
Page 10: Windshields For The Hsp 2
Windshields for the HSP 2 The quality of outdoor recordings and close miking can be impaired by wind noise. An effective attenuation of wind noise can be » obtained by using the MZW 2 and the MZW 02 windshields. To begin with, use the MZW 2 windshield which reduces wind noise by a maximum of 20 dB. -
Page 11: Treble Boost Using The Frequency Response Caps
Treble boost using the frequency response caps Your HSP 2 headmic is supplied with two different frequency response caps. These caps allow you to adjust the microphone’s sensitivity in the presence area (see “Frequency response curve HSP 2” on page 24): •... -
Page 12: Hsp 2 Cable Variants
The headmics are available in two sizes. The -M variants have smaller neckbands and shorter microphone booms. Connection cable with 3-pin lockable special connector Suitable for Sennheiser SK 50, SK 250, SK 5012 and SK 3063 bodypack transmitters. HSP 2... -
Page 13: Putting The Hsp 4 Into Operation
Putting the HSP 4 into operation The HSP 4 is ready for operation on delivery. The microphone can be worn on the left or right side of the mouth. If you do to change sides, continue on page 14. Attaching the microphone to the left or right side... - Page 14 To reattach the microphone boom: First press the microphone boom and then the neckband into the clip as shown. Close the clip.
-
Page 15: Adjusting The Microphone Boom And The Neckband
Adjusting the microphone boom and the neckband For best possible comfort and optimum fit of the headmic, the neckband and the microphone boom have to be adjusted to properly fit your head. CAUTION! Damage to the microphone boom! The microphone boom can break or be impaired in its function when you bend or turn it. -
Page 16: Attaching The Sound Inlet Basket
Attaching the sound inlet basket Notes: – Do not position the microphone directly in front of your mouth as it will pick up your breathing and plosive noises from your mouth. In addition, moisture can adversely affect the sound and performance of your microphone. –... -
Page 17: Attaching The Cable To The Cable Grip
Attaching the cable to the cable grip Attach the microphone cable to the cable grip in the centre of the neckband. Note: When attaching the thin cable, make sure you also press the small cable sleeve into the cable grip or the cable will fall out. -
Page 18: Hsp 4 Cable Variants
The headmics are available in two sizes. The -M variants have smaller neckbands and shorter microphone booms. Connection cable with 3-pin lockable special connector Suitable for Sennheiser SK 50, SK 250, SK 5012 and SK 3063 bodypack transmitters. HSP 4... -
Page 19: Care And Maintenance
Only use a soft, slightly damp cloth to clean the device. Cleaning the sound inlet basket (HSP 4 only) To clean or replace the sound inlet basket, carefully pull it from the capsule. Moisten a small brush (bristle brush or toothbrush) with isopropyl alcohol. - Page 20 Cleaning the contacts of the connection cable Over time, salt deposits from sweat can build up on the connector and the socket. Clean the connector and the socket using standard isopropyl alcohol. To loosen the connection: Slide the silicone tube aside. Insert your fingernail into the join.
- Page 21 Dry the connector and the socket using a soft cloth or a small piece of cotton wool and carefully tap them off. Allow the connector and the socket to air dry for approx. 1 hour so that the remaining isopropyl alcohol can evaporate. Slide the silicone tube onto the connector.
-
Page 22: Accessories/Spare Parts
Accessories/spare parts The following accessories and/or spare parts are available for the HSP 2 / HSP 4: Spare parts for HSP 2 Parts Boom microphone, omni-directional, beige Boom microphone, omni-directional, anthracite HSP-M boom microphone, omni-directional, anthracite 515280 HSP-M boom microphone, omni-directional, beige... - Page 23 MZW 4 foam windshield, black MZW 4 foam windshield, beige Set of clips for HSP 4, beige Set of clips for HSP 4, black Spare parts for HSP 2 and HSP 4 Parts Neckband, anthracite Neckband, beige HSP-M neckband, anthracite...
-
Page 24: Specifications
Specifications Specifications HSP 2/HSP 2-M Frequency response Pick-up pattern Nominal impedance (at 1 kHz) Min. terminating impedance 4.7 kΩ Sensitivity Diameter of mic capsule Max. sound pressure level Equivalent noise level Supply current Power supply Operating temperature Cable length Diameter of boom arm Weight HSP 2/HSP 2-M Connector Neckband... - Page 25 Polar diagram HSP 2 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve HSP 2 - 35 - 40 - 45 - 50 - 55 - 60 - 65 - 70 without cap with MZC 2-1 cap, short with MZC 2-2 cap, long 0°...
-
Page 26: Specifications Hsp 4/Hsp 4-M
8.4 mm 150 dB 37 dB (A) approx. 250 μA 4.5 − 15 V –10 °C to +50 °C 1.6 m 2.0 mm 4.8 g/4.0 g see “HSP 4 cable variants” on page 17 110 mm/80 mm 4.4 g/4.0 g... - Page 27 Polar diagram HSP 4 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve HSP 4 - 35 - 40 - 45 - 50 - 55 - 60 - 65 - 70 0°, 1 m 0°...
-
Page 28: Manufacturer Declarations
CE Declaration of Conformity This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The declaration is available on the Internet at www.sennheiser.com. WEEE Declaration Please dispose of this product at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment. - Page 29 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany Phone +49 (5130) 600 0 Printed in Germany Fax +49 (5130) 600 300 Publ. 01/08 www.sennheiser.com 527045/A01...
