Page 1: User Manual
KR AMER ELECTRON ICS LT D. USER MANUAL MODEL: Power Amplifier P/N: 2900-000684 Rev 2... -
Page 3: Table Of Contents
Overview Defining the 912 Power Amplifier Connecting the 912 Technical Specifications Figures Figure 1: 912 Power Amplifier Front and Rear Panels Figure 2: Connecting the 912 Power Amplifier 912 – Contents... -
Page 4: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 912 Power Amplifier, which is ideal for the following typical applications: •... -
Page 5: Getting Started
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer 912 away from moisture, excessive sunlight and dust 912 - Getting Started... -
Page 6: Overview
Overview The Kramer 912 is a high performance power amplifier that can accept a balanced stereo audio input on a 5-pin terminal block, and an unbalanced stereo audio input on two RCA connectors. Both inputs can be connected simultaneously. The balanced and unbalanced stereo audio inputs are converted to a differential stereo audio output for speakers on a 4-pin terminal block. -
Page 7: Figure 1: 912 Power Amplifier Front And Rear Panels

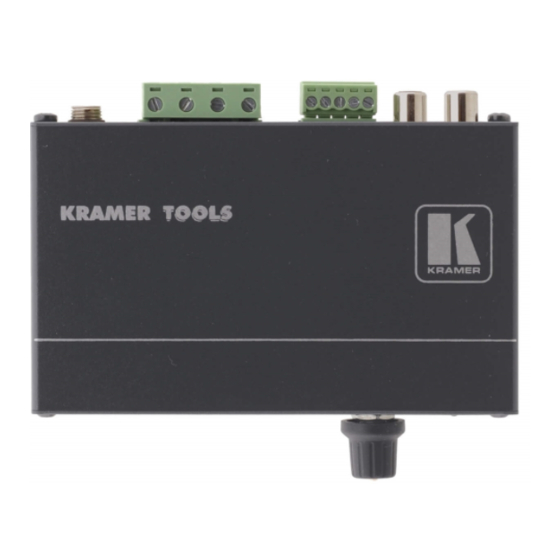

Figure 1: 912 Power Amplifier Front and Rear Panels Front and Rear Panel Features Feature Function CONTROL Button Press in for remote volume control using the 10V Control connection, release to control the volume using the front panel Volume knob (see item 2). -
Page 8: Connecting The 912
4. Select the volume control method using the CONTROL button on the front panel. Press CONTROL (10V position) to select the remote 10V volume control. 5. Connect the 12V DC power adapter to the 912 power socket and to the mains electricity (not shown in Figure 6. -
Page 9: Figure 2: Connecting The 912 Power Amplifier
Figure 2: Connecting the 912 Power Amplifier 912 - Connecting the 912... -
Page 10: Technical Specifications
12cm x 8.5cm x 2.5cm (4.7" x 3.4" x 1") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-3T 19” rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com 912 - Technical Specifications... - Page 11 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
