chapter 6
Making Hardware Connections
To hear audio recorded into a Pro Tools session,
you will need to connect headphones or an ex-
ternal sound system (such as powered monitors
or a home stereo) to Mbox 2 Pro. Sound from
Mbox 2 Pro cannot be played through your
computer's speakers or your computer's sound
output.

Connecting Headphones

On the front panel of the Mbox 2 Pro are two
1/4-inch headphone connectors, each with an
associated level control, labelled A and B. Con-
nect up to two sets of headphones for mixing
and tracking.
Headphone level (A, B)
1/4-inch
Headphone jacks (A, B)

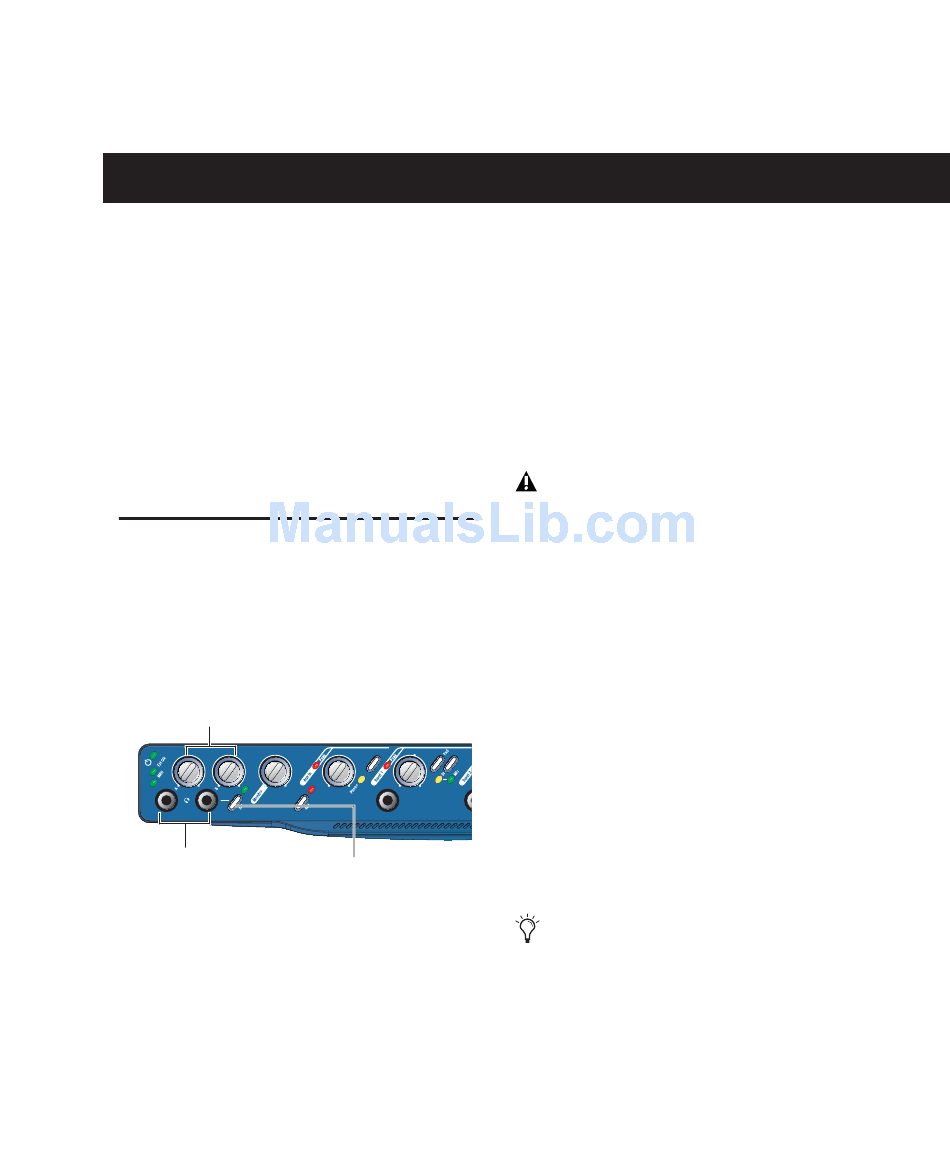

Headphone jacks and controls on front of Mbox 2 Pro
Headphone A monitors the Pro Tools main mix
outputs (usually output channels 1–2).
By default, Headphone B output mirrors the
Pro Tools channel 1–2 output being heard in the
Headphone A output. Whenever a discrete cue
mix is required for overdubbing, Headphone B
output can be switched to monitor output chan-
nels 3–4.
To connect headphones for mix monitoring:
■
connector (or adapter) to the Headphone A jack.
To connect headphones for selectable monitoring:
■
connector (or adapter) to the Headphone B jack.
To monitor channels 3–4 in Headphone B:
■
3–4 (Headphone B)
position).
Do not use the front panel headphone out-
puts for anything but headphones. If you
use a headphone distribution amp or cue
system, use any of the six available Line
Out channels on the back panel. See "Addi-
tional Analog Outputs" on page 34.
Connect headphones with a 1/4-inch stereo
Connect headphones with a 1/4-inch stereo
Press the 3–4 switch so that it is engaged ("in"
See the Pro Tools Reference Guide for infor-
mation on using signal routing, sends and
bussing to create cue mixes.
Chapter 6: Making Hardware Connections 33
