Mbox 2 Pro Back Panel Features

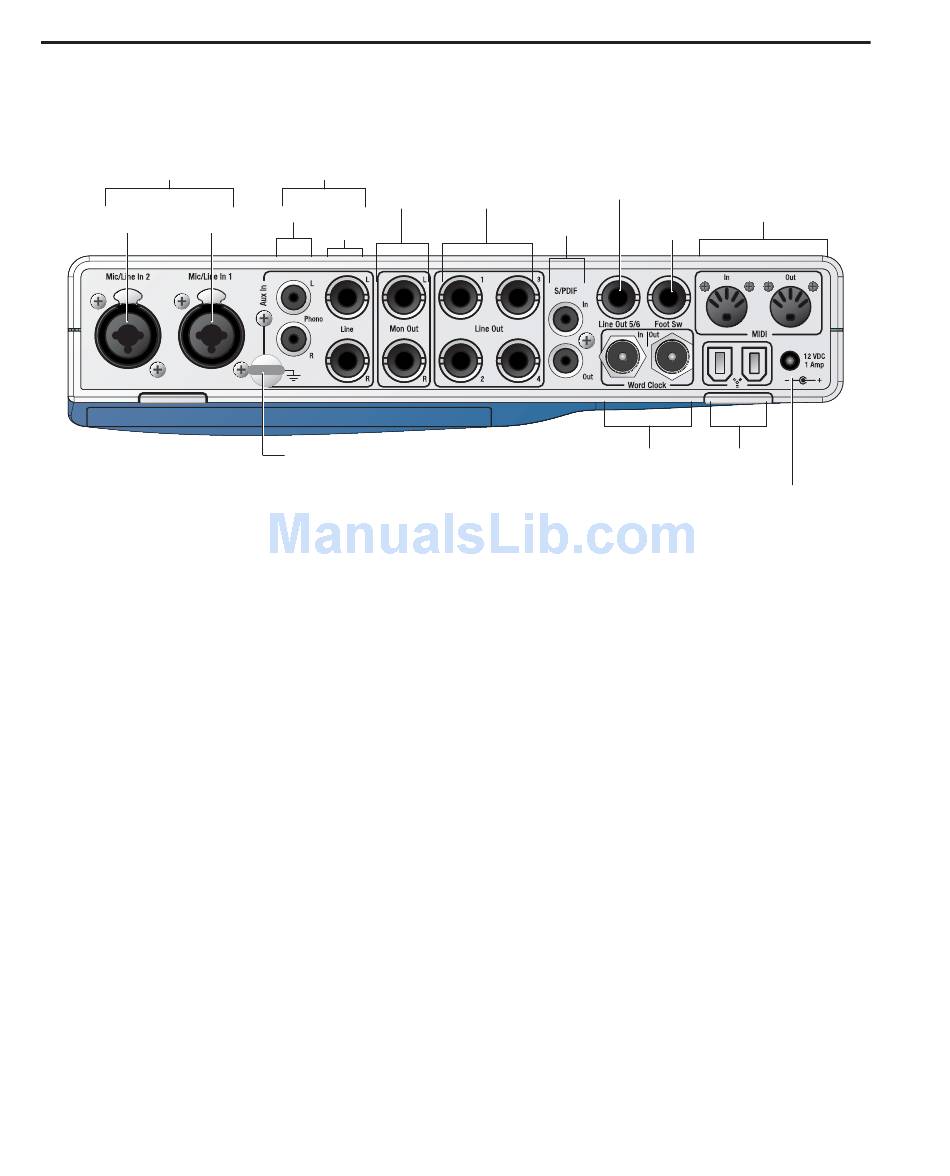

Figure 2 identifies each port on the Mbox 2 Pro back panel.
Inputs 1 and 2
Mic/Line 2 Mic/Line 1
Figure 2. Mbox 2 Pro back panel
The Mbox 2 Pro back panel has the following
features:
DC Power
This port supplies power to Mbox 2 Pro using
the included power supply. Though external
power is not always required, you should use ex-
ternal power if your 1394 bus is unable to pro-
vide enough power, or if you need to conserve
battery power in a portable computer. Two
power supplies are provided for use in various
locations. The International power supply is
auto-switching for use everywhere but North
America. If in North America, use the "US"
power supply.
30 Mbox 2 Pro Getting Started
Aux In (3–4)
Monitor
outputs
(1–2)
Phono In L/R
Line In L/R
Ground post
Line
Line Out
outputs
(5–6)
(1–4)
S/PDIF
digital I/O
Word clock
In/Out
FireWire (1394) Port
This standard FireWire 1394 connector is used
to connect your computer to Mbox 2 Pro. One
6-pin FireWire cable is included with
Mbox 2 Pro. The Mbox 2 Pro can be powered
solely through its 1394 connection to your com-
puter, or using an external power supply (in-
cluded with your system).
MIDI I/O
The MIDI In and MIDI Out ports are standard 5-
pin MIDI ports, each providing 16 channels of
MIDI input and output.
MIDI I/O
Footswitch
Firewire
Power
