9.4 Model transformations

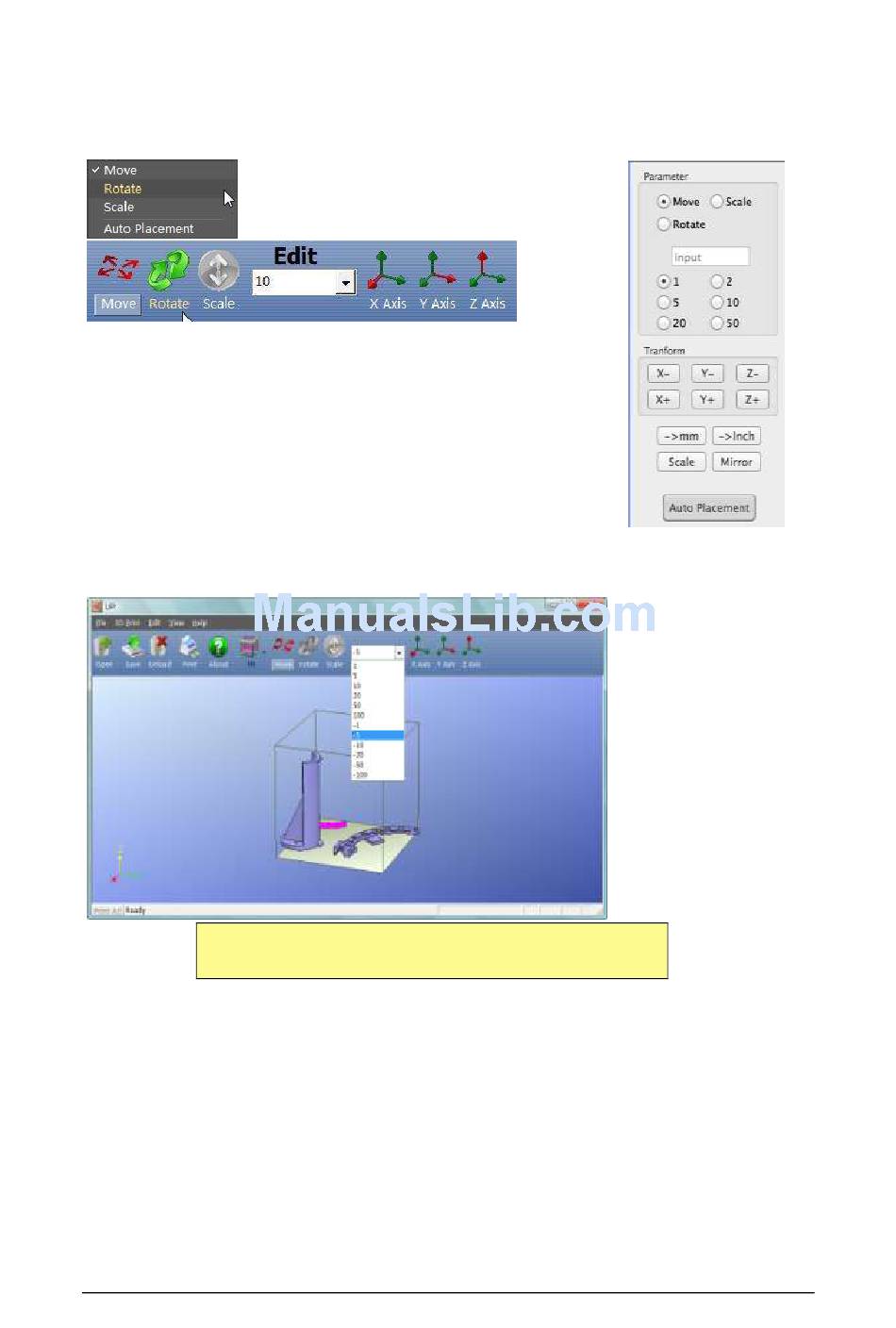

Model Transformation can be achieved through the Edit menu or the toolbar:
(Windows version)
Moving the model: Click the "Move" button and choose, or input, the
distance you want to move in the text box. Then choose the axis (di-
rection) in which you want to move. Each time you click the axis but-
ton the model will move again.
For example: Move the model -5mm along Z axis (or down 5mm).
Procedure: 1. Click on "Move"; 2. Input "-5" in the text box;
3. Click the "Z axis".
Tip: If you hold down the 'Ctrl' key, you can simply drag the
model to whatever position you want.
Rotating the model: Click the "Rotate" button on the toolbar, choose or input how many degrees you
want to rotate in the text box, then choose the axis to rotate around.
For example: Rotate the model around Y axis by 30
Procedure: 1. Click "Rotate"; 2. Input 30 in the text box；3. Click "Y axis".
Note: positive numbers rotate counter clockwise and negative numbers rotate clockwise.
UP Plus 2 3D Printer User Manual
o
.
v 2013.10.24
(Mac version)
