CHASSIS 1.0
last updated: 7/4/24

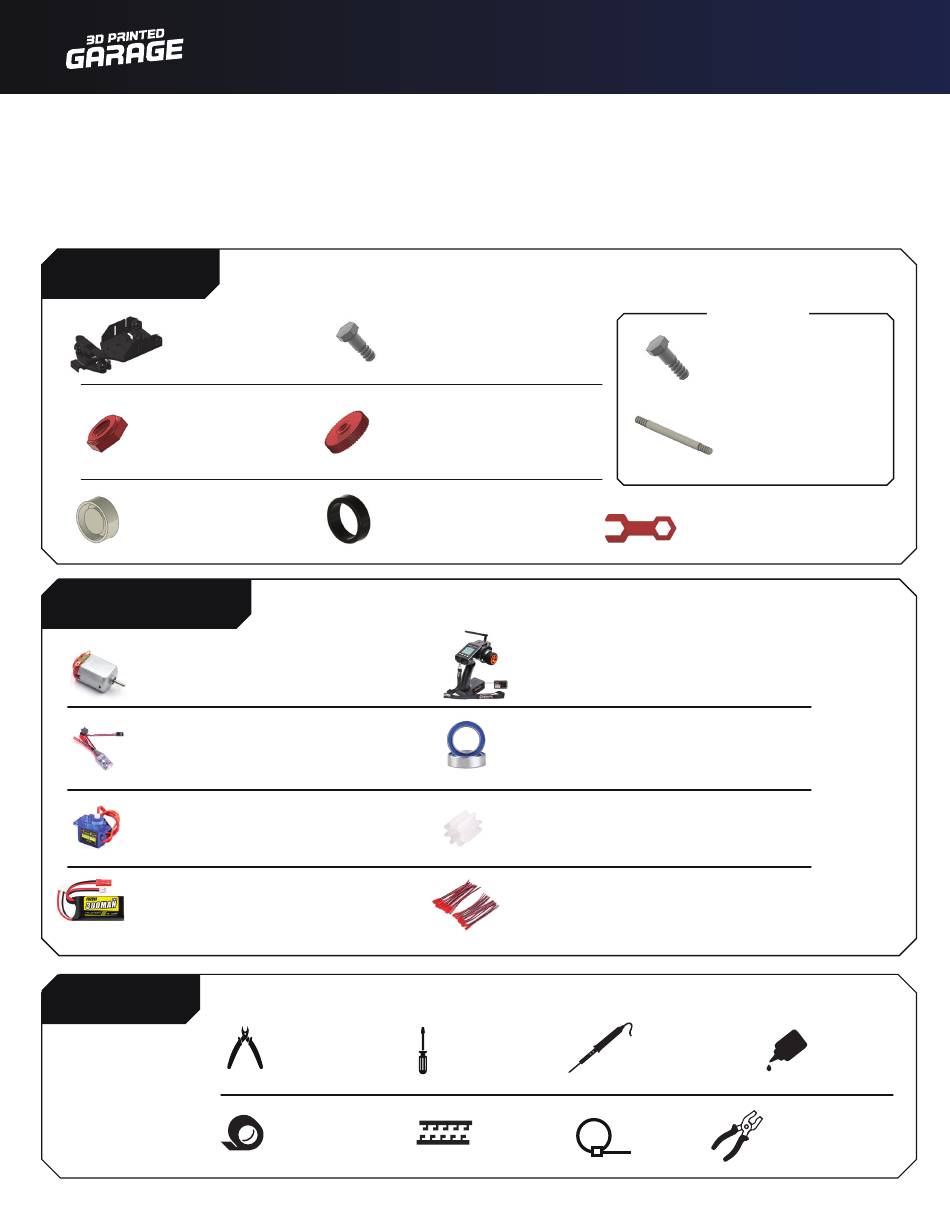

ITEMS TO PRINT
1x CHASSIS .STL
2x FRONT NUT.STL
4x WHEEL.STL
NON-PRINT ITEMS
1X OR 2X 6V DC MOTOR
1X 30A ESC W/ BRAKE
1X SERVO W/ SCREWS
1X 300 MAH LIPO BATTERY
TOOLS
REQUIRED
RECOMMENDED
This build guide will walk you through building a 3DPG chassis. Please begin
by printing and gathering the items listed below. Have fun and happy printing!
Printed in .2mm resolution. No supports required, brim recommended. PLA recommended for all parts except
for tires in TPU. For dual motor configuration, print 2 rear bolts. For single motor configuration, print 1 rear axle.
2x FRONT BOLT.STL
2x REAR NUT.STL
4x TIRE.STL
FLUSH CUTTER
DOUBLE SIDED
TAPE
(TPU)
1X TRANSMITTER/RECEIVER
6X OR 8X MR128 BALL BEARINGS
8-TOOTH SPUR GEAR
1X JST CONNECTOR
SCREWDRIVER
VELCRO
BUILD GUIDE
PICK ONE
2x REAR BOLT.STL
(FOR DUAL MOTOR)
1x REAR AXLE.STL
(FOR SINGLE MOTOR)
1x 3DPG WRENCH.STL
SOLDERING
IRON
ZIP TIE
PLIERS
SUPER
GLUE
1
