Gebrauchs- und Montageanleitung
Instructions for installation and use
Instructions de montage et d'emploi
Gebruiks-en montageaanwijzing
Istruzioni per l'installazione
Istrucciones para el montaje y el uso
Wichtig: Unbedingt lesen und aufbewahren!
Important: Read these instructions carefully and then store them in a safe place
Important: Lire attentivement et ranger soigneusemnt ce mode d'emploi
Belangrijk: Beslist lezen en bewaren!
Importante: E' necessario leggere attentamente queste istruzioni e conservarle con cura
Importante: Leerlas imprescindiblement y guardarlas
Integriertes Kühlgerät

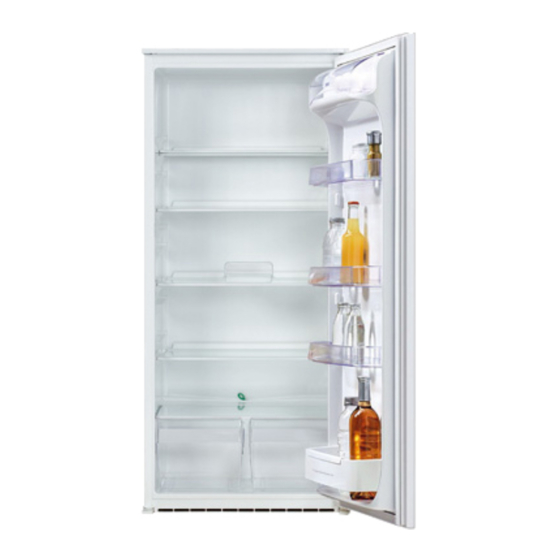

Integrated Fridge
Réfrigérateur à intégrer
Integreerbare koelkast
Frigorifero integrato
Frigirìfico integrable
Modell: IKE 240-2
F
GB
NL
I
E
p.: 11-18
19-27
28-36
37-44
45-53
2222 788-01
Advertisement
Table of Contents
Related Manuals for Kuppersbusch IKE 240-2
Summary of Contents for Kuppersbusch IKE 240-2
- Page 1 Importante: E’ necessario leggere attentamente queste istruzioni e conservarle con cura Importante: Leerlas imprescindiblement y guardarlas Integriertes Kühlgerät Integrated Fridge Réfrigérateur à intégrer Integreerbare koelkast Frigorifero integrato Frigirìfico integrable Modell: IKE 240-2 p.: 11-18 19-27 28-36 37-44 45-53 2222 788-01...
-
Page 2: General Safety
WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. -
Page 3: Environment Protection
• Do not place carbonated or fizzy drinks in the is advisable to wait at least two hours before freezer as it creates pressure on the container, connecting the appliance to allow tl¦e oil to flow which may cause it to explode, resulting in back in the compressor. -
Page 4: Temperature Regulation
Temperature regulation Important The temperature is automatically regulated and can If the ambient temperature is high or the be increased to achieve a higher temperature appliance is fully loaded, and the appliance is (warmer) by rotating the thermostat knob toward set to the lowest temperatures, it may run lower settings or reduced (colder) rotating the knob continuously causing frost to form on the rear... -
Page 5: Maintenance
HINTS cleaned and placed in the special drawer(s) Hints for refrigeration provided. Useful hints: Butter and cheese: these should be placed in Meat (all types): wrap in polythene bags and place special airtight containers or wrapped in aluminium on the glass shelf above the vegetable drawer. foil or polythene bags to exclude as much air as possible. -
Page 6: Customer Service And Spare Parts
Defrosting Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. -
Page 7: Door Reversibility
3. Unscrew with a key the lower pin and replace it on the opposite side. 4. Reinsert the door, refit the spacer and rescrew the upper pin on the opposite side. Building-in instructions Dimensions of housing Model IKE 240-2 Height 1225 mm Depth 550 mm Width 560 mm For safety reasons, minimum ventilation must be as shown in Fig. - Page 8 Apply the sealing strip pushing it between the refrigerator and the adjacent cabinet. From the plastic cover (E), which is used to cover the hinge with the pivot pin, you must take away the part as indicated in the drawing. This operation is made easer since there is, in the internal part of the cover hinge lid a groove that facilates the removal of this coomponent.
- Page 9 Fix cover (Hc) on guide (Ha) until it clips into place. Open the appliance door and the furniture door at 90°. Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes as indicated in the figure. Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).
- Page 10 Promjena smjera otvaranja vrata Reverzibilita dveří Uređaj se dostavlja s vratima koja se otvaraju u desno. Zařízení je dodáváno s otvíráním dveří doprava. Kako bi se omoguc ́ ilo otvaranje vrata na lijevu stranu potrebno je izvesti sli- Pro obrácené...
- Page 11 Az ajto ́ nyita ́ s megfordíta ́ sa Reversibilità della porta A készülék ajtaja gyárilag jobb oldalra nyílik. L’apparecchiatura viene fornita con apertura della porta verso destra. Az ajtónyitás megfordításához a készülék beépítését megelőzően végezze el Per avere l’apertura delle porte nel lato opposto eseguire le seguenti opera- az alábbi műveleteket: zioni prima di effettuare l’installazione 1.
- Page 12 KÜPPERSBUSCH HAUSGERÄTE AG Postfach 10 01 32, D-45801 Gelsenkirchen, Küppersbuschstr. 16, D-45883 Gelsenkirchen Telefon: (02 09) 4 01-0, Telefax: (02 09) 4 01-3 03 www.kueppersbusch.de Küppersbusch Ges. m. b. H. Eitnergasse 13, 1231 Wien, Telefon: 01 / 8 66 80-0, Telefax: 01 / 8 66 80 72 www.kueppersbusch.at ·...
