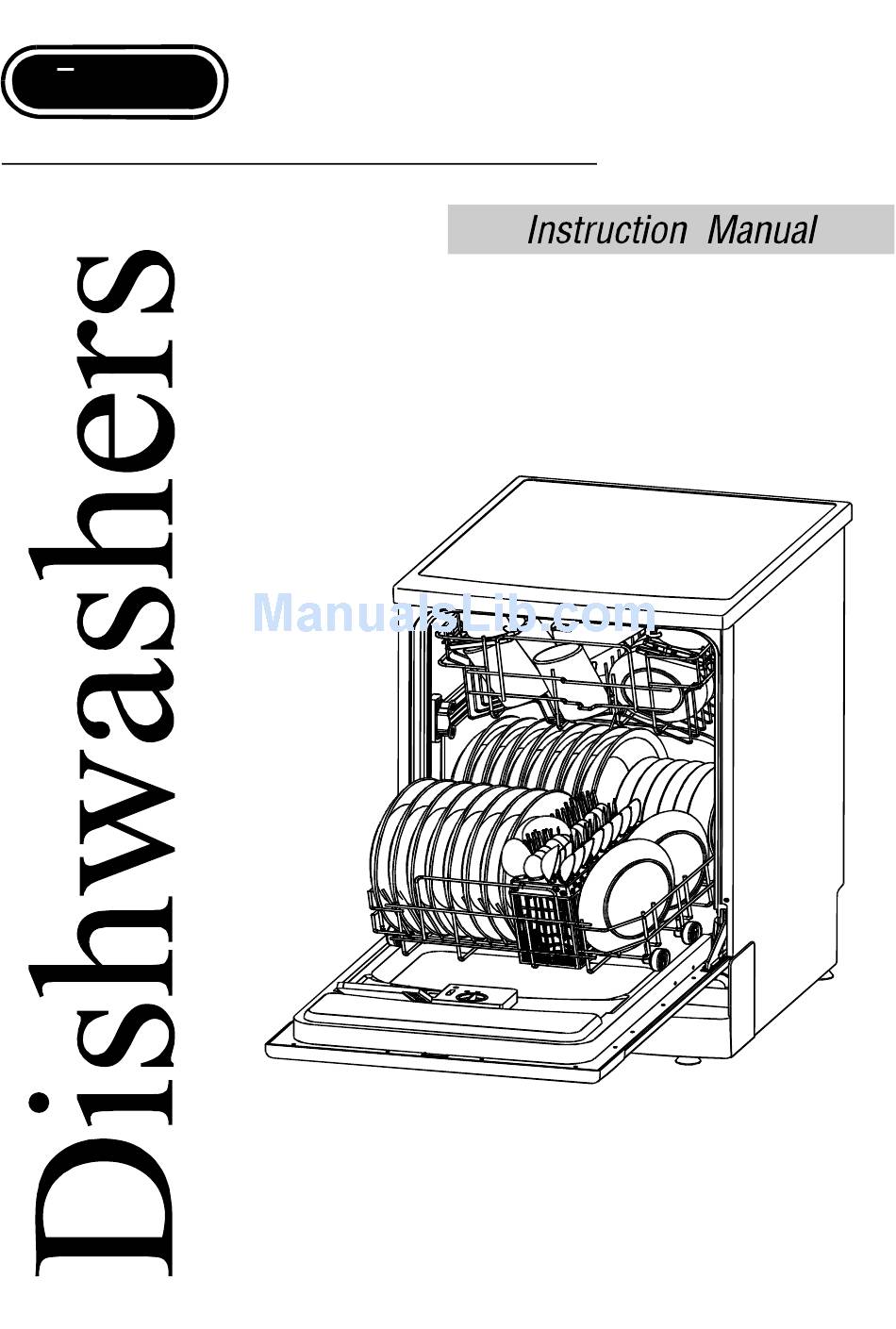

- Page 1 DeLonghi DW67S/W...
- Page 2 ....1 This manual contains sections of Safety Instructions,Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
- Page 3 Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes.
- Page 4 To get the best performance from your dishwasher,read all operating instructions before using it for the first time. auto DeLonghi 4 Delayed Start Button: Press this button to set the delayed 1 ON/OFF Button: To turn on/off the power supply.
- Page 5 Pre-wash (45℃) For the heaviest soiled loads, wash(50℃ 70℃ such as pots,pans,casserole Rinse Intensive 5/25 g dishes and dishes that have Rinse been sitting with dried food Rinse (70℃) on them for a while. Drying. Pre-wash Pre-wash For heavy soiled loads, Heavy 5/25 g Wash (50℃)
- Page 6 The dispenser must be refilled before the start of each wash cycle following the instructions provided i n the" Wash Cycle Table".Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.
- Page 7 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour in rinse -aid into the container is fill (approx . 140 ml) , Being careful not to overfill. Replace the cap by inserting it aligned w ith "open" arrow and turning i t to the closed (right) arrow.
- Page 8 If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases.
- Page 9 Cups Glasses Saucers Dessert dishes We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoid bl ocking the rotation of the top spray arm.
- Page 10 Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.
- Page 11 For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter. Main filter Food and soil particles trapped by this fil ter are pulverized by a special jet on the lower spray arm and washed down the drain.
- Page 12 The dishwasher must never be used without the fi lters in pl ace . Improper replacement of the filter may reduce the performance level of the appliance and cause damage to the appliance . When cleaning the filters, don't knock on them .Otherwise the filters could be contorted and the performance of dishwasher could be debased.
- Page 13 Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities.
- Page 14 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
- Page 15 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
- Page 16 1155 Height : 850mm Width : 600mm Depth : 600mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 12 Place settings...
