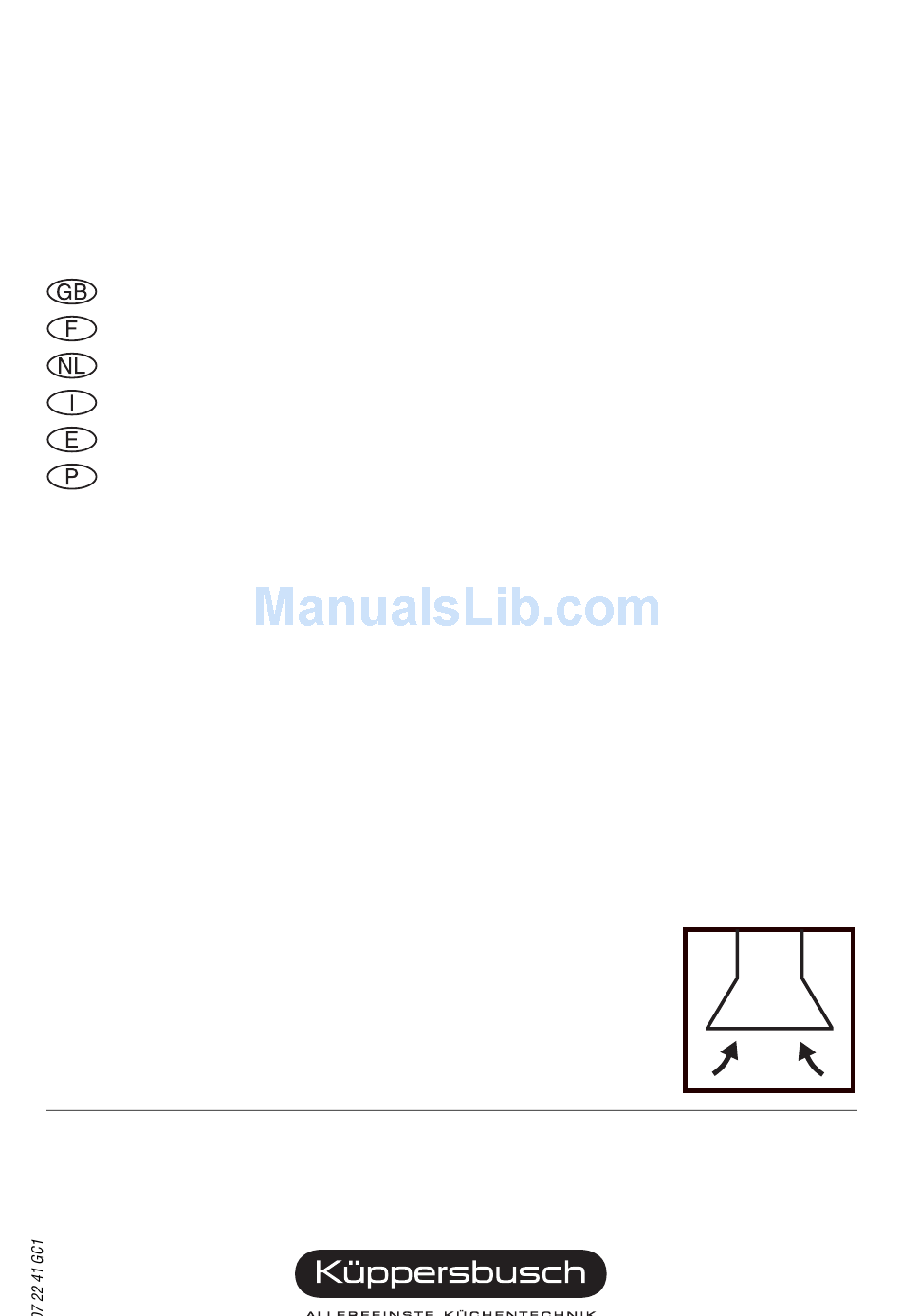

- Page 1 BEDIENUNGSANWEISUNG mit Montageanweisungen Instructions for use and installation instructions Instructions d’utilisation et avis de montage Gebruiksaanwijzing en montagehandleiding Istruzioni di uso e di montaggio Instrucciones de uso y de montaje Instruções de uso e de montagem EDIP 649.0...
-
Page 2: For Your Information
For your information Safety instructions Please read the instructions in this booklet carefully as it contains important Always disconnect the cooker hood from the electricity supply when clea- information concerning the safety, the installation, the use and the mainten- ning the appliance or when carrying out maintenance or repair jobs. Eit- ance of your applicance. -
Page 3: Installation
Installation internal partition It is easiest to fit the cooker hood into a wall cabinet which has not yet been mounted on the wall. This can be done either backside of wall without adjusting the height and the depth or –... - Page 4 Finally, reinstall the lamp cover. – spacing strip covering cap Drilling template lamp cover Left catch lock Right catch lock Installation with adjustment of height and Fastening the support rails depth Remove the internal partition from the cupboard. – Fasten each of the two support rails with two screws 3.5 x 16. –...
-
Page 5: Electrical Connection
Extraction connection and extraction path Have you observed the instructions for operation in extraction mode on page 12? The exhaust connection piece has a diameter of 125 mm. The extraction channel (e.g. smooth plastic pipes or flexible tubing) should also have a dia- meter of 125 mm. -
Page 6: Using The Appliance
