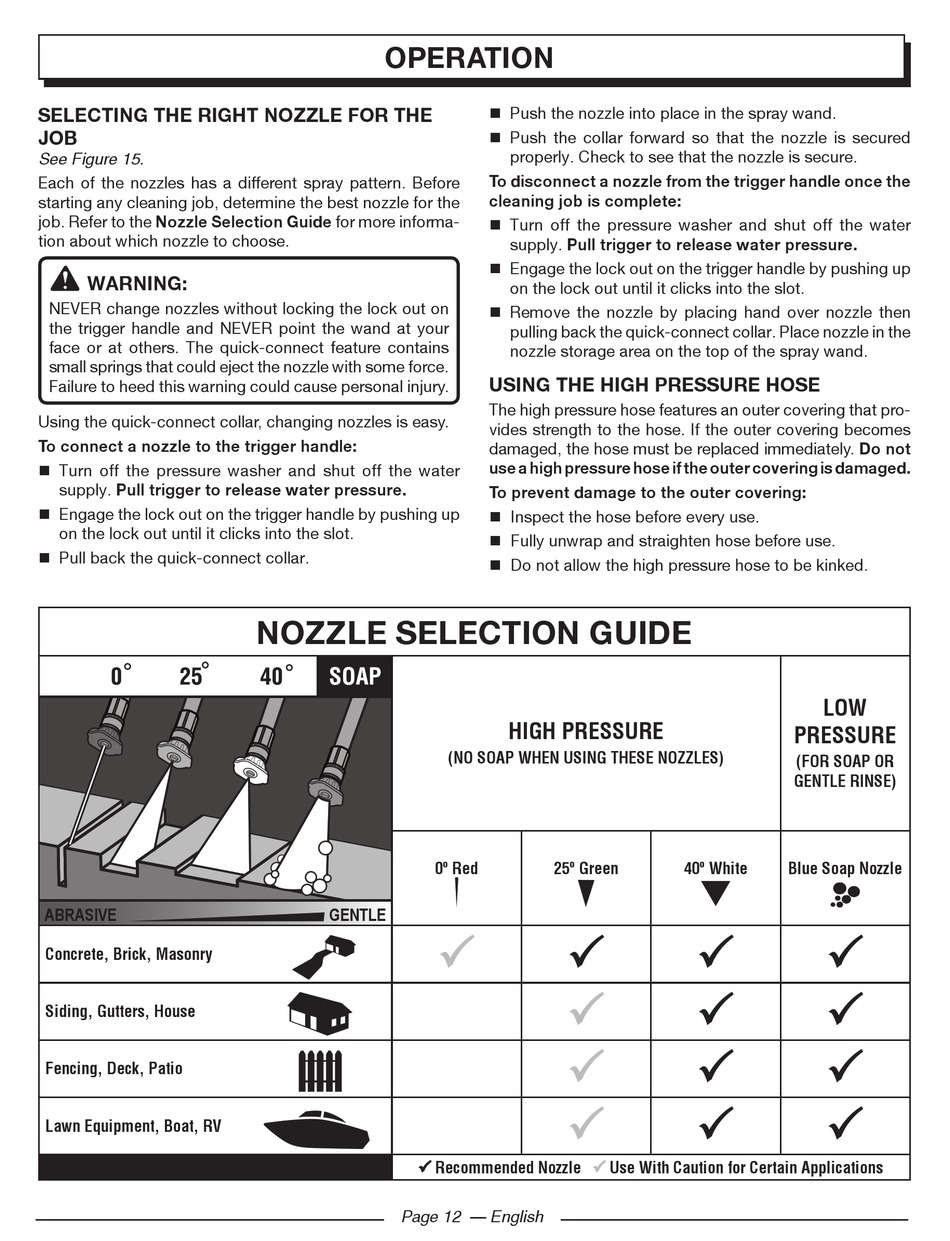

Homelite UT80522B Operator's Manual page 16

SELECTING THE RIGHT NOZZLE FOR THE
JOB
See Figure 15.
Each of the nozzles has a different spray pattern. Before
starting any cleaning job, determine the best nozzle for the
job. Refer to the Nozzle Selection Guide for more informa-
tion about which nozzle to choose.
WARNING:
NEVER change nozzles without locking the lock out on
the trigger handle and NEVER point the wand at your
face or at others. The quick-connect feature contains
small springs that could eject the nozzle with some force.
Failure to heed this warning could cause personal injury.
Using the quick-connect collar, changing nozzles is easy.
To connect a nozzle to the trigger handle:
 Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
 Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
 Pull back the quick-connect collar.
ABRASIVE
Concrete, Brick, Masonry
Siding, Gutters, House
Fencing, Deck, Patio
Lawn Equipment, Boat, RV
OPERATION
NOZZLE SELECTION GUIDE
0º Red
GENTLE
 Recommended Nozzle
Page 12 — English
 Push the nozzle into place in the spray wand.
 Push the collar forward so that the nozzle is secured
properly. Check to see that the nozzle is secure.
To disconnect a nozzle from the trigger handle once the
cleaning job is complete:
 Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
 Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
 Remove the nozzle by placing hand over nozzle then
pulling back the quick-connect collar. Place nozzle in the
nozzle storage area on the top of the spray wand.
USING THE HIGH PRESSURE HOSE
The high pressure hose features an outer covering that pro-
vides strength to the hose. If the outer covering becomes
damaged, the hose must be replaced immediately. Do not
use a high pressure hose if the outer covering is damaged.
To prevent damage to the outer covering:
 Inspect the hose before every use.
 Fully unwrap and straighten hose before use.
 Do not allow the high pressure hose to be kinked.
HIGH PRESSURE
(NO SOAP WHEN USING THESE NOZZLES)
25º Green
 



Use With Caution for Certain Applications

LOW
PRESSURE
(FOR SOAP OR
GENTLE RINSE)
40º White Blue Soap Nozzle
 
 
 
 
