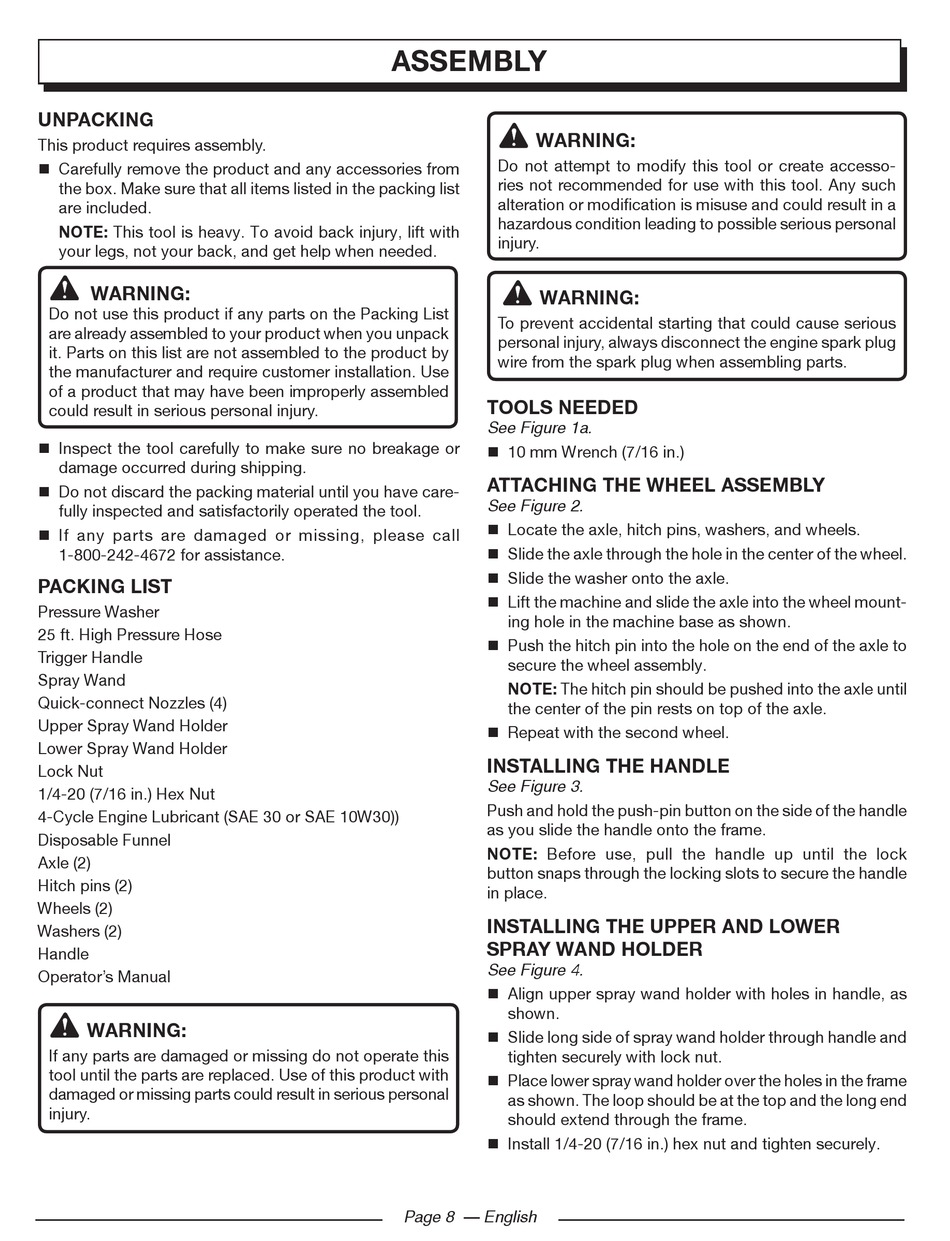

Assembly - Homelite UT80522B Operator's Manual

UNPACKING
This product requires assembly.
 Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
WARNING:
Do not use this product if any parts on the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
 Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
 Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
 If any parts are damaged or missing, please call
1-800-242-4672 for assistance.
PACKING LIST
Pressure Washer
25 ft. High Pressure Hose
Trigger Handle
Spray Wand
Quick-connect Nozzles (4)
Upper Spray Wand Holder
Lower Spray Wand Holder
Lock Nut
1/4-20 (7/16 in.) Hex Nut
4-Cycle Engine Lubricant (SAE 30 or SAE 10W30))
Disposable Funnel
Axle (2)
Hitch pins (2)
Wheels (2)
Washers (2)
Handle
Operator's Manual
WARNING:
If any parts are damaged or missing do not operate this
tool until the parts are replaced. Use of this product with
damaged or missing parts could result in serious personal
injury.

ASSEMBLY

WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug when assembling parts.
TOOLS NEEDED
See Figure 1a.
 10 mm Wrench (7/16 in.)
ATTACHING THE WHEEL ASSEMBLY
See Figure 2.
 Locate the axle, hitch pins, washers, and wheels.
 Slide the axle through the hole in the center of the wheel.
 Slide the washer onto the axle.
 Lift the machine and slide the axle into the wheel mount-
ing hole in the machine base as shown.
 Push the hitch pin into the hole on the end of the axle to
secure the wheel assembly.
NOTE: The hitch pin should be pushed into the axle until
the center of the pin rests on top of the axle.
 Repeat with the second wheel.
INSTALLING THE HANDLE
See Figure 3.
Push and hold the push-pin button on the side of the handle
as you slide the handle onto the frame.
NOTE: Before use, pull the handle up until the lock
button snaps through the locking slots to secure the handle
in place.
INSTALLING THE UPPER AND LOWER
SPRAY WAND HOLDER
See Figure 4.
 Align upper spray wand holder with holes in handle, as
shown.
 Slide long side of spray wand holder through handle and
tighten securely with lock nut.
 Place lower spray wand holder over the holes in the frame
as shown. The loop should be at the top and the long end
should extend through the frame.
 Install 1/4-20 (7/16 in.) hex nut and tighten securely.
Page 8 — English
