Homelite UT41121 Getting Started Manual

1
Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
2
Remove screw, lock washer and washer from the motor housing with a philips screwdriver.

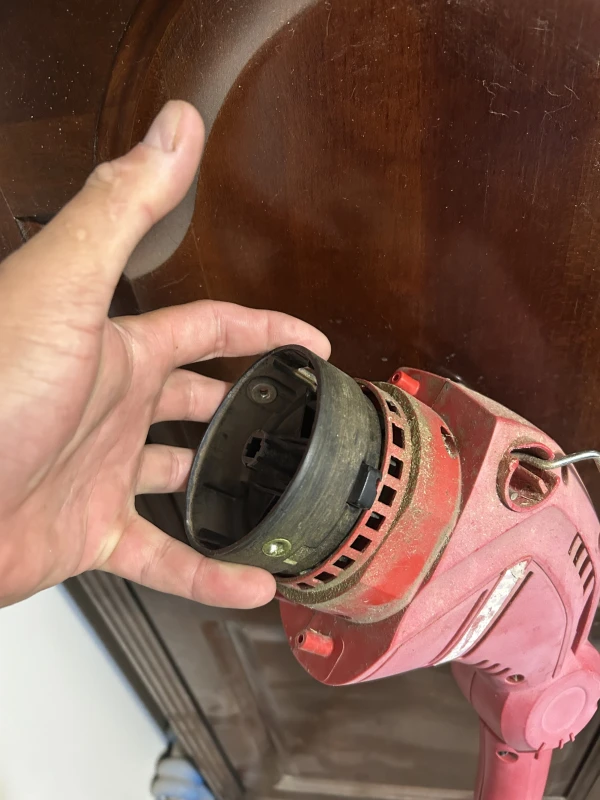

3 Fit the grass deflector over the trimmer head and into the slots on motor houseing.
Turn counterclockwise to lock grass deflector into place.
4
Line up the screw hole in the grass deflector with the center hole in the motor housing.
5
Reinstall screw, lock washer and washer. Tighten securely by turning clockwise.
6
Attach the outlet end of an extension cord to the plug on the rear of the string trimmer.
7
Route extenion cord through the cord retainer.
8
Connect the extension cord to the power supply.
Make The Most Of Your Purchase!
Go to www.homelite.com and register your new tool on-line.
For any questions about operating or maintaining your product, call the Homelite Help Line !
Your Product has been fully tested prior to shipment to ensure your complete satisfaction.
Troubleshooting tips are available in your operator's manual.
®
To register your Homelite product or set up your eBox™ account by regular mail, please print the following
information on a 3"x5" card or standard postcard: your name, mailing address, phone numbers, email address,
®
Homelite product(s) purchased with item number from package, and serial number for each product.
Mail the card to: Homelite Consumer Products Attn. Homelite Registration, 1428 Pearman Dairy Road, Anderson, SC 29625.
To receive information on our company and products, please include the following statement on your registration card:
"Send me information on your products and company using the contact information I am providing with this product registration."
HOW TO GET STARTED
2 5
4
3
