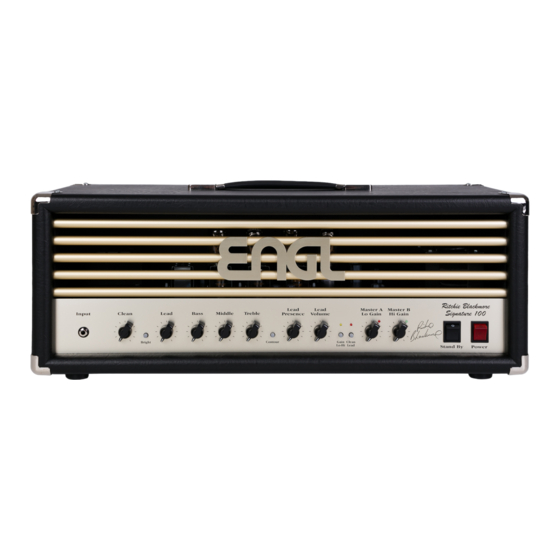

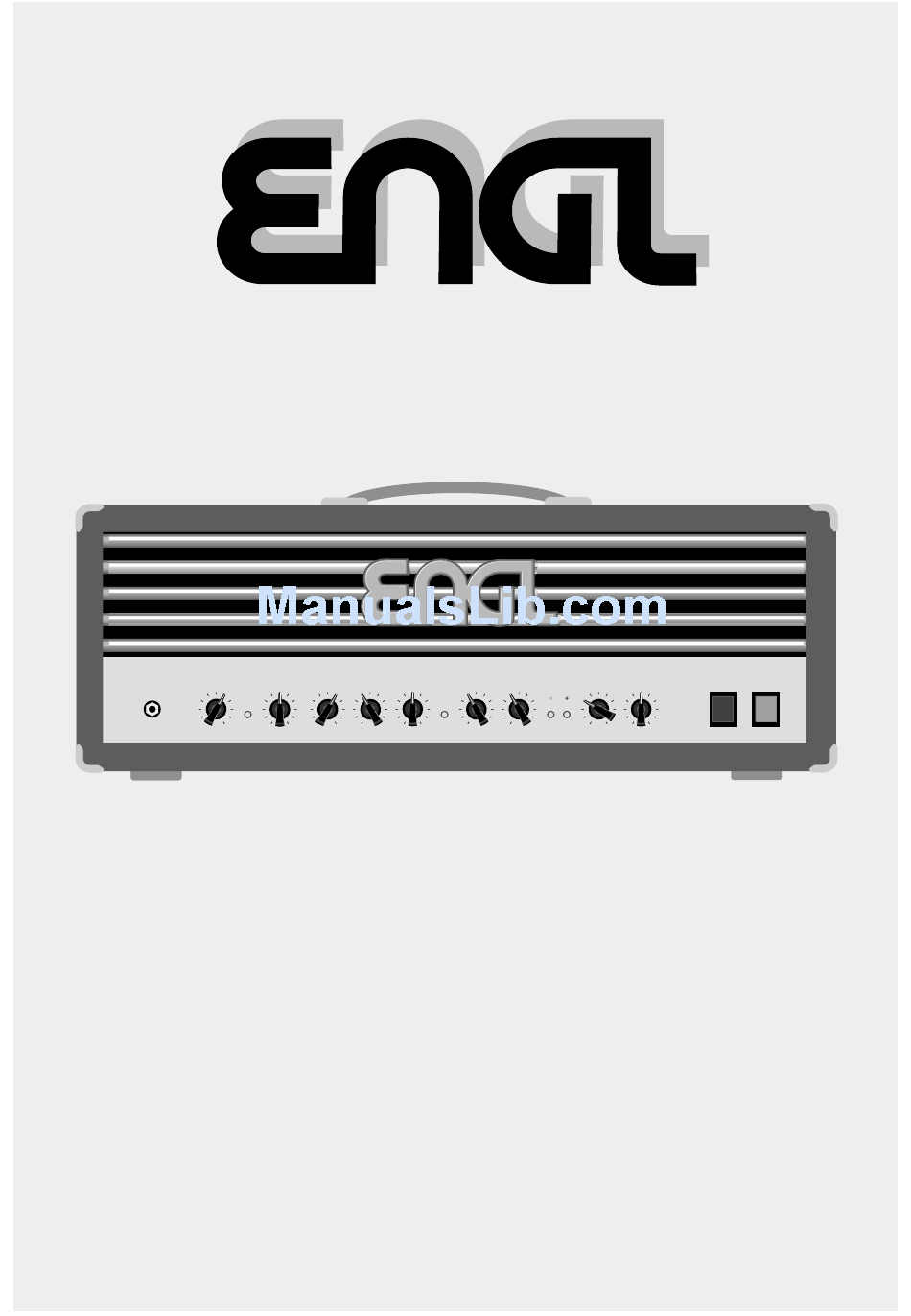

- Page 1 Ritchie Blackmore Lead Lead Master A Master B Signature 100 Clean Lead Bass Middle Treble Presence Volume Lo Gain Hi Gain Input Bright Contour Gain Clean Lo / Hi Lead Stand By Power Ritchie Blackmore Signature Guitar Amplifier Operator´s Manual Please, first read this manual carefully!
-
Page 2: Front Panel
Ritchie Blackmore. The Ritchie Blackmore Signature amp is based on a classic, proven design, but is also equipped with a number of innovative features. For instance, you can vary the amount crunch for the two channels Clean and Lead via the Gain-Boost switch. -
Page 3: Rear Panel
14 Master B - Hi Gain Use this control (post FX Loop) to set the poweramp´s master volume when the preamp is in Hi-Gain mode. Connect a footswitch to Jack 19 if you want to convert this control for use as Master B. You can then use the footswitch to activate two different master volumes (Master A and Master B). - Page 4 Technical Data, Type 650 ("Signature 100"): Rated power: approx. 100 watts at 4, 8 or 16 ohms; Type 650. Tubes: V1(Input -Tube): ECC 83 / 12AX7, FQ selected; V2: ECC 83 / 12AX7 selected; V3, V4: ECC 83 / 12AX7, standard; V7 - V10: 5881 (6L6GC) matched sets.
- Page 5 Engl Amps are the best amps I´ve ever used " – not only are they powerful, but they have texture and character too."...
-
Page 6: Handling And Care
Please read the instructions carefully before operating the unit! Only operate the amplifier in a manner it is designed for and therefore note this operational instructions! ENGL Gerätebau GmbH, Germany; Internet: www.engl-amps.com Text, design, grafics and layout by Horst Langer...
