Tamron 360EE Owner's Manual

Sp af 300mm f/2.8 ld [if] for canon
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
SP AF 300mm
F/2.8 LD [IF] for Canon
(Model 360EE)
We greatly appreciate your purchase of this Tamron lens. The Tamron SP AF
300mm F/2.8 LD [IF] is a fast telephoto lens developed for Canon AF single-
reflex cameras. Before using it, be sure to read these instructions carefully
and fully understand the lens specifications and performance. Also, to ensure
a long service life, be sure to use and clean the lens properly.

Advertisement

loading

Related Manuals for Tamron 360EE

Summary of Contents for Tamron 360EE

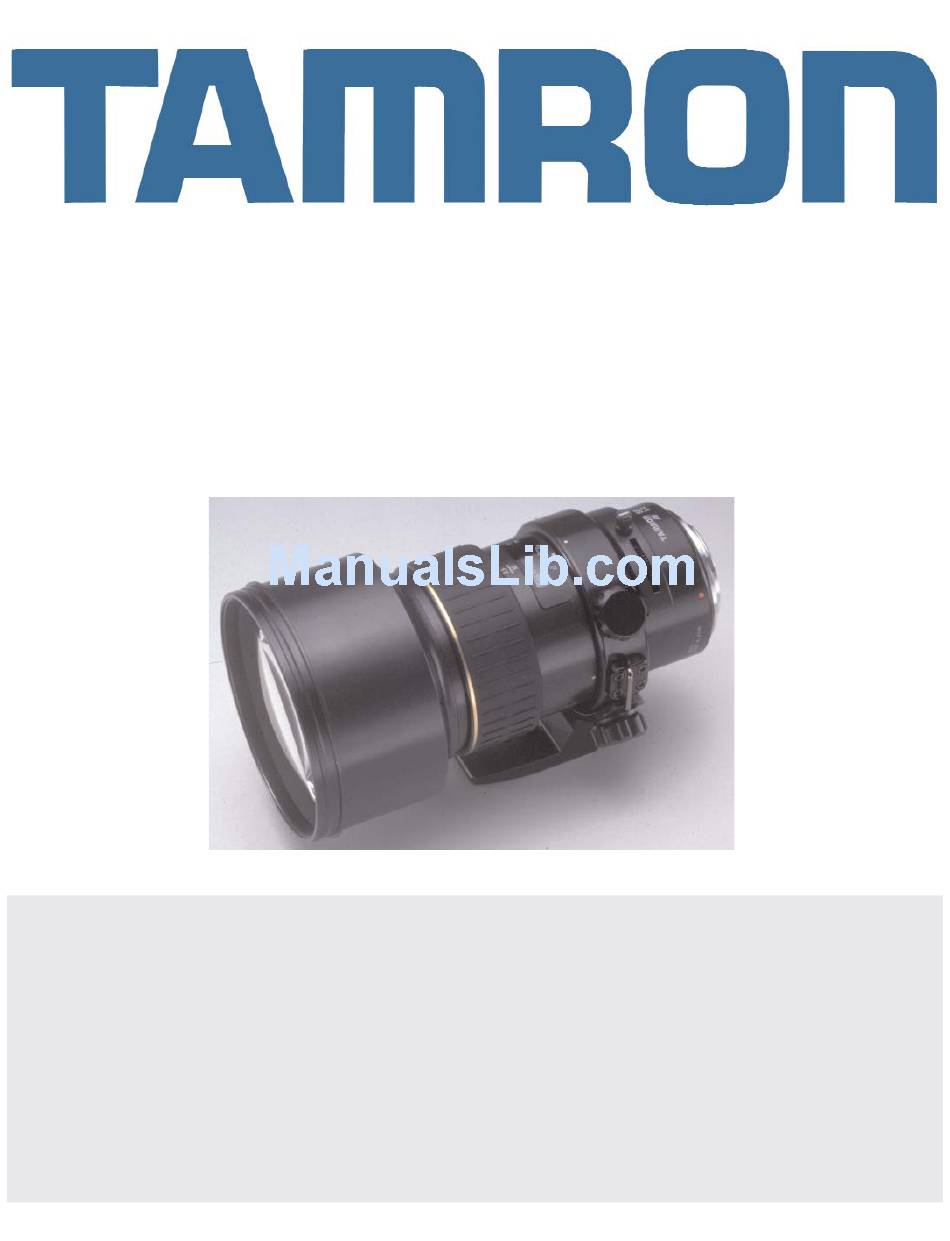

  • Page 1 F/2.8 LD [IF] for Canon (Model 360EE) We greatly appreciate your purchase of this Tamron lens. The Tamron SP AF 300mm F/2.8 LD [IF] is a fast telephoto lens developed for Canon AF single- reflex cameras. Before using it, be sure to read these instructions carefully and fully understand the lens specifications and performance.

  • Page 3: Names Of Parts

    Tripod socket fixing screw Tripod socket mounting/removal screw Filter frame Filter frame lock knob Filter turning dial Strap ring Hood lock screw Hood SPECIFICATIONS 360EE Focal Length 300mm F/number F/2.8 Optical Construction 7 groups, 10 elements Angle of View 8°...

  • Page 4: Lens Hood

    MOUNTING/REMOVING THE LENS Mounting After removing the rear lens cap, place the lens in the camera mount. Align the lens mount index point with that of the camera body, then rotate the lens clockwise until you hear a click, which indicates the lens being securely locked in place.

  • Page 5: Tripod Socket

    TRIPOD SOCKET The tripod socket can be rotated freely around the lens by loosening the tripod socket fixing screws. Then, it can be fixed at any position by tightening the screws. The tripod socket is posi- tioned exactly 90° from the center when the circle mark on the tripod socket is aligned with the circle mark on the lens.

  • Page 6: Depth Of Field

    FILTERS (con’t) Setting and Removing Rear Filter into/from the Filter Frame The filter setting screw portion of the filter frame can be rotated. Therefore, when removing or set- ting a filter, hold the filter rotating dial or the gear at the outer side of the filter setting screw with a finger so that it does not turn inadvertently.
  • Page 7 TO ENSURE LONG-TERM SATISFACTION 1. Avoid touching the lens surface. Use a photographic brush or blower to remove dust from the lens surface. When not using the lens, put a lens cap on for protection. 2. Use a lens cleaning tissue or lint cloth with a drop of cleaning solution to clean fingerprints or dirt on the lens surface with a rotary motion from center to edge.
