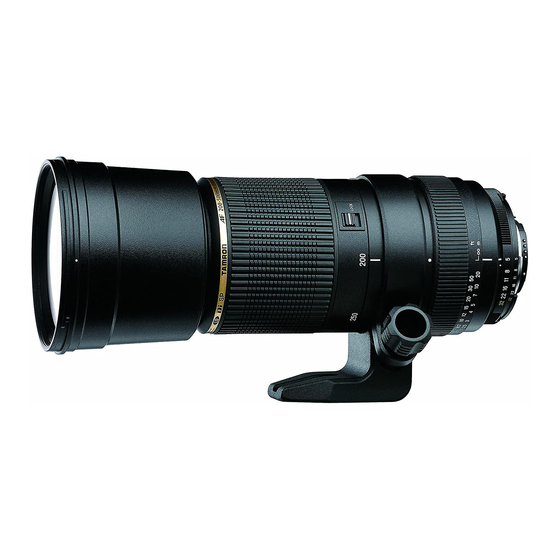

SP AF200-500mm
F/5-6.3 Di LD [IF]
(Model A08)
Thank you for purchasing the Tamron lens as the latest addition to
your photographic equipment. Before using your new lens, please
read the contents of this Owner's Manual thoroughly to familiarize
yourself with your lens and the proper techniques for creating the
highest quality images possible. With proper handling and care,
your Tamron lens will give you many years of photographing
beautiful and exciting pictures.
Advertisement
Related Manuals for Tamron SP A08
Summary of Contents for Tamron SP A08

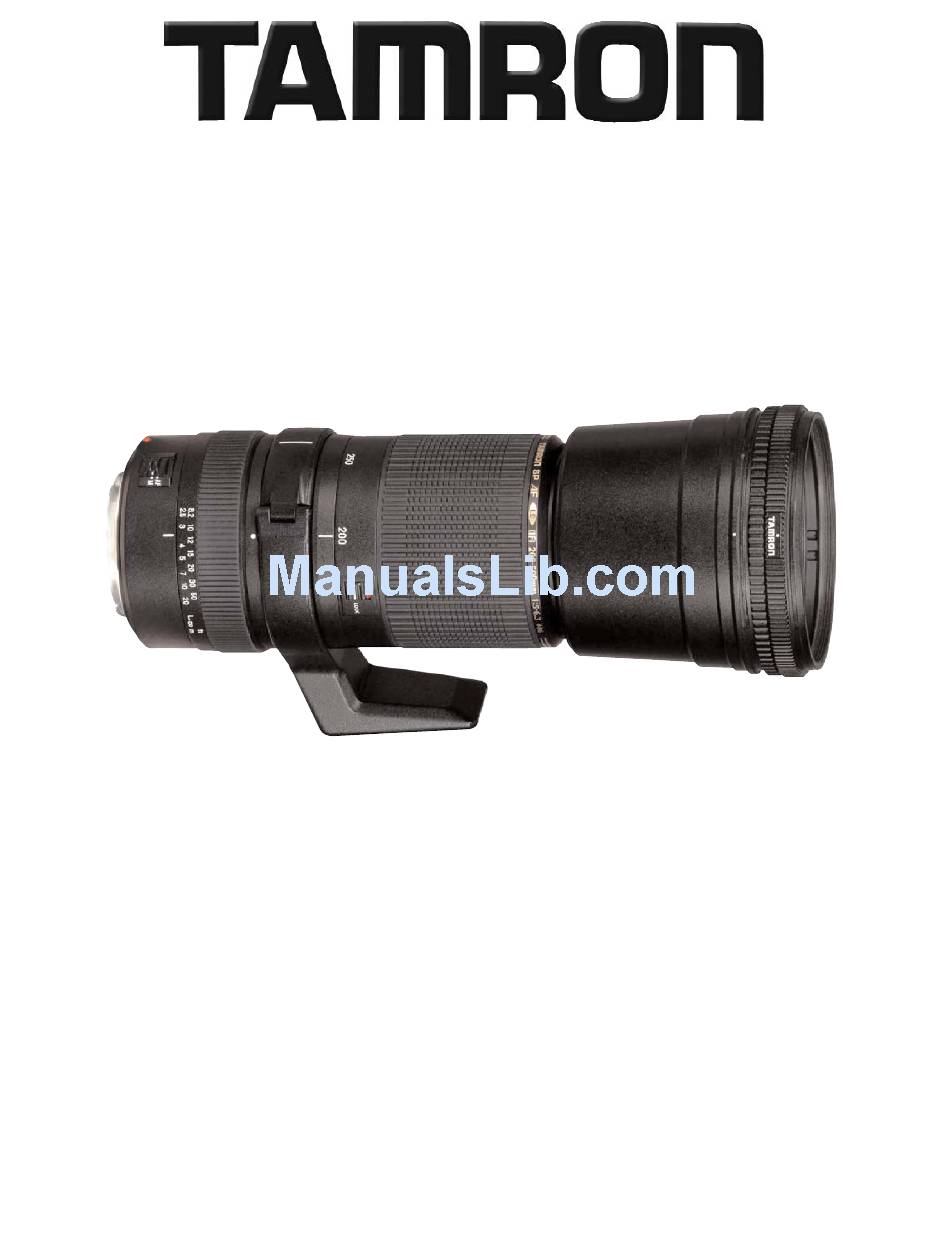

- Page 1 SP AF200-500mm F/5-6.3 Di LD [IF] (Model A08) Thank you for purchasing the Tamron lens as the latest addition to your photographic equipment. Before using your new lens, please read the contents of this Owner's Manual thoroughly to familiarize yourself with your lens and the proper techniques for creating the highest quality images possible.
- Page 2 NOMENCLATURE 1-1. Hood attaching alignment mark (on lens) 1-2. Hood attaching alignment mark (on FEC) 1-3. Hood attaching alignment mark (on hood) 2. Hood attachment mark 3. Lens hood 4. Hood filter ring 5. Zoom ring 6. Zoom lock switch 7.
-
Page 3: Specifications
SPECIFICATIONS FOCAL LENGTH MAXIMUM APERTURE ANGLE OF VIEW LENS CONSTRUCTION (GROUPS / ELEMENTS) MINIMUM FOCUS DISTANCE MAXIMUM MAGNIFICATION RATIO FILTER SIZE LENGTH DIAMETER WEIGHT 200 ~ 500 mm F/5-6.3 12 - 5 deg. 10/13 2.5 m (8.20ft) (Full zoom range) 1:5.0 (at 500mm) 86 mm 224.5 mm... -
Page 4: Attaching And Removing The Lens
ATTACHING AND REMOVING THE LENS *How to mount the lens Remove the rear lens cap and align the lens attachment mark on the lens barrel with its counterpart on the camera mount and insert lens. Rotate the lens clock- wise until it click-locks. For Nikon model, align the lens attachment mark on the camera and the aperture index on the lens to attach the lens. - Page 5 LENS APERTURE AND AE MODE * Setting lens f-numbers with Canon and Minolta cameras Set the f-number with the aperture setting device of the camera body in accor- dance with the selected photographing mode. * Setting lens f-numbers with Nikon Depending on the photography mode, it is possible to set the aperture on either the lens aperture ring or on the camera body, or both.
- Page 6 2. Line up the hood attaching alignment mark on the hood and the hood attachment mark on the FEC, then mount the hood evenly. 3. Turn the hood until the hood attachment mark "TAMRON O" and the hood attaching alignment mark on the FEC lines up and you hear a click when the hood is fixed.
-
Page 7: Tripod Socket
ZOOMING Rotate the zoom ring of the lens while viewing through the camera's viewfinder and compose your image at the chosen focal length. ZOOM LOCK SWITCH Model A08 is equipped with a zoom lock mechanism that prevents the lens bar- rel from extending towards a longer focal length. -
Page 8: Depth Of Field
PRECAUTIONS IN SHOOTING * The Tamron lens, SP AF200-500mm (Model A08) employs an internal focusing [IF] system to achieve a remarkable minimum object distance of 2.5 meters (8.20 feet). Because of the characteristics of this optical design, the angles of view at distances other than infinity are wider than that of the lenses applying an ordinary focusing system. - Page 9 * When the built-in flash on the camera is used, adverse photographic phenom- ena such as corner illumination fall-off or vignetting at the bottom part of the image may be observed. This is due to the inherent illumination of the coverage of the built-in flash, and/or the relative position of the flash to the edge of the lens barrel which causes shadows on image.
- Page 10 This will reduce potential equipment trouble. TAMRON USA, INC. 10 AUSTIN BLVD COMMACK, NY 11725...
