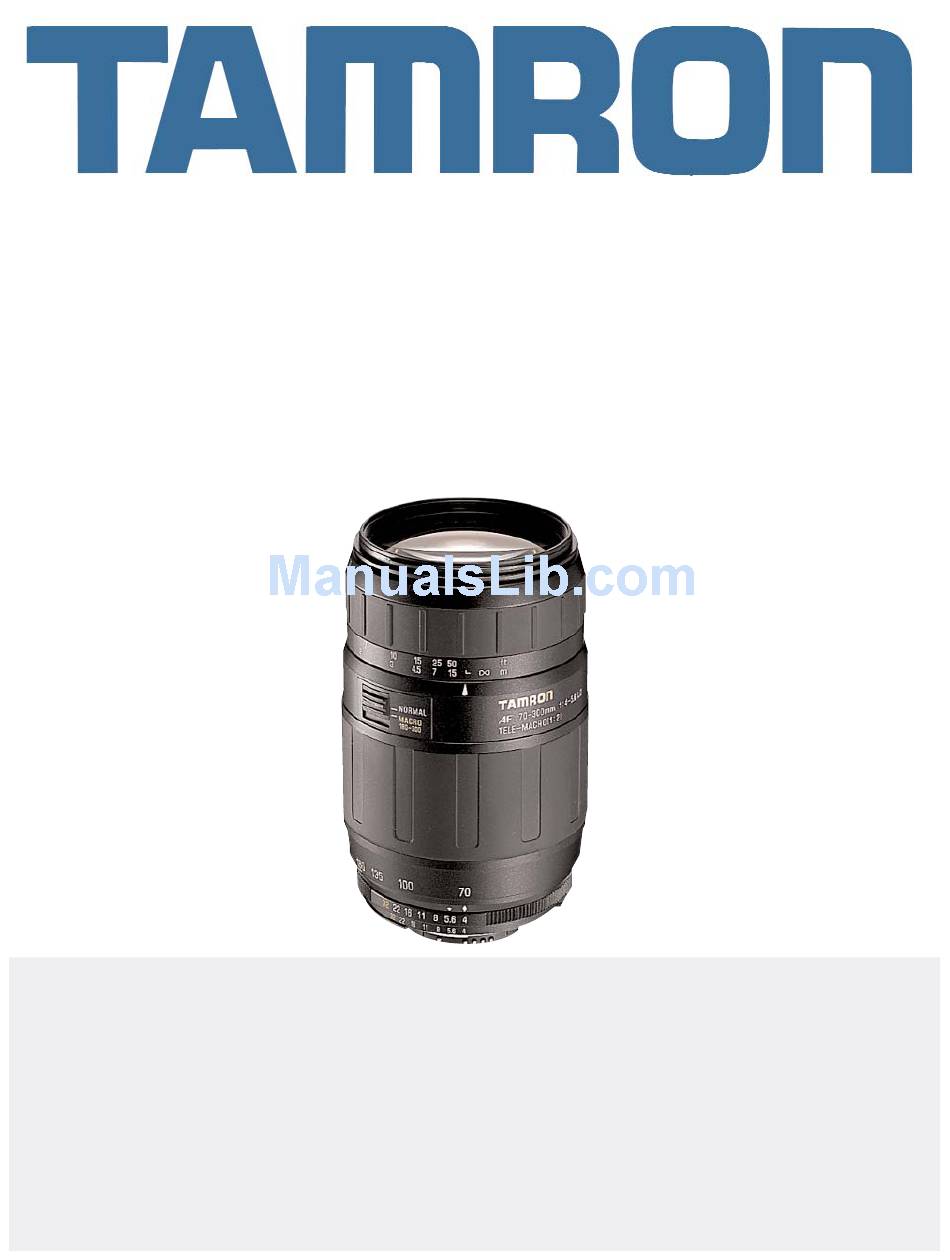

- Page 1 AF 70 - 300mm F/4 - 5.6 LD MACRO 1:2 (Model 572D) Thank you for purchasing this Tamron lens. Please read this owner's manual carefully before using your new lens. Proper care and maintenance of this lens will result in years of enjoyable use.
-
Page 4: Description Of Parts
9 is for Canon/Minolta only 10 is for Canon only 12~14 are for Nikon / Pentax only 17 is for Model 179D only 18 is for Model A10 / 179D only 19 is for Model 572D / 772D only SPECIFICATIONS 572D Focal Length 70-300mm Maximum Aperture F/4 - 5.6... - Page 5 * Length and maximum diameter indicate the values for the lens with the Nikon mount. * Specifications and design are subject to change without notice. MOUNTING/REMOVING THE LENS Mounting After removing the rear cap, place the lens in the camera mount aligning the lens mount index line with that of the camera body (Canon/Minolta/Pentax).
- Page 6 MACRO SWITCHOVER MECHANISM The model 572D allows macro photography by operating the macro selector switch. The maximum magnification ratio in the macro photography mode is 1:2 (f = 300 mm, 0.95m). It is necessary that the zoom be aligned to 180-300 mm when switching the macro selector switch from Normal to Macro.
-
Page 7: Lens Hood
LENS HOOD A bayonet-type lens hood is provided as a standard accessory. Tamron recommends shoot- ing with the hood attached whenever possible as the lens hood cuts out light, which is harmful to image quality. However, please be aware of the precautions noted below when your camera is equipped with a built-in flash. - Page 8 Fig. 9 Fig. 10 Altering camera between vertical & horizon- Detaching tripod-attaching base tal positions 1. Loosen lock knob by rotating knob coun- 1. Loosen lock knob by rotating knob coun- terclockwise. terclockwise. 2. Pull out lock knob slightly. 2. Turn camera and lens so as position align- 3.
- Page 9 Do not use the lens hood when you shoot with your camera's built-in flash. Even with- out the lens hood, an arched-shape shadow may be observed at the bottom portion of the picture when using the built-in flash. Tamron recommends using an optional flash unit (clip- on grip type) when use of flash is necessary.
