Tamron A09 Owner's Manual

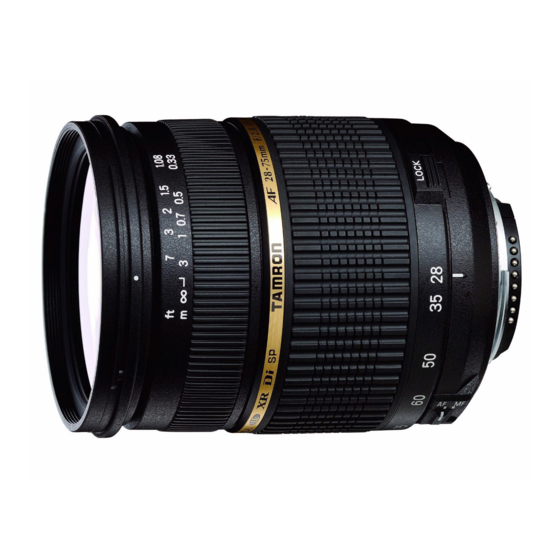

XR Di LD Aspherical [IF] Macro (Model A09)
Thank you for purchasing the Tamron lens as the latest addition to your photographic
equipment. Before using your new lens, please read the contents of this Owner's Manual
thoroughly to familiarize yourself with your lens and the proper photographing
techniques for creating the highest quality images possible. With proper handling and
care, your Tamron lens will give you many years of photographing beautiful and exciting
pictures.
NOMENCLATURE (Refer to Fig. 1, if not specified)
1. Lens hood
2. Hood attaching alignment mark
3. Hood attaching bayonet ring
4. Distance index
5. Focusing ring
6. Distance scale
7. Zoom ring
8. Focal length scale
9. Zoom/Aperture index mark
10. Lens attachment mark (Canon, Minolta Fig. 5)
11. AF-MF altering switch (Canon Fig. 5)
12. Lens mount/Lens mount contacts (Nikon)
13. Aperture ring (Nikon, Pentax Fig. 7)
14. F-number scale (Nikon, Pentax Fig. 7)
15. AE lock button (Nikon, Pentax Fig. 7)
16. F-number scale for finder display (Nikon)
17. Zoom ring lock switch (Fig. 3)
18. F-number index mark for long focal lengths (Fig. 1)
SPECIFICATIONS
Focal Length
Maximum Aperture
Angle of View
Lens Construction
Minimum Focus Distance
Maximum Magnification Ratio
Filter Size
Length
Diameter
Weight
* Lengths, diameters and weights listed are of lenses with Nikon mounts.
SP 28-75mm F/2.8
R
A09
28-75 mm
F/2.8
75 – 32
14/16
0.33 m
1:3.9 (at 75 mm)
67mm
92mm
73mm
510 g
