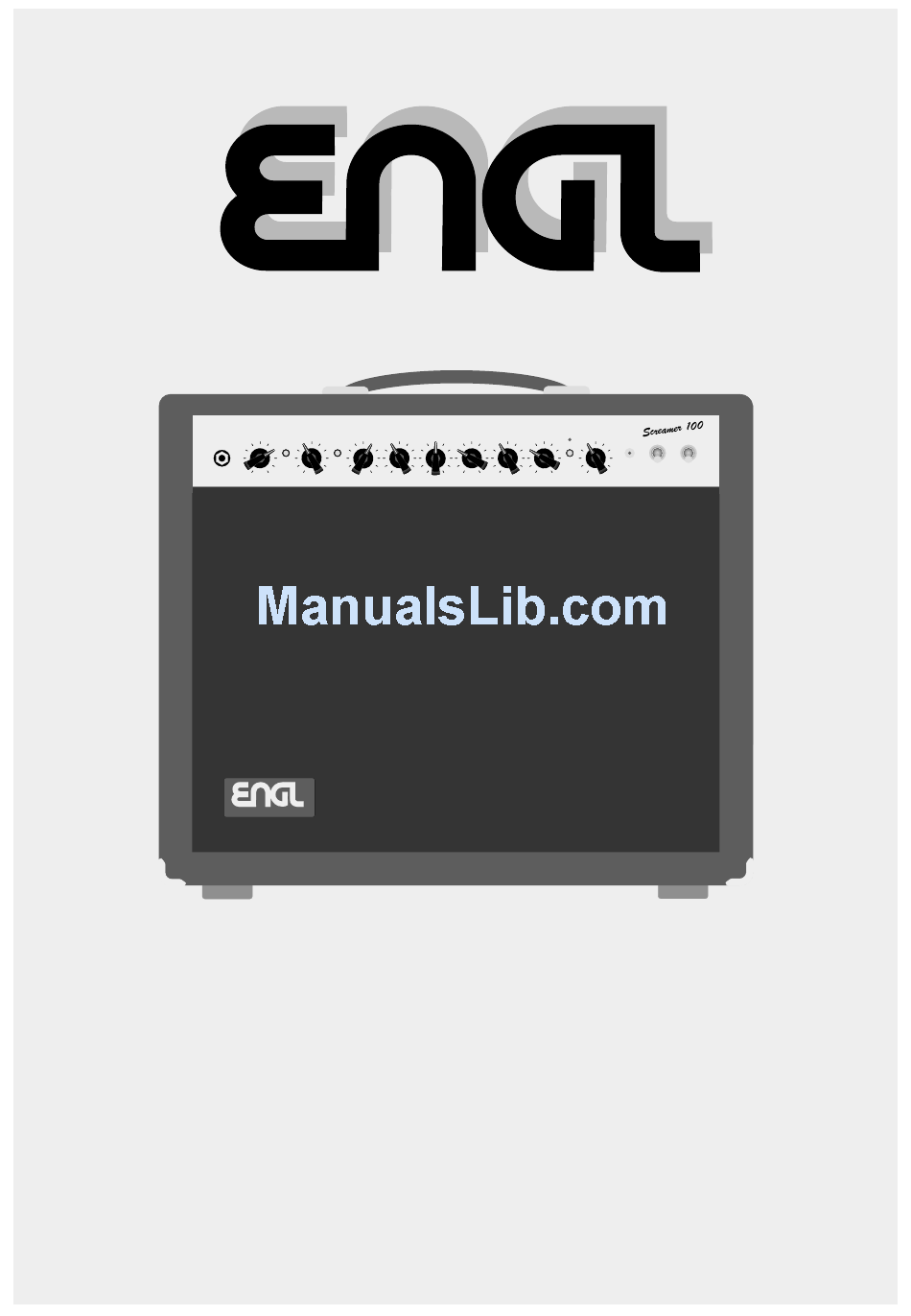

- Page 1 Bass Middle Treble Reverb Presence Volume Master Input Bright Lead Clean Boost Lead Stand By Power T U B E - A M P L I F I E R Screamer 100 Operator´s Manual Please, first read this manual carefully!
-
Page 2: Front Panel

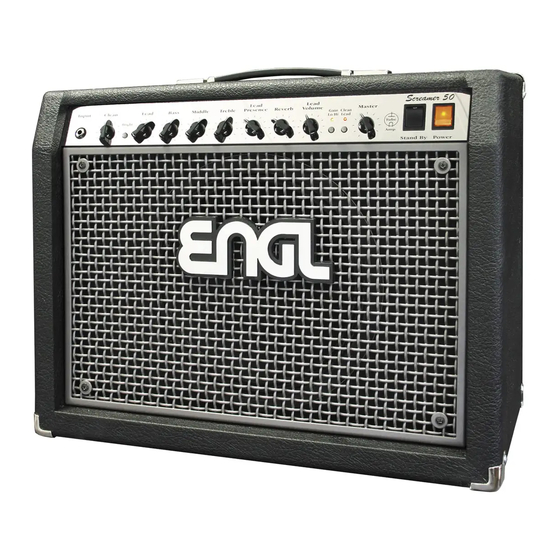

Screamer - a really great fully-tube guitar amplifier: The right choice for Rock and Blues! Sensible features and a very clear arrangement of the controls allow an easy handling of this amp. An exeptional noble optical design and the unique, creamy warm tube-sound combined with an excellent sounding spring reverb gives this amplifier an noninterchangeable character. -
Page 3: Rear Panel
1.Channel switching between Clean and Lead (mono terminal) 2.Lead Boost (stereo terminal). All functions that can be accessed via footswitch can also be switched via the ENGL MIDI Switcher Z-11. Simply connect the two 1/4" stereo jacks (19) and (20) to the stereo inputs of the Switcher via two cables equipped with 1/4"... -
Page 4: Technical Data
27 Level: Signal level control for the frequency-corrected line output; it is used to match the amp’s signal level at the Line output to the mixing console or recorder’s input. 28 Overload: This LED denotes the Line output is overloading; in this case, reduce the signal’s level via the Level control. - Page 5 MIDI IN ENGL Switcher Z-11 1: Power Supply this graphic depicts a typical setup: The Screamer 100 Head combined with 2: Loop 3 & 4 the excellent sounding ENGL 412 cabinet; the Channel switching, Lead Boost, 3: Loop 1 & 2 Reverb and the Master Volume Level Switching (V.L.S.) is controlled via the...
-
Page 6: Handling And Care
Please read the instructions carefully before operating the unit! Only operate the amplifier in a manner it is designed for and therefore note this operational instructions! ENGL Gerätebau GmbH, Germany; Internet: www.engl-amps.com Text, design, grafics and layout by Horst Langer...
