- Page 1 TUBE POWERAMP 930/60 930/120 Operator´s Manual Please, first read this manual carefully!
- Page 2 In addition to a first class tube tone, the poweramp offers a number of practical features in a powerful 2x60 watt (Model 930/120=>2x120 W) package. A switchable input system (INPUT A/B) enables you to switch back and forth between two preamps; each of the two stereo channels features two volume and two presence controls (A and B), so you can dial in diverse volume and presence settings for each preamp.
- Page 3 GROUND LIFT switch to the GROUND FLOATED position. The ENGL MIDI INTERFACE offers even more comfortable handling features and loads of interesting combinations. This interface allows you to switch the four defined functions via a MIDI stage board.
-

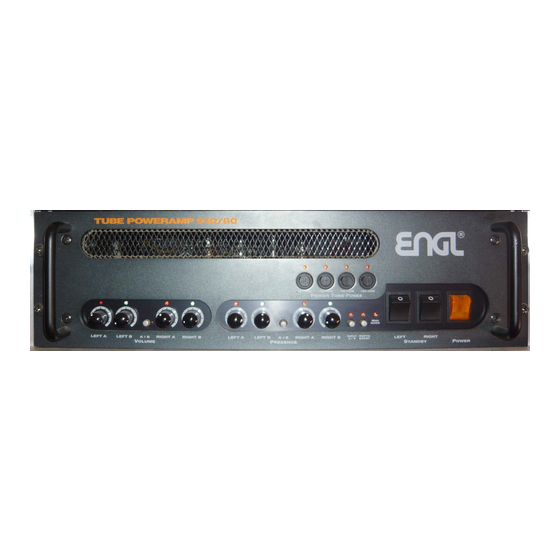

Page 4: Front Panel
27; the VOLUME A/B pushbutton is MIDI MODE deactivated once a footswitch is connected. This red LED illuminates when the ENGL VOLUME RIGHT A Interface is connected and activated; the LED volume control A for the right power amp. - Page 5 INPUT A/B (11) button. MIDI INTERFACE PORT 2.VOLUME A/B position(button not depressed): You can connect the ENGL MIDI INTERFACE Input A or B is activated via the to this jack (Sub D, 25 pins) and then execute VOLUME A/B (3) button; in this case VOLUME A/B (3), PRESENCE A/B (8), the INPUT A/B button (11) is deactivated.
- Page 6 MASTER FX LOOP: SEND RIGHT SPEAKER OUTPUT: 4 OHM Signal output right channel for the PARALLEL LEFT Master stereo FX loop. 4Z left channel speaker output jacks; Connect this output to the signal processor's internal parallel signal path for the right input/return jack via a shielded cable connection of one 4Z or two 8Z cabinets.
-
Page 7: Technical Data
Dimensions 19', 3 rack spaces, depth: 350mm (not including handles) Weight app.15 kg (930/60), 19 kg (930/120) E.C.S. (Emergency Circuit System) This circuit ensures the poweramp does not shut down completely when a single power tube failes. You can continue to play, but the affected channel's output power is reduced by 2/3rds (depending on the type of defect). -
Page 8: Handling And Care
Handling and Care Protect the poweramp from mechanical knocks (tubes!) Let the poweramp cool down before you transport it (app.10 minutes). Tubes need about 20 seconds to warm up after you switch the power on, and furtheron a few minutes before they reach their full power capability. Avoid storing the poweramp in damp or dusty rooms, they are hard on jacks, switches and potentiometers.
