- Page 1 E606SE Ironball SE Operator´s Manual...

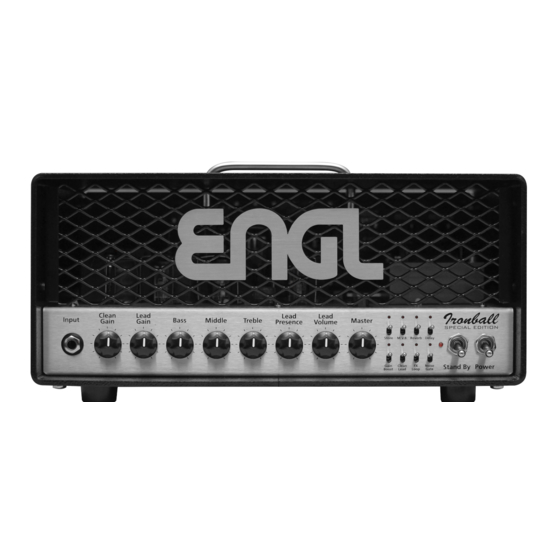

- Page 2 Input Input (conventional 6,3mm / ¼“ TS) unbalanced input. Plug your guitar in here using a shielded cord. Clean Gain Gain control for the Clean channel. Lead Gain Gain control for the Lead channel. Bass Bottom end voicing control of the preamp´s passive EQ. Middle Mid-range voicing control of the preamp´s passive EQ.
- Page 3 Store This push button is to store a setting with programmable features to a MIDI memory slot (generally called a preset). This is how it works: 1. Send a PC # message to the amp. 2. Select the desired channel and functions for the preset you want to create. 3.
- Page 4 Press this push button to activate / deactivate the Gain Boost function. The red LED above this push button lights up to indicate that the function activated. This feature can also be stored and switched via MIDI program change or controlled via the respective ENGL Z4 (TRS) footswitch connected. Clean/Lead Channel Press this push button to toggle between the Clean and the Lead channel.
- Page 5 Delay Mix This control adjusts the mix of dry signal to wet Delay signal and increases it´s intensity if you rotate it clockwise. Delay Time This control is to adjust the Delay time. The Delay LED shows you the delay time. The Delay time can also be tapped with CC #54.
- Page 6 Footswitch: Clean/Lead and Gain Boost (conventional 6.3mm / ¼“ TRS). Use this jack to connect a conventional footswitch with two switching functions, i.e. the ENGL Z4 (2 x off/on – Single Pole Single Throw or SPST for short). Tip: switching between the Clean and the Lead channel.
- Page 7 This feature is compatible with the ENGL Z9 (which we recommend to use with this amp) and the ENGL Z12 only. MIDI In This 5-pin DIN port accepts data sent by a MIDI sender (ENGL Z9, ENGL Z12) or from or routed through another MIDI device. CAUTION: Before you connect any 3 party MIDI footcontroller or effects device, always make sure that the Phantom Power switch is not engaded to avoid damaging the connected device or the amp.
- Page 8 1. Connect your the amp via a USB-B cable with your computer. 2. Power the amp up and wait until the internal memory "ENGL" is recognized and ready. 3. Now you can drag and drop the desired IR to the amps internal memory.
- Page 9 Connect the FX Loop Return (input) to a signal processor´s output or an effect pedal´s output/send jack using the shortest possible shielded cord (conventional 6,3mm / ¼“ TS). IR Selector This rotary switch allows you to select between eight different IRs. The first three are built-in ENGL IRs: 1 - ENGL E212VHB (V30) Cabinet...
- Page 10 IR Bypass Push and hold the FX Loop push button for about 2 seconds until the FX Loop LED starts to flash. Three short flashes for IR Bypass active, one long flash for IR Bypass inactive. The IR Bypass will be deactivated by selecting another IR as well.
- Page 11 Power Tube Fuses 2 x 0,08 AM (M: medium-blow) Important: Replace these with fuses of the same type and rating only! Tubes ENGL ECC83 First Quality (FQ) V2 / V3 / V4 ENGL ECC83 Selected (S) V5 / V6 ENGL EL84 Hand-matched Duet...
- Page 12 A FEW COMMENTS ON TUBE AMPLIFIERS------------------------------------------------------- Be sure to read this section before powering the amp up! This amp´s input is extremely sensitive due to its high gain factor. In combination with inherent microphonics of tubes, at certain settings this can elicit powerful feedback from the speakers – even without a guitar being connected! This occurs primarily when Crunch and Lead channels (that is, all channels whose preamp is easily overdriven) are activated and the following settings are dialed in:...
- Page 13 TROUBLESHOOTING----------------------------------------------------------------------------- The output volume fluctuates or drops: Take all effect devices (infront of the preamp and FX Loop) out of the signal chain. Check all used cables. Check the used guitar or use another guitar. Use a patch or guitar cable to patch he FX Send with the FX Return jack. Try using an external and functional power amp with the preamp of the amp (FX Send connected to an external power amp) to exclude a problem with the amp´s internal preamp.
- Page 14 Please contact us via e-mail: service@engl-amps.com before shipping a product to us. The more precise the error description is, the better our service team can help you. It is best to send us a photo of the control settings and a video recording. A detailed description of the error also helps us to isolate and locate the problem faster.
- Page 15 Using the ENGL Z9 or Z12 to control the amp. This is how it works: 1. Connect your ENGL Z9 or Z12 to the amp by a 5-pin MIDI cable. >> To use the phantom power option you need to use a 5-pin MIDI cable.
- Page 16 www.engl-amps.com...
