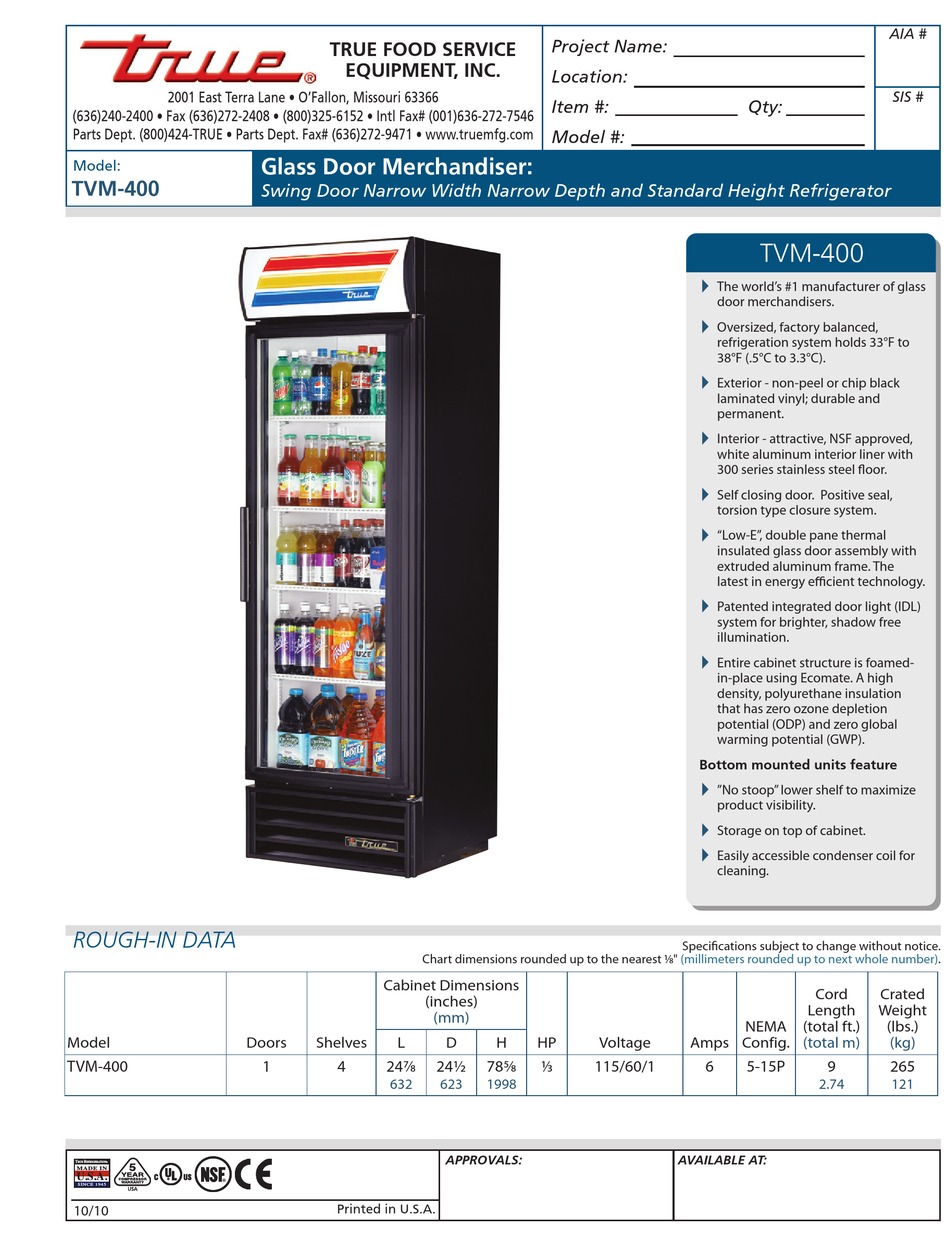

True TVM-400 Specification

2001 East Terra Lane • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TVM-400
Rough-In Data
Model Doors
TVM-400
T T R R
RUE RUE EFRIGERATION EFRIGERATION
® ®
MADE IN MADE IN
U.S.A. U.S.A.
SINCE 1945 SINCE 1945
10/10
TRUE FOOD SERVICE
EQUIPMENT, INC.
Glass Door Merchandiser:
Swing Door Narrow Width Narrow Depth and Standard Height Refrigerator
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
(mm)
Shelves L
1 4 247/8 241/2
632 623
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
D H HP Voltage
785/8 1/3 115/60/1
1998
ApprovAls:
Qty:
TVM-400

The world's #1 manufacturer of glass
door merchandisers.

Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Exterior - non-peel or chip black
laminated vinyl; durable and
permanent.

Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.

Self closing door. Positive seal,
torsion type closure system.

"Low-E", double pane thermal
insulated glass door assembly with
extruded aluminum frame. The
latest in energy efficient technology.

Patented integrated door light (IDL)
system for brighter, shadow free
illumination.

Entire cabinet structure is foamed-
in-place using Ecomate. A high
density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).
Bottom mounted units feature

"No stoop" lower shelf to maximize
product visibility.

Storage on top of cabinet.

Easily accessible condenser coil for
cleaning.
Specifications subject to change without notice.
(millimeters rounded up to next whole
Cord
Length
NEMA (total ft.)
Amps Config. (total m)
6 5-15P 9
2.74
AvAilAble At:
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
265
121
