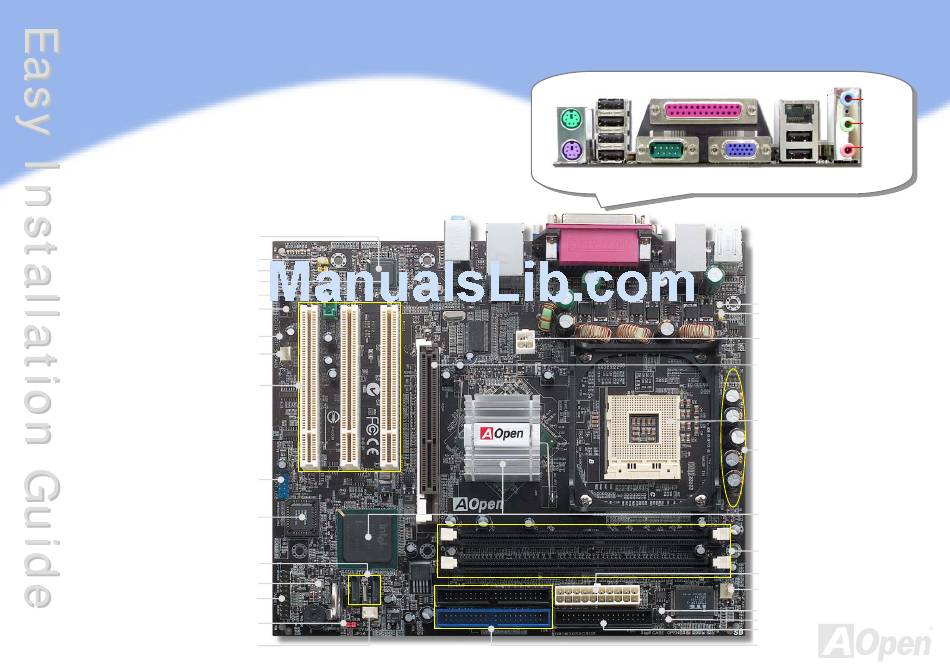

Manual
i865Gm-I / i865Gm-IL / i865GVm-I
Intel 10/100Mbps LAN Chip
(i865Gm-I&i865GVm-I)
Intel Gigabit LAN chip
(i865Gm-IL)
Front Audio Connector
Onboard AC'97 CODEC
AGP Protection LED
AUX_IN Connector
CD_IN Connector
S/PDIF Connector
SYSFAN1 Connector
32-bit PCI Expansion Slots x3
USB 2.0 Connector
DieHard BIOS Lite
Serial ATA Ports x2
Supports 150 MB/s Transfer Rate
STBY LED
Front Panel Connector
JP14 CMOS Data Clear Jumper
SYSFAN2 Connector
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
USB 2.0
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Ports
Connector
PS/2
COM Port
VGA Port
Keyboard
RJ45
LAN Jack
Line-In
Speaker
Out
MIC-In
USB 2.0 Ports
Resetable Fuse
JP28 PS2 KB/Mouse Wakeup
Jumper
4-pin 12V ATX Power Connector
AGP 8X Expansion Slot that
supports 8X AGP card(2.1GB/s)
(for i865Gm-I &i865Gm-IL)
478-pin CPU socket with Voltage
and
Frequency
Auto-detection
®
®
that supports Intel
Pentium
4
Nothwood and Prescott CPU
Functional Polymer Capacitor
Intel
865G/865GV Chipsets that
®
support 400/533/800 MHz FSB,
DDR 400/333/266 and AGP 8X
184-pin DIMMsx2 support 128bit
Dual channel DDR400/333/266
Max. To 2GB
ATX Power Connector
CPUFAN Connector
IrDA Connector
Case Open Connector
FDD Connector
IDE Connectors x 2
(ATA33/66/100 supported)
