No.31598TG
V-ONE SR
w/OS 12TG-P
Please use these supplementary instructions in conjunction with the manual included in your kit.
Page 31
41

Engine

161
5mm
165
Washer
174
3x8mm
Page 31
42
Engine
3 x 8mm
Screw
Part bags used.

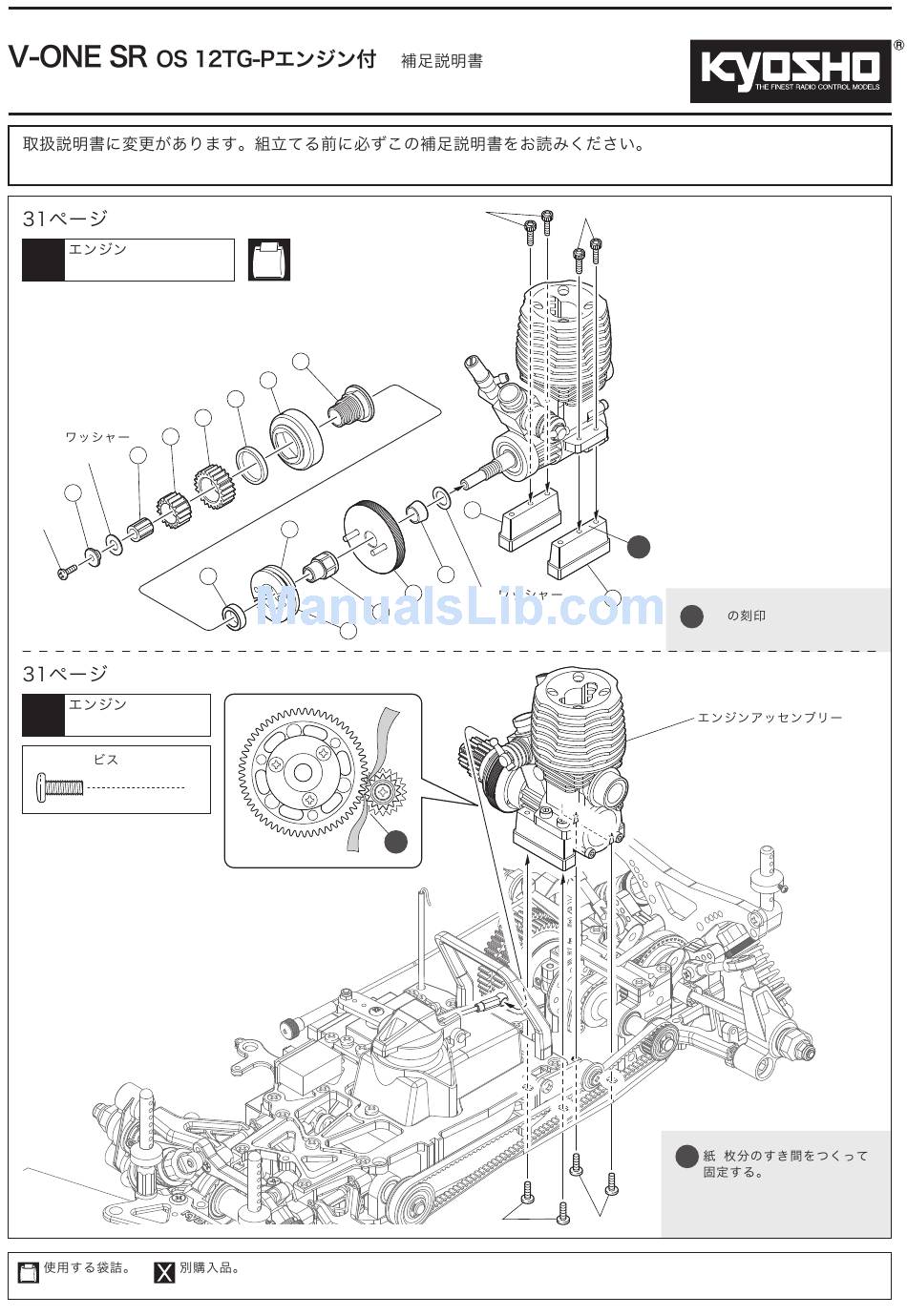

31598TG-HT01
SUPPLEMENTARY INSTRUCTION SHEET
No.10
183
159
160
162
166
164
167
4
Must be purchased separately!
3x10mm
175
157
158
7mm
181
Washer
A
3x8mm
1
3x10mm
A
185
A
OS
"OS" Inscription
Engine Assembly
A
1
Tighten the screws with
one sheet of paper inserted
between both gears.
3x8mm
