Before beginning assembly, please read these instructions thoroughly.
THE FINEST RADIO CONTROL MODELS
Thank you for purchasing the GT Limited from the MINI-Z Racer MR-03 Series.
This product is a special version of the MINI-Z Racer MR-03 Series including selected race-ready
optional parts.
Please use this instruction sheet together with the main instruction manual included with the model.
Special Features
Please refer to the instructions included with the optional parts.
The optional parts below are included as special features.
No.MZW1
Ball Bearing Set
No.MZW38-20
Racing Radial Tire (Rear: Wide 20˚)
Standard tires are not included)
No.MZW216
Friction Shock Set (RM)
No.MZW404
Carbon Rear Suspension Plate Set (for RM/HM)
Higher grade battery terminals (gold plated terminals).
Note: Spare chassis is equipped with normal type battery terminals.
© Copyright 2010 KYOSHO CORPORATION /
MZGTLIM-HS01
R
No.MZW13BL
Color Nylon Nut (Blue)
No.MZW206
Ball Differential Set
No.MZW401
Front Spring Set

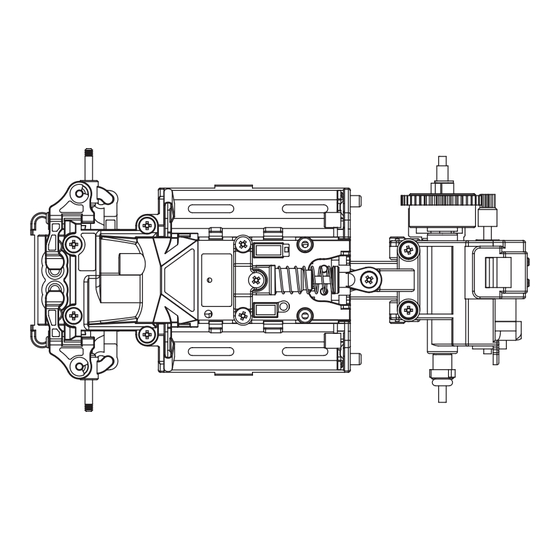

MINI-Z Racer MR-03
GT Limited
™
No.MZW37-30
Racing Radial Tire (Front: Narrow 30˚)
(Standard tires are not included)
No.MZW207
Rear Oil Shock Set
No.MZW402
Setting Tie-Rod Set
No.MZW412
SP Long King Pin Ball Set
1
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Advertisement
Related Manuals for Kyosho MINI-Z Racer MR-03 GT Limited
Summary of Contents for Kyosho MINI-Z Racer MR-03 GT Limited
- Page 1 Carbon Rear Suspension Plate Set (for RM/HM) SP Long King Pin Ball Set Higher grade battery terminals (gold plated terminals). Note: Spare chassis is equipped with normal type battery terminals. © Copyright 2010 KYOSHO CORPORATION / *SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. MZGTLIM-HS01...
-
Page 2: Included In The Box
< Optional Parts > Refer to the instructions included for details on settings for the optional parts listed below. (The chassis shown on the instractions of the optional parts are not the MR-03 but can be installed the same way.) No.MZW206 Ball Differential Set At time of shipment, the adjustable collar is only temporarily set. - Page 3 Page 10 Included in the Box Items shown below are already installed or not required. Wheel Nuts (Spare) Tie-Rod RM Chassis Set (Normal) Items below are additional. Medium Hard 0.5mm Suspension Limiter Carbon Rear Suspension Plate 2 types Chassis (GT Limited) *Option Parts Instruction Manual Front Spring 4 types Tie-Rod Set...
-
Page 4: Start Guide
Page 14 Start Guide No work required. Page 15 Except for the rear left, all 2mm and 3mm plastic bushings have been replaced with 2x6x2.5mm and 3x6x2.5mm bearings. Use the wheel wrench to remove the color nylon nuts and install wheels as per Continue to use the 2mm and 3mm plastic bushings that are installed on the rear left. -
Page 5: Exploded View
Color Set of Long King Pin Ball (MR-03) Refer to spare parts list on page 66 and 67 of the instruction manual regarding spare parts The optional parts should be used for the parts marked with not listed above. © Copyright 2010 KYOSHO CORPORATION... - Page 6 Page 60~61, 63 Exploded View MZW207 MZ409 MZ409 MZ409 MZ206B MZ408 MZW207 MZ402 MZ409 MZW220 MZ409 MZ402 MZ401 MZ409 MZ402 MZ402 MZ409 MZ402 Steering Servo MZ409 MZ409 MZ406 MZ403 MZ409 MZ401 MZ402 MZ402 MZW401 MZ401 (Wide) It is attached to the body set. MZ401 (Narrow) MZ409...
- Page 7 MZ409 MZW1 MZ6BK MZ9P MZW13BL MZW206 MZ210 MZW1 MZW206 MZ210 MZW1 MZW206 MZ403 MZ409 MZ6BK MZW404 MZW13BL MZ409 MZ409 MZ210 MZ6BK 0.5mm 0.8mm MZ402 MZ402 Optional parts should be used for the parts marked with © Copyright 2010 KYOSHO CORPORATION...
- Page 8 THE FINEST RADIO CONTROL MODELS www.kyosho.com www.mini-z.jp/ *SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. © Copyright 2010 KYOSHO CORPORATION / PRINTED IN JAPAN 61921005-1...
