Loading Film - Microtek ScanMaker i460 Supplement Manual

Ensure that the calibration
window is kept clear and
free from any obstruction for
successful calibration and
best image results.
Ensure that the calibration
window is kept clear and
free from any obstruction for
successful calibration and
best image
12 ScanMaker i460 Supplement
II. Loading Film

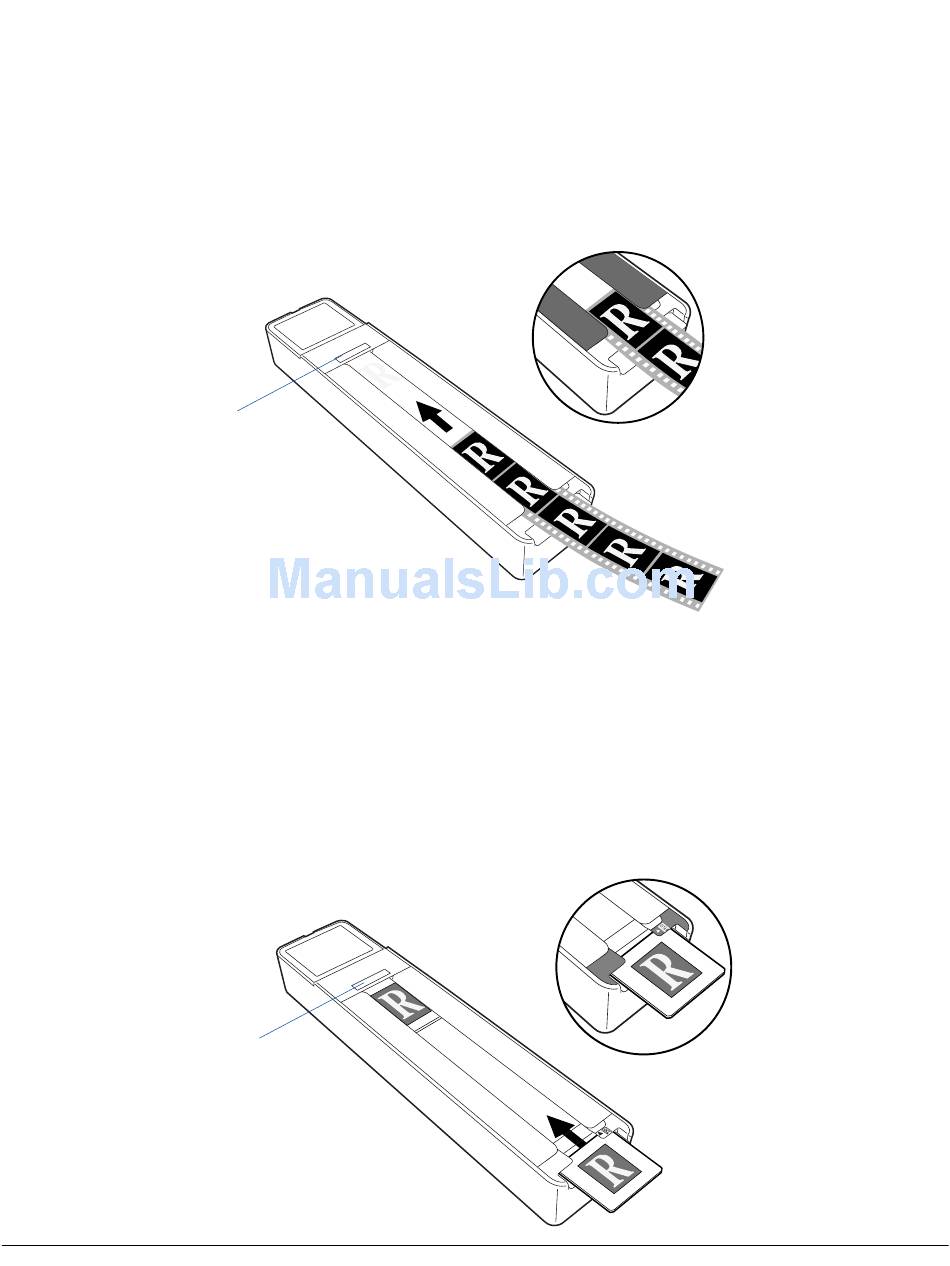

To load filmstrips:
• Turn the LightLid 35 IV over. Load the filmstrip inside the upper slot of the
LightLid, with the film's shiny base facing up.
The filmstrip should be inserted inside the slot specifically allotted for film, as
shown in the illustration.
To load slides:
• Turn the LightLid 35 IV over. Load the slide inside the lower slot of the LightLid,
with the slide facing up.
The slides should be inserted inside the slots specifically allotted for slides, as
shown in the illustration.
results.
.
The upper slot is for
loading 35mm filmstrips
The lower slot is for
loading 35mm slides
