Scan Frame, Image Size, and Unit of
Measurement
The scan farme settings affect your output image size, while a desired unit of
measurement provides you to get the correct size of the scan frame.
A. Scan Frame settings

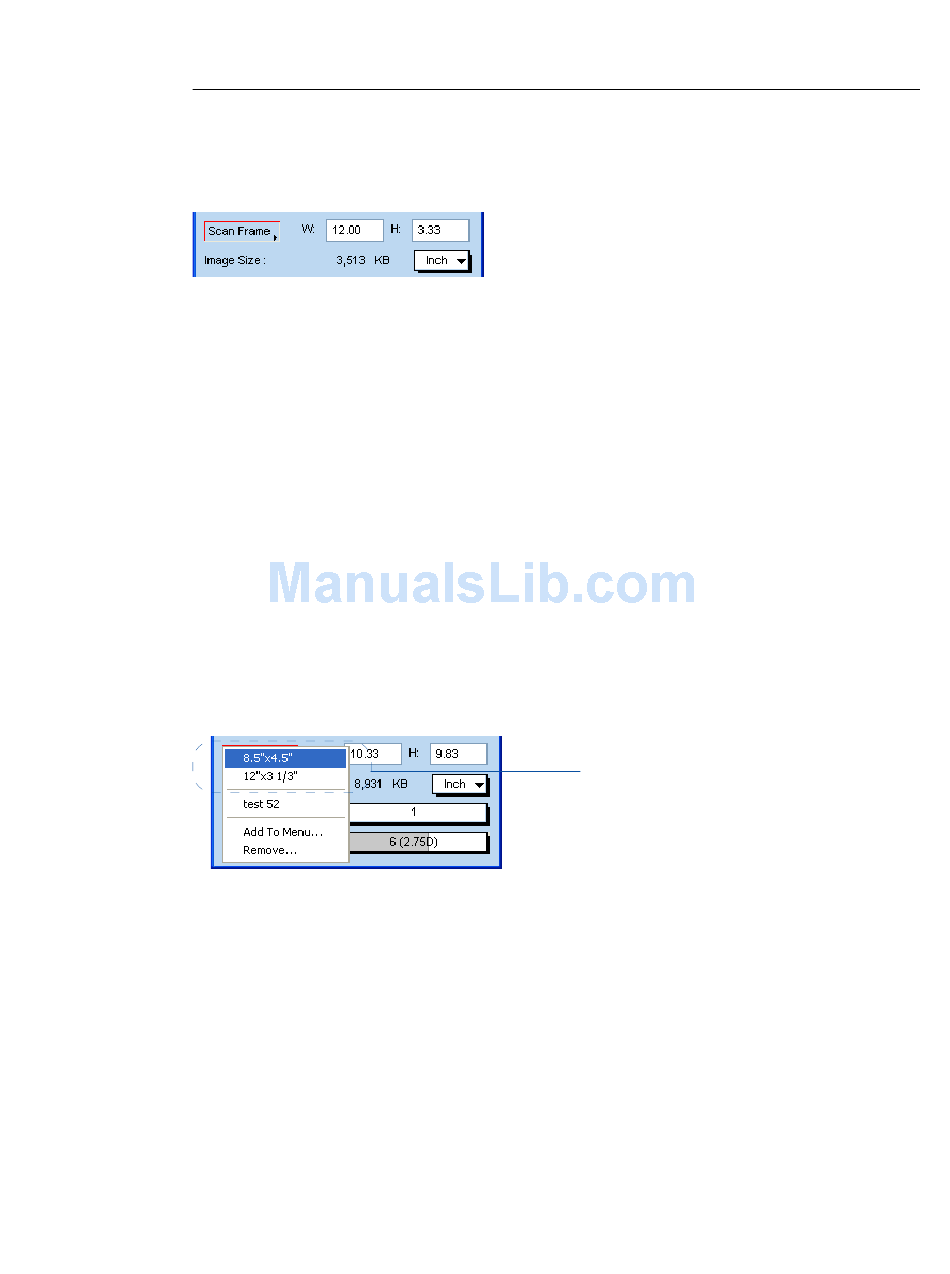

The Scan Frame settings (width and height) represent the area on the scan bed
that you wish to scan.
• Specify scan frame settings
If you purchase a specific scanner model (ex. MII-900 Plus), when you activate
the Settings window of the ScanWizard Industry, you can choose from a list of
predefined Scan Frame settings which are designed for the tailor-made holders
came with your scanner. To do this, click "Scan Frame" in the Settings window,
and choose a value you want from the drop-down menu. You can use the
predefined Scan Frame settings directly if you scan the film with the bundled
holder.
Predefined Scan Frame settings
If you do not want to scan the film with the holder and want to define your own
scan frame, enter the dimensions manually in the width and height edit boxes; or
use the Scan Frame (Frame) tool to define or resize your scan frame. Changes
made in the Preview window are automatically displayed in the Scan Frame
setting edit boxes.
