Weber Vieluxe Slide-In Dual Burner Station Installation Manual

Weber Vieluxe Slide-In Dual Burner Station Installation Manual

Built-in liquid propane burner station
Hide thumbs Also See for Vieluxe Slide-In Dual Burner Station:

Advertisement

Quick Links

Download this manual See also: Owner's Manual

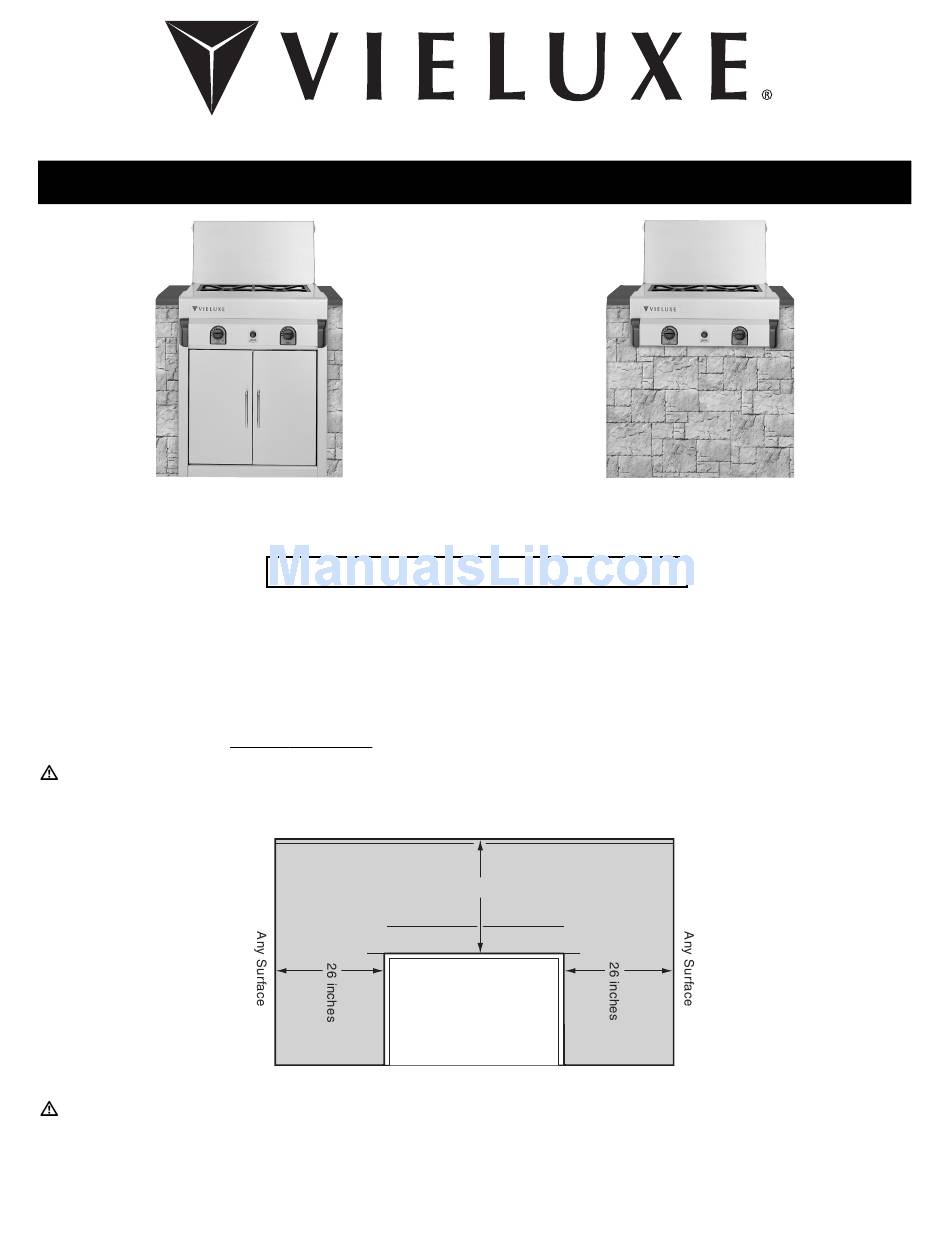

Built-In Liquid Propane Burner Station Installation Guide
Vieluxe
®
Slide-In Dual Burner Station
(Model #: 36251)
LOCATING YOUR BURNER STATION
When determining a suitable location for your burner station installation, give attention to concerns such as exposure to
wind, proximity to traffic paths, and keeping any gas supply lines as short as possible. Never locate the Vieluxe
station in a garage, breezeway, shed, under an unprotected overhang, or other enclosed area. Locate the burner station
and structure so there is enough room to safely evacuate the area in case of a fire.
CLEARANCE FROM COMBUSTIBLE SURFACES OR STRUCTURES
WARNING: Clearance from any surface or structure is 26 inches from the back and sides of
the burner station. Refer to "Typical Gas Supply Installation" before starting installation.
WARNING: The structure, "island" countertops, and adjacent work areas for the built-in
burner station installation must be built from non-combustable materials only.
NOTE: If you have questions on what materials are considered non-combustable, contact you
local building supplier or fire department
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
Side Burner
.
Vieluxe
®
Countertop Dual Burner Station
(Model #: 37251)
26 inches Any Surface
®
burner
61270 021304

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vieluxe Slide-In Dual Burner Station and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber Vieluxe Slide-In Dual Burner Station

Summary of Contents for Weber Vieluxe Slide-In Dual Burner Station

  • Page 1 Built-In Liquid Propane Burner Station Installation Guide Vieluxe ® Countertop Dual Burner Station Vieluxe ® Slide-In Dual Burner Station (Model #: 37251) (Model #: 36251) THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY. LOCATING YOUR BURNER STATION When determining a suitable location for your burner station installation, give attention to concerns such as exposure to wind, proximity to traffic paths, and keeping any gas supply lines as short as possible.

  • Page 2: Countertop Cutout Dimensions

    BUILT-IN STRUCTURE CUTOUT DIMENSIONS Slide-In Burner Station Countertop Burner Station SLIDE-IN CUTOUT DIMENSIONS COUNTERTOP CUTOUT DIMENSIONS Countertop Slide-In Burner Burner Station Tolerances Station Tolerances ⁄ ⁄ ⁄ ” ⁄ ⁄ ” ⁄ ⁄ ⁄ ⁄ ” ⁄ 36” ⁄ ⁄ ⁄...
  • Page 3 BUILT-IN GAS LINE LOCATIONS Plan View Plan View Front of Burner Station Structure Front of Burner Station Structure Front View Front View SLIDE-IN BURNER STATION COUNTERTOP BURNER STATION GAS LINE DIMENSIONS GAS LINE DIMENSIONS Slide-In Countertop Burner Burner Station Tolerances Station Tolerances ⁄...
  • Page 4 TYPICAL BULK PROPANE Gas line piping ■ Refer to the piping chart at the bottom of the page. GAS SUPPLY ■ The corrugated gas line from the manifold is INSTALLATION 48 inches long. Do not extend the gas line. ■ We have provided the means to make an SAE 45° WE RECOMMEND THAT THIS INSTALLATION BE flare connection.
  • Page 5 TYPICAL BULK PROPANE TYPICAL 20LB PROPANE GAS SUPPLY GAS SUPPLY INSTALLATION (CONT.) INSTALLATION We strongly recommend that you use the Vieluxe ® Tank Gas line piping (continued) Cabinet (#36299) for installations using a 20 lb LP ■ Copper tubing must be tin-lined if the gas contains cylinder, mounted remotely in an “island”...
  • Page 6 2. Ventilation openings (a hole or group of holes, for 3. The minimum size of the ventilation hole (s) should the purpose of ventilation) should be provided at not be less than 1/4 inch. floor level. The ventilation openings should have a d.

  • Page 7: Connect Gas Supply

    Test connections CONNECT GAS SUPPLY All connections and joints must be thoroughly tested for A 48" inch corrugated gas line is supplied with the grill. leaks in accordance with local codes and all listed This line needs to pass through the gas inlet opening to procedures in the latest edition of ANSI Z223.1/NFPA 54.
  • Page 8 SLIDE-IN BURNER 5) Lower the burner station by adjusting the feet until the burner station frame is resting firmly on the STATION INSTALLATION "island" countertop. Note: Make sure that the burner station is level on the CAUTION: Use two people to lift and install the "island"...
  • Page 9 COUNTERTOP BURNER 6) Attach the Countertop Burner Station to the "island" structure by driving screws into the "island" structure STATION INSTALLATION frame. Place the screws in slots located under both sides of the burner station control panel. CAUTION: Use two people to lift and install the Vieluxe ®...
  • Page 10 © 2004 Weber-Stephen Product Co.. Vieluxe ® is a registered U.S. trademark of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL 60067-6266. U.S.A. 1-866-VIELUXE...
