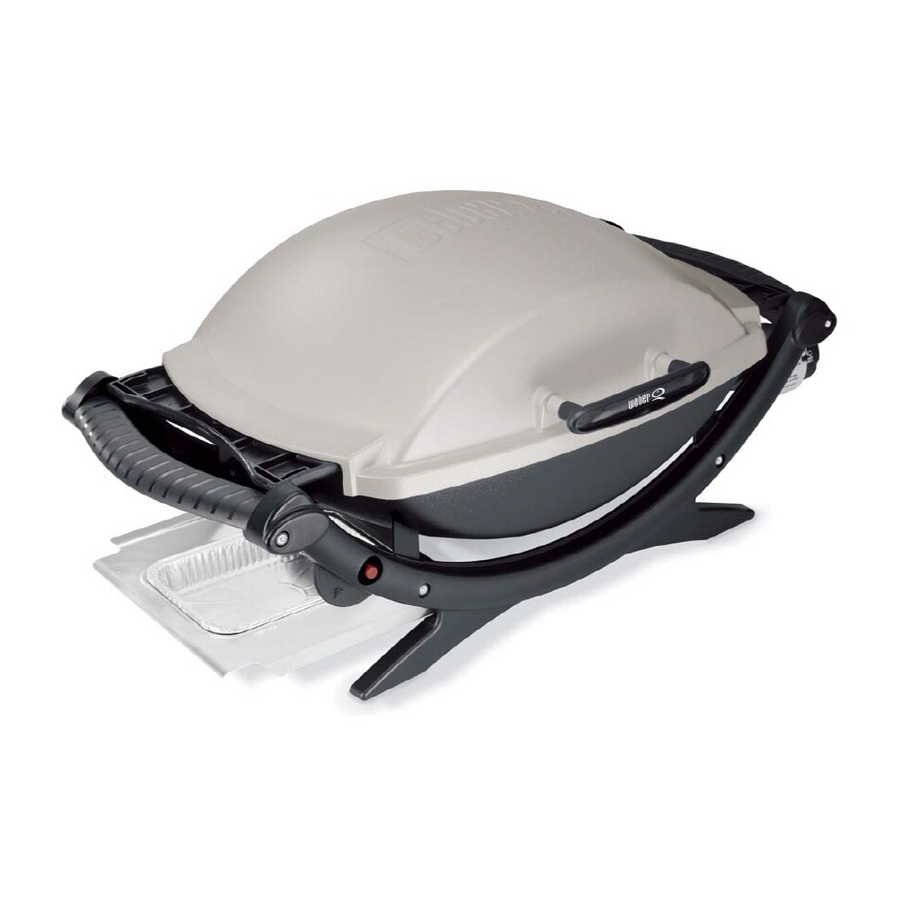

LP Gas Grill Owner's Guide
Register your grill online at www.weber.com
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odour continues, keep away from the
appliance and immediately call your gas
supplier or your fire service.
Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury or
death.
THIS GAS APPLIANCE IS INTENDED FOR
OUTDOOR USE ONLY.
m This instruction manual contains important information necessary for the proper assembly
and safe use of the appliance.
m Read and follow all warnings and instructions before assembling and using the appliance.
m Follow all warnings and instructions when using the appliance.
m Keep this manual for future reference.
Q - 100/120
845BP-0005
PLACE STICKER HERE
Q - 200/220
048BN-0047
m DANGER
1. Never operate this appliance unattended.
2. Do not store spare liquid propane
cylinder within 3m (10 feet) of this
appliance.
3. Do not store or use petrol or other
flammable liquids or vapours within 8m
(25 feet) of this appliance.
4. If a fire should occur, keep away from the
appliance and immediately call your fire
service. Do not attempt to extinguish an
oil or grease fire with water.
Failure to follow these instructions could
result in fire, explosion or burn hazard,
which could cause property damage,
personal injury or death.
#54340
54340 09/17/10 LP
GB - INT. ENGLISH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weber 100
Summary of Contents for Weber 100
- Page 1 LP Gas Grill Owner’s Guide #54340 PLACE STICKER HERE Register your grill online at www.weber.com m DANGER m DANGER If you smell gas: 1. Never operate this appliance unattended. 1. Shut off gas to the appliance. 2. Do not store spare liquid propane 2.
-
Page 2: Dangers And Warnings
Warning: Make sure you are outdoors and away from any m Do not use charcoal, briquettes or lava rock in your Weber source of ignition when changing or connecting the butane/ ® gas barbecue. -
Page 3: Table Of Contents
OPERATING........... . . 10 WEBER ®... -
Page 4: Exploded View Q100
EXPLODED VIEW Q100 Q100_FR_LP_070110 Handle Spacer Handle Cooking Grate Igniter Electrode Assembly Burner Tube Cookbox Carrying Handle Rear Cradle 10. Front Cradle Igniter 12. Hose Bracket 13. Disposable Drip Pan 14. Catch Pan 15. Valve, Hose and Regulator Assembly 16. Control Panel Control Knob 18. -
Page 5: Exploded View Q120
18. Valve, Hose and Regulator Assembly 19. Control Panel 20. Control Knob 21. Q Stand Retention Clips ® 22. Q Stand Table ® 23. Q Stand Legs ® 24. Q Stand Skirt Clips ® 25. Q Stand Skirt ® WWW.WEBER.COM ®... -
Page 6: Exploded View Q200
EXPLODED VIEW Q200 Q200_EURO_LP_060210 Handle Spacer Handle Cooking Grate Igniter Electrode Assembly Left Side Table Right Side Table Assembly Burner Tube Cookbox 10. Carrying Handle Rear Cradle 12. Front Cradle 13. Igniter 14. Hose Bracket 15. Disposable Drip Pan 16. Catch Pan Valve, Hose and Regulator Assembly 18. -
Page 7: Exploded View Q220
18. Valve, Hose and Regulator Assembly 19. Control Panel 20. Control Knob 21. Q Stand Retention Clips ® 22. Q Stand Table ® 23. Q Stand Legs ® 24. Q Stand Skirt Clips ® 25. Q Stand Skirt ® WWW.WEBER.COM ®... -
Page 8: Parts List
JARN & GLER WHOLESALE EHF BELGIUM The Four Columns PH: 32.2.367.1611 Skutuvogur 1H Broughton Hall Business Park 1-104 Reykjavik Skipton WEBER-STEPHEN CZ & SK spol. s r.o. ICELAND North Yorkshire U Hajovny 246 PH: 354.58.58.900 BD23 3AE 25243 Pr ˚ uhonice United Kingdom D&S IMPORTS... -
Page 9: Assembly
ASSEMBLY WWW.WEBER.COM ®... -
Page 10: Warranty
Customer Service Representative in your region using the contact information sheet Weber does not authorise any person or company to assume for it any other obligation provided with your manual. If Weber confirms the defect and approves the claim, Weber or liability in connection with the sale, installation, use, removal, return, or replacement will elect to replace such parts without charge. -
Page 11: Gas Instructions - Liquid Propane Cylinder
Hose/Reg Norway/Finland 41619 m IMPORTANT NOTICE: We recommend that you replace the gas hose on your Weber gas barbecue every 5 years. Some countries may have requirements that the gas hose be replaced within less than 5 years, thus that country’s requirement would take precedence. -
Page 12: Check For Gas Leaks
If a leak persists after re-tightening the fitting, turn off the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber. ® E) Regulator-to-cylinder connection (2). -
Page 13: Refilling The Liquid Propane Cylinder
LP cylinder is reconnected. For example, test each time the LP cylinder is refilled. • Be sure the regulator is mounted with the small vent hole pointed downward so that it will not collect water. This vent should be free of dirt, grease, insects etc. ◆ WWW.WEBER.COM ®... -
Page 14: Before Using The Barbecue
WARNING: Always check hose before using barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorised replacement hose. Contact ® the Customer Service Representative in your area using the contact information on our web site. -
Page 15: Ignition Instructions
A. - LOW TO EXTINGUISH Push in and turn burner control knob clockwise to the OFF position. ◆ B. - MED C. - START/HIGH D. - OFF WWW.WEBER.COM ®... -
Page 16: Manual Ignition
PREHEATING THE BARBECUE COOKING Light the Weber gas barbecue according to the ignition instructions in this owner’s A light coating of oil will help brown your food evenly and keep it from sticking to the manual. Close the lid. Preheat the barbecue for 5-10 minutes (depending on conditions cooking grate. - Page 17 Let thick chops and steaks rest for 5 to 10 minutes before carving. The internal temperature of the meat will rise by 5 to 10 degrees during this time. For more barbecuing tips and recipes, visit www.weber.com ® ◆...
-
Page 18: Troubleshooting
THIS IS NOT A DEFECT. If problems cannot be corrected using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ®... -
Page 19: Maintenance
SPIDER/INSECT SCREENS ® Your Weber gas barbecue, as well as any outdoor gas appliance, is a target for spiders m WARNING: Turn your Weber gas barbecue OFF and wait for ® ® and other insects. They can nest in the venturi section (1) of the burner tube. This blocks it to cool before cleaning. -
Page 20: Burner Tube Cleaning Or Replacement
MAINTENANCE BURNER TUBE CLEANING OR REPLACEMENT You will need: a flathead screwdriver. A) Your Weber barbecue must be OFF and cool. ® ® B) Turn gas OFF at source. C) Open the lid. D) Remove cooking grate. Burner Tube Removal E) Remove the ¼-20 x ½... -
Page 21: Push-Button Ignition System Operations
• Verify that the ignition button pushes in, clicks and returns to the out position. If the ignition system still fails to light, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® ◆... -
Page 22: Annual Maintenance
Insect screen and burner is clean, replace the burner. If the Spider/Insect screen becomes damaged or cannot be cleaned, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® Main Burner Flame Pattern... - Page 23 MEMO WWW.WEBER.COM ®...
- Page 24 ATTENTION: This product has been safety-tested and is only certified for use in a specific country. Refer to country designation located on outside of box. These parts may be gas-carrying or gas-burning components. Please contact Weber-Stephen Products Co., Customer Service Department for genuine Weber-Stephen Products Co. replacement part(s) information.
