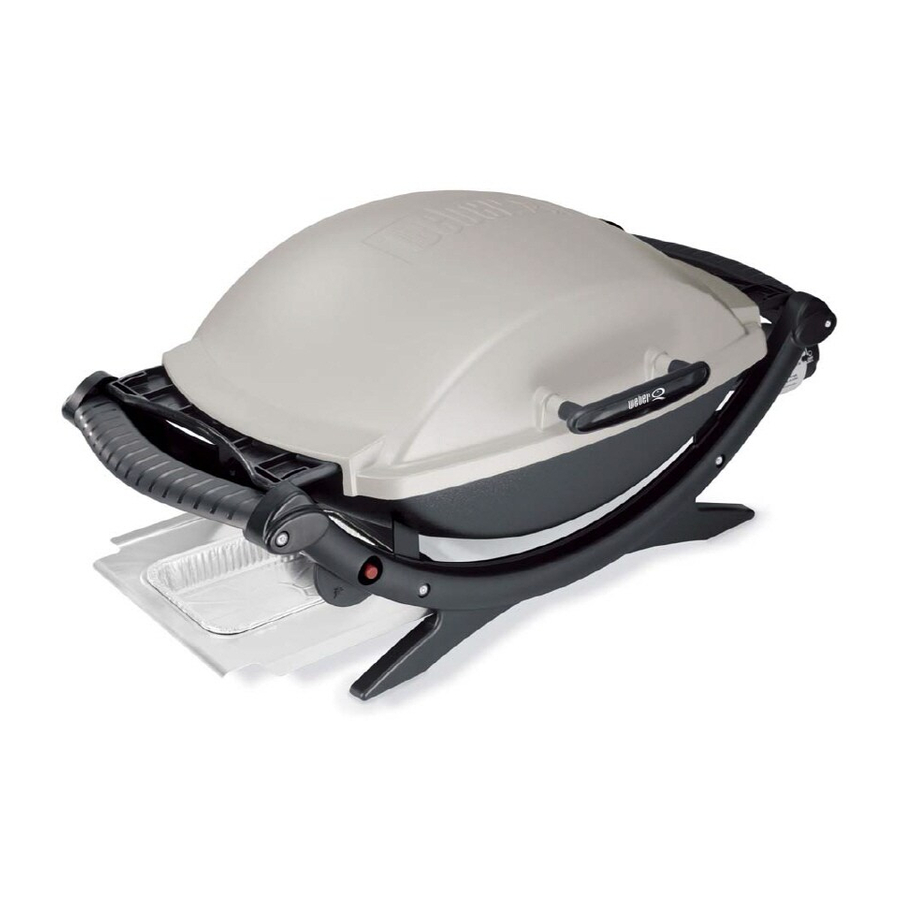

Weber 100 Owner's Manual

Weber 100 Owner's Manual

Lp gas grill
Hide thumbs Also See for 100:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

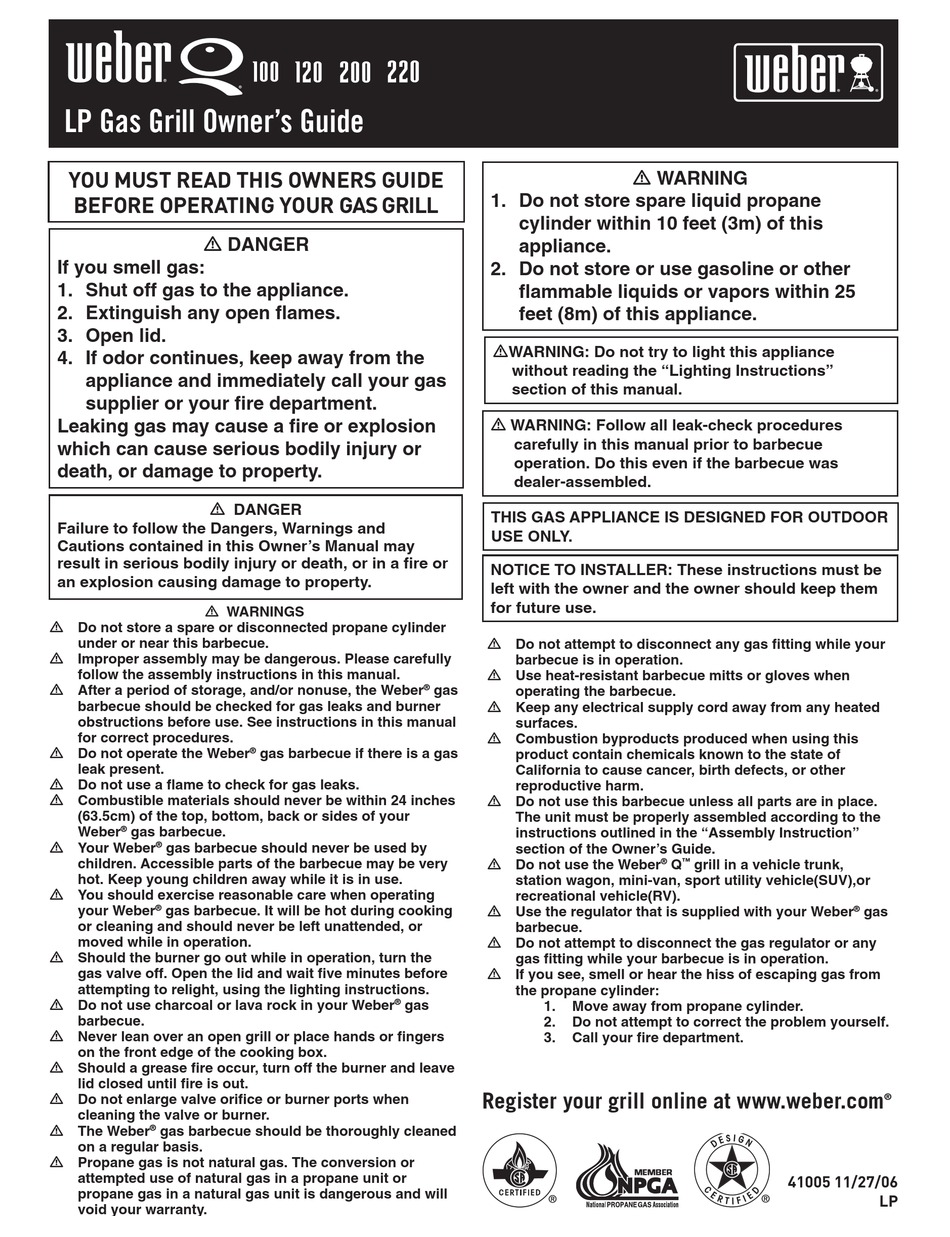

LP Gas Grill Owner's Guide
You must read this owners Guide
before operatinG Your Gas Grill
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
Leaking gas may cause a fire or explosion
which can cause serious bodily injury or
death, or damage to property.
m DANGER
Failure to follow the Dangers, Warnings and
Cautions contained in this Owner's Manual may
result in serious bodily injury or death, or in a fire or
an explosion causing damage to property.
m WARNINGS
m Do not store a spare or disconnected propane cylinder
under or near this barbecue.
m Improper assembly may be dangerous. Please carefully
follow the assembly instructions in this manual.
m After a period of storage, and/or nonuse, the Weber
barbecue should be checked for gas leaks and burner
obstructions before use. See instructions in this manual
for correct procedures.
m Do not operate the Weber
leak present.
m Do not use a flame to check for gas leaks.
m Combustible materials should never be within 24 inches
(63.5cm) of the top, bottom, back or sides of your
Weber
gas barbecue.
®
m Your Weber
gas barbecue should never be used by
®
children. Accessible parts of the barbecue may be very
hot. Keep young children away while it is in use.
m You should exercise reasonable care when operating
your Weber
gas barbecue. It will be hot during cooking
®
or cleaning and should never be left unattended, or
moved while in operation.
m Should the burner go out while in operation, turn the
gas valve off. Open the lid and wait five minutes before
attempting to relight, using the lighting instructions.
m Do not use charcoal or lava rock in your Weber
barbecue.
m Never lean over an open grill or place hands or fingers
on the front edge of the cooking box.
m Should a grease fire occur, turn off the burner and leave
lid closed until fire is out.
m Do not enlarge valve orifice or burner ports when
cleaning the valve or burner.
m The Weber
®
gas barbecue should be thoroughly cleaned
on a regular basis.
m Propane gas is not natural gas. The conversion or
attempted use of natural gas in a propane unit or
propane gas in a natural gas unit is dangerous and will
void your warranty.
®
gas barbecue if there is a gas
®
gas
®
1. Do not store spare liquid propane
cylinder within 10 feet (3m) of this
appliance.
2. Do not store or use gasoline or other
flammable liquids or vapors within 25
feet (8m) of this appliance.
mWARNING: Do not try to light this appliance
without reading the "Lighting Instructions"
section of this manual.
m WARNING: Follow all leak-check procedures
carefully in this manual prior to barbecue
operation. Do this even if the barbecue was
dealer-assembled.
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR
USE ONLY.
NOTICE TO INSTALLER: These instructions must be
left with the owner and the owner should keep them
for future use.
m Do not attempt to disconnect any gas fitting while your
barbecue is in operation.
m Use heat-resistant barbecue mitts or gloves when
gas
operating the barbecue.
m Keep any electrical supply cord away from any heated
surfaces.
m Combustion byproducts produced when using this
product contain chemicals known to the state of
California to cause cancer, birth defects, or other
reproductive harm.
m Do not use this barbecue unless all parts are in place.
The unit must be properly assembled according to the
instructions outlined in the "Assembly Instruction"
section of the Owner's Guide.
m Do not use the Weber
station wagon, mini-van, sport utility vehicle(SUV),or
recreational vehicle(RV).
m Use the regulator that is supplied with your Weber
barbecue.
m Do not attempt to disconnect the gas regulator or any
gas fitting while your barbecue is in operation.
m If you see, smell or hear the hiss of escaping gas from
the propane cylinder:
1.
Move away from propane cylinder.
2.
Do not attempt to correct the problem yourself.
3.
Call your fire department.
Register your grill online at www.weber.com
m WARNING
Q
grill in a vehicle trunk,
®
41005 11/27/06
gas
®
®
lp

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weber 100

  • Page 1 Open the lid and wait five minutes before attempting to relight, using the lighting instructions. m Do not use charcoal or lava rock in your Weber barbecue. m Never lean over an open grill or place hands or fingers on the front edge of the cooking box.
  • Page 2: General Instructions

    National Fuel Gas Code: ANSI Z 223.1/NFPA54. • The pressure regulator supplied with the Weber gas grill must be used. This regulator is set for 11 inches of water column (pressure).
  • Page 3: Table Of Contents

    Parts List • Liste de vues écLatée • Lista de Piezas lid - 1 Tapa - 1 Couvercle - 1 disposable drip pan - 2 Catch pan - 1 Recipientes para escurrimientos Recipiente recibidor - 1 desechables - 2 Lèchefrite - 1 Contenant jetable - 2 Hinge pin - 2 Handle - 1...
  • Page 4: Gas Instructions

    OFF the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com 2) Valve to-regulator connections. m WARNING: If there is a leak at connection (2) turn OFF the gas.
  • Page 5 OFF the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com Check: 2) Valve to-regulator connections. m WARNING: If there is a leak at connection (2) turn OFF the gas.
  • Page 6: Annual Maintenance

    Lightly tap the burner to get debris and dirt out of the burner tube. Once the spider/insect screen and burner is clean replace the burner. If the spider/insect screen becomes damaged or cannot be cleaned, call Weber-Stephen Products Customer Service for replacement parts.
  • Page 7 Replacing Burner tube 1) Your Weber grill must be OFF and cool. ® ™ 2) Unscrew and remove propane cylinder from the valve/regulator assembly. 3) Open the lid. 4) Remove cooking grate. 5) Unscrew and remove the 1/4 x 20 inch stainless steel hex nut and stainless steel washer that holds the burner tube inside the cook box(a).
  • Page 8: Tapa

    Consulte las instrucciones que se incluyen en este manual para obtener los procedimientos correctos. m No opere el asador a gas Weber ® existe una fuga de gas. m No utilice una llama para revisar fugas de gas.
  • Page 9: Instrucciones Generales

    Coloque las tapas antipolvo sobre las bocas de salida de la válvula del cilindro cuando éste no se esté usando. • Se debe revisar si el asador a gas Weber tiene fugas ® de gas y cualquier obstrucción en los tubos del quemador antes de utilizarlo.
  • Page 10: Instrucciones Sobre El Gas

    Estas partes pueden ser componentes que transporten gas o lo quemen. Por favor póngase en contacto con el Departamento de Atención al Cliente de Weber-Stephen Products Co. para obtener información sobre las partes de repuesto Weber-Stephen Products Co. genuinas. m ADVERTENCIA: No trate de realizar reparación...
  • Page 11: Instrucciones De Operación

    DESCONECTE el gas. NO PONGA EN FUNCIONAMIENTO LA PARRILLA. Contacte al Representante de Servicio a los Clientes en su región usando la información de contacto en nuestro sitio en la Internet. Conéctese a www.weber.com Revise: 2) Las conexiones de la válvula hacia el regulador.
  • Page 12 Weber Su asador a gas Weber , así como cualquier otro aparato de gas para exteriores, es un ®...
  • Page 13: Mantenimiento Anual

    Si el filtro contra arañas e insectos llegara a dañarse o no se pudiera limpiar, llame a Servicio al cliente de Productos Weber-Stephen para obtener partes de reemplazo. Molde principal del Quemador de llama El quemador del asador a gas Weber ha sido configurado en fábrica para la correcta...
  • Page 14: Couvercle

    Voir les instructions de ce guide pour connaître les bonnes procédures. m Ne faites pas fonctionner le barbecue à gaz Weber de fuite de gaz. m Ne vous servez pas d’une flamme pour rechercher des fuites de gaz.
  • Page 15: Contenant Jetable

    être utilisé à cette fin. • Ne laissez pas le barbecue à gaz Weber surveillance. Ne laissez jamais les enfants et les animaux approcher du barbecue à gaz Weber •...
  • Page 16 Ces pièces peuvent contenir du gaz ou être des éléments dont la combustion produit du gaz. Veuillez consulter le Service clientèle de Weber-Stephen Products Co. pour des renseignements sur les pièces de rechange originales de Weber-Stephen Products Co.. m MISE EN GARDE : Ne tentez pas d’effectuer des réparations sur des éléments contenant du gaz ou...
  • Page 17 COUPEZ l’alimentation en gaz. NE VOUS SERVEZ PAS DU BARBECUE. Contacter le représentant du Service à la clientèle de votre région figurant dans la page de contacts sur notre site web. Aller sur www.weber.com Vérifiez: 2) Les raccordements du robinet au détendeur.
  • Page 18 Moustiquaires contre les araignées et les Moustiques Weber Votre barbecue à gaz Weber , comme tous les appareils utilisés en extérieur, représente ®...
  • Page 19: Entretien Annuel

    Si la moustiquaire contre les araignées et les insectes est endommagée et ne peut pas être nettoyée, contactez le service à la clientèle de Weber-Stephen Products pour commander les pièces de rechange.
  • Page 20: Recipiente Recibidor

    Clean burner. (See Section “Annual Maintenance”.) Use a small paper clip to unclog any dirty ports. Solución Limpie el filtro contra insectos y arañas de Weber (Consulte la Sección “Mantenimiento anual”) Reemplace el cilindro de propano Si puede encender el quemador con un fósforo, entonces revise el sistema de...
  • Page 21: Warranty

    Representante de Servicio al cliente de su región, por medio de la hoja de información de contacto que se proporciona con este manual. Si Weber confirma el defecto y aprueba el reclamo, Weber elegirá reemplazar dichas partes sin costo alguno. Si se le solicita devolver partes defectuosas, los costos por transporte se pagarán por anticipado.
  • Page 22 ©2007 The following trademarks are registered in the name of Weber-Stephen Products Co., an Illinois corporation, located at 200 East Daniels Road, Palatine, Illinois 60067 U.S.A. Australia; Smokey Joe, Weber, Kettle Silhouette Grill Configuration, Botswana; Weber, Canada; Smokey Joe, Genesis, China; Kettle Silhouette France;...
  • Page 23 Printemps. Été. Automne. Hiver. Vous recevrez quatre exemplaires GRATUITS de Weber Nation™, notre lettre d’information électronique contenant toutes les actualités sur les grillades. Chaque numéro regorge d’astuces et de conseils pour les grillades, de recettes éprouvées, plus tout ce que vous devez savoir pour devenir un véritable Gourou des grillades Weber. Pour activer votre inscription, il vous suffit de vous connecter sur www.weber.com...
  • Page 24 $35,000-$39,999 $40,000-$44,999 $45,000-$49,999 $50,000-$59,999 plaCe stiCKer here / ColoQue la etiQueta adhesiVa aQuÍ / plaCeZ l’autoCollant iCi  ©2006 Weber-Stephen Products Co. All rights reserved. Printed in U.S.A. For purchases made in the U.S.: Para compras hechas en los Estados Unidos: P.O. Box 1999 Pour les achats effectués aux États-Unis: Palatine, IL 60078-1999 For purchases made in Mexico: Para compras hechas en México: Pour les achats effectués au Mexique: For purchases made in Canada: Para compras hechas en Canadá:...
