FEATURE CHART
4
@
!
$
^
%
&
*
(
! ICE TRAY
@ F SHELF (MOVABLE)
# FREEZER TEMPERATURE
CONTROL KNOB
$ ICE BOX
% LAMP COVER

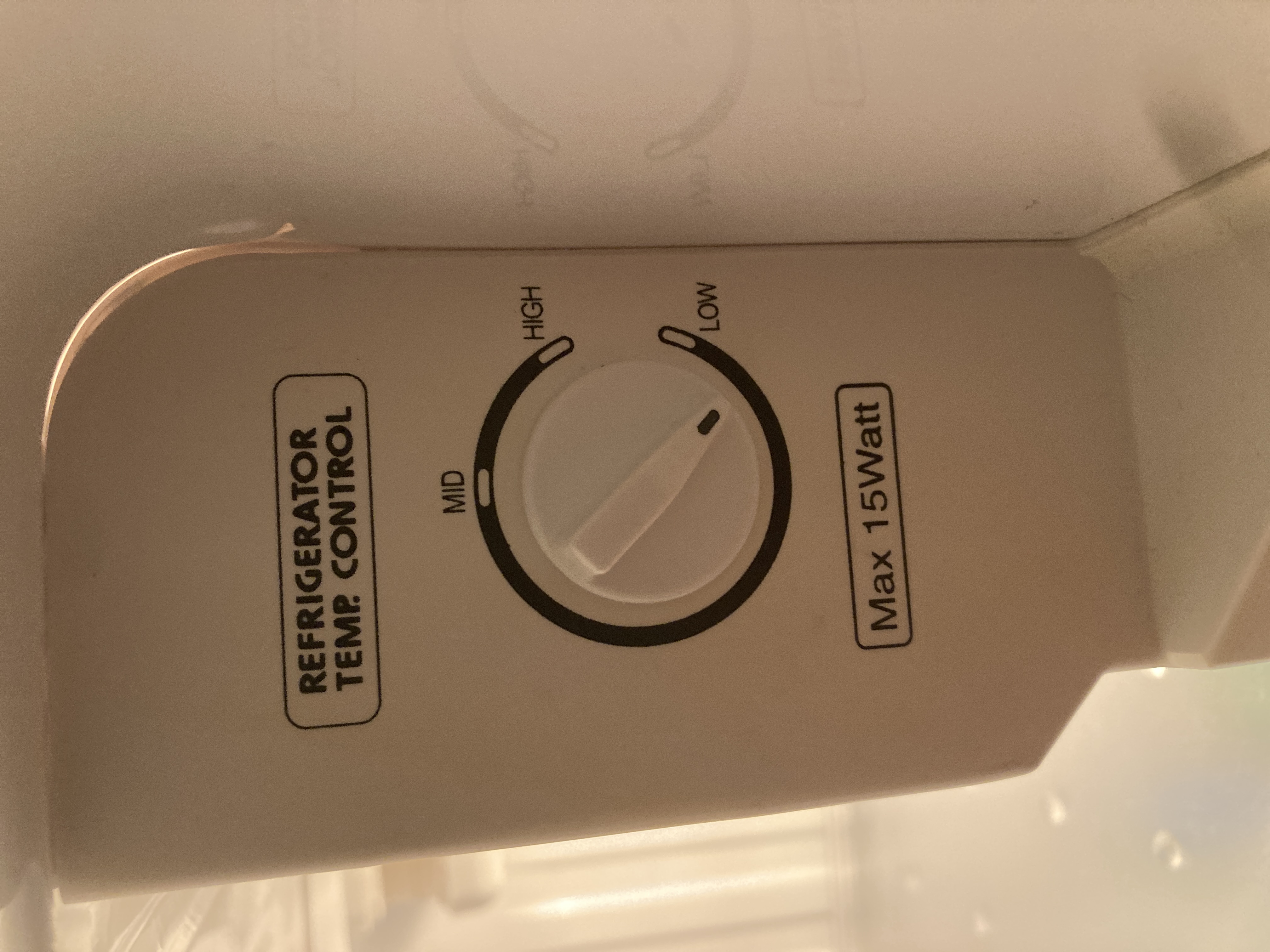

^ REFRIGERATOR
TEMPERATURE
CONTROL SWITCH
& R SHELF (MOVABLE)
* VEGETABLE CASE COVER
1
#
)
1
2
3
( VEGETABLE CASE
) F POCKET
1 EGG CASE
2 EGG POCKET
3 R POCKET
4 TOP TABLE
Here are the features of your new refrigerator.
Take a moment to know all the features designed for the convenience of
the user.
Ice tray
Fill 3/4 of the ice tray with water, as the volume expands when the water is frozen. Place
the tray in the freezer compartment. To release ice cubes, twist the ice tray slightly. Ice
cubes will be easier to remove if it is held for a short while under running water.
Movable refrigerator and freezer shelves
Storage shelves should be adjusted depending on the height of the food stored. To do
this, pull the shelves slightly forward.
Defrost-drain Vessel(Rear Side)
Since dust accumulated on the drain case decreases the evaporation efficiency, you
should clean the drain case at regular intervals.
Vegetable case
May be used for fruit and vegetable storage. Both the vegetable case and its cover
shelf are removable for easy cleaning. Simply slide forward to remove.
Egg Pocket
The Egg Case in this pocket can be turned upside down for the use of small size goods.
Top Table
Useful for putting non-frozen foods or home-appliances to use space efficiently.
Turn the multi-use tray up side down when putting microwave oven on top. Foots of the
microwave oven should not stay out of the tray. Also do not use microwave ovens that
are larger than the size of top table.
CAUTION: 1. Check your voltage before inserting the power supply cord into the socket.
2. Connect the earthing conductor to this unit with an attachment earthing screw.
3. Do not spill liquid on this unit.
4. Do not use flammable spray, such as painting, near this unit.
5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.
6. Take precautions against leakage of any gas equipment near this unit.
7. Keep children from hanging on the door of this unit.
8. Do not reinsert the power supply cord within 5 minutes after releasing it from
the socket. If not, there may be problems with the compressor.
9. Put food in the refrigerator after running the refrigerator for 2~3 hours.
2
