Summary of Contents for Daewoo FR-1020ARS

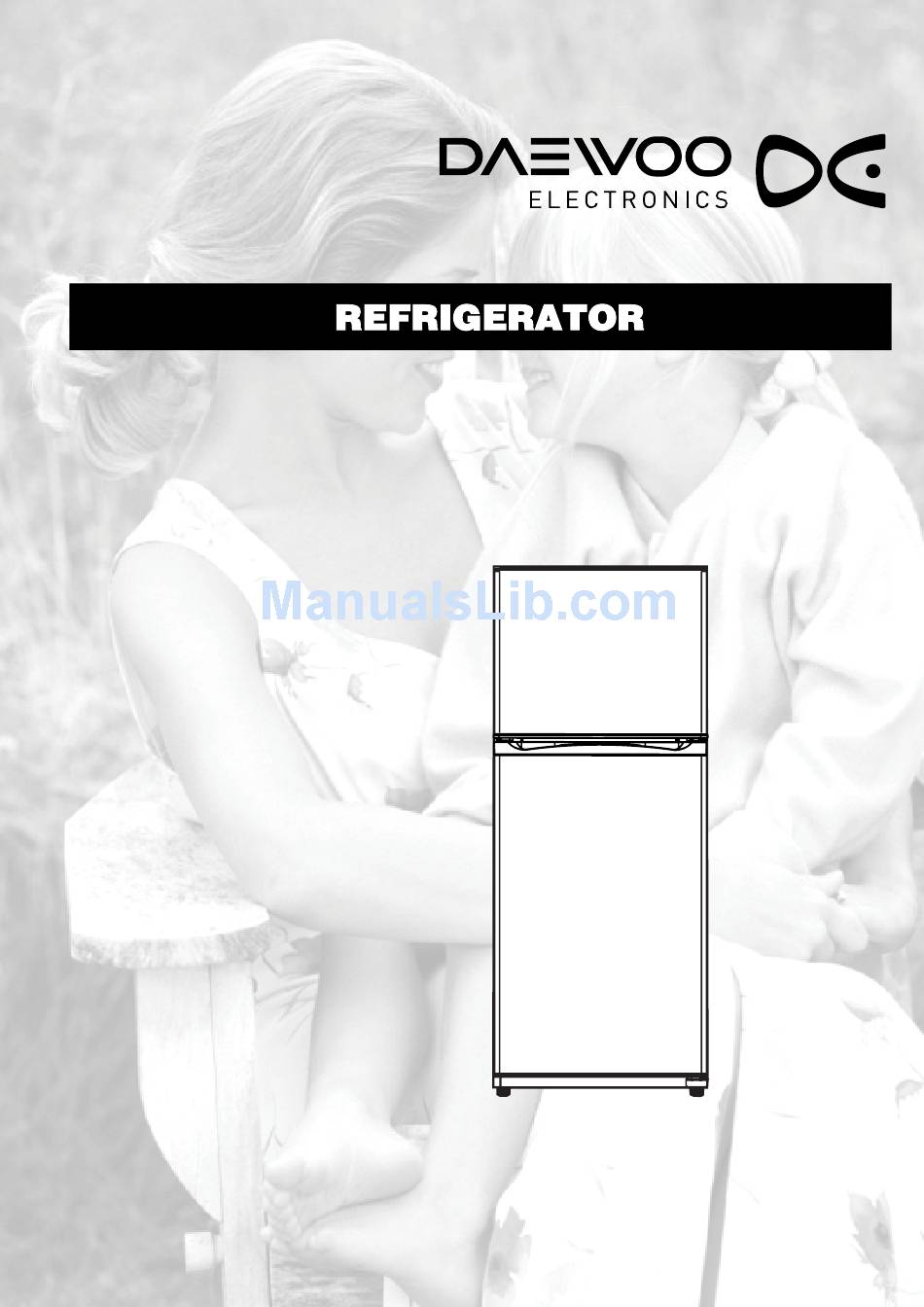

  • Page 1 FR-1020ARW FR-1020ARS...
  • Page 2 Dear customer: Thank you for buying this refrigerator-freezer. To ensure that you get the best results from your new refrigerator-freezer, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements.
  • Page 3 Follow handling instructions carefully. Flammable refrigerant used. CAUTION : General: This type of refrigerator-freezer is widely used in places such as hotels ,offices, student dormitories and houses. It is mostly suitable for refrigerating and preserving foods such as fruits and beverage. It enjoys the advantages of small size, Lightweight, Low electric consumption and easy use.
  • Page 4 Main configuration: The sample cutline is representation of this series of refrigerator, which have similar structure and different capacity. 6. Freezer shelf 1. Freezer control knob 2. Refrigerator temperature control 7. Freezer door rail 3. Refrigerator glass shelf 8. Bottle rack (Small) 4.
  • Page 5: Unpacking Your Refrigerator-Freezer

    UNPACKING YOUR REFRIGERATOR-FREEZER WARNING: Use two or more people to move refrigerator-freezer. Failure to do so can result in back or other injury. Remove tape and any labels from your refrigerator-freezer before using(except the rating label). To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers.
  • Page 6 on each side between walls, 200mm space between back of your refrigerator-freezer and the wall, and 300mm space between counter top and the roof or ceiling. If you are installing your refrigerator-freezer next to a fixed wall, leave sufficient space on the hinge side to allow for the door to swing open. Never install your refrigerator-freezer near heat source and direct sun shins.
  • Page 7: Electrical Requirement

    ELECTRICAL REQUIREMENT WARNING: DO NOT REMOVE GROUND PRONG. DO NOT USE AN ADAPTOR. DO NOT USE EXTENSION CORD. Failure to follow these instructions can result in death, fire or electrical shock. Before you move your refrigerator-freezer into its final location, it is important to make sure you have the proper electrical connection.
  • Page 8: Use Of The Appliance

    NOTE: Having someone push against the top of the refrigerator-freezer, take some weight off. This makes it easier to adjust the adjustable foot. USE OF THE APPLIANCE To obtain the best possible results form your refrigerator-freezer, it is important that you operate it properly. OPERATION HMI and keys operation The keys in HMI and display layout are referred in the following figure:...
  • Page 9 1.5 Fault indication Display Malfunction Refrigerator temperature sensor circuit The LED1 and LED2 lit Freezer defrost sensor The LED1 and LED3 lit Ambient temperature sensor The LED1 and LED4 lit Fresh Food Storage Wrap or store food in the refrigerator in airtight and moisture – proof material. This prevents food odor and taste transfer throughout refrigerator.
  • Page 10 two hours before introducing the food to be stored. All frozen food products you purchase should be placed in the freezer compartment as soon as possible to avoid the frozen food from defrosting. Storage recommendation printed on the packaging of frozen food by the manufacturers should be always be followed.
  • Page 11: Prolonged Off Periods

    power supply. Use a clean sponge or soft and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Hand wash, rinse and dry all surfaces thoroughly. Do not use cleaning waxes, concentrated detergents, bleaches or cleaners containing petroleum on plastics and rubber parts.
  • Page 12 -- The drawers are out of position. -- The gaskets are dirty. -- The refrigerator-freezer is not level. The refrigerator-freezer is noisy when running…Check if Check the refrigerator-freezer is level and it is not in contact with another appliance or kitchen furniture. The refrigerator-freezer does not cool sufficiently…Check if If the door has been opened too often, or it has been left open for a while it will take time for the refrigerator-freezer to reach its set temperature.
  • Page 13: Requesting Assistance Or Service

     Repace with a 15-watt bulb that is the same shape and size. REQUESTING ASSISTANCE OR SERVICE If the problem is not due to one of the items listed in Troubleshooting, Contact the dealer or authorized Service Company. Changing the Reversible Door Before reversing the door swing, ensure the appliance is unplugged and empty.
  • Page 14 Remove right bottom hinge and reserve the Remove the screws from the screws. Remove screw covers at left corner middle hinge. Lift the and put them into the screw holes at right refrigerator door up and away corner. Install left hinge by using those from the appliance.
  • Page 15 Place the freezer door on the middle hinge. Ensure that the door is aligned horizontally and vertically, and that the gasket seals on all sides before attaching the top hinge. Attach the top hinge and replace the hinge cover. WARNNING RECOMMENDATIONS:...
  • Page 16 5) The appliance has to be unplugged after use and before carrying out user maintenance on the appliance. 6) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 17 Correct Disposal of this product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
  • Page 18 FR-1020ARW / FR-1020ARS www.daewooelecusa.com...
