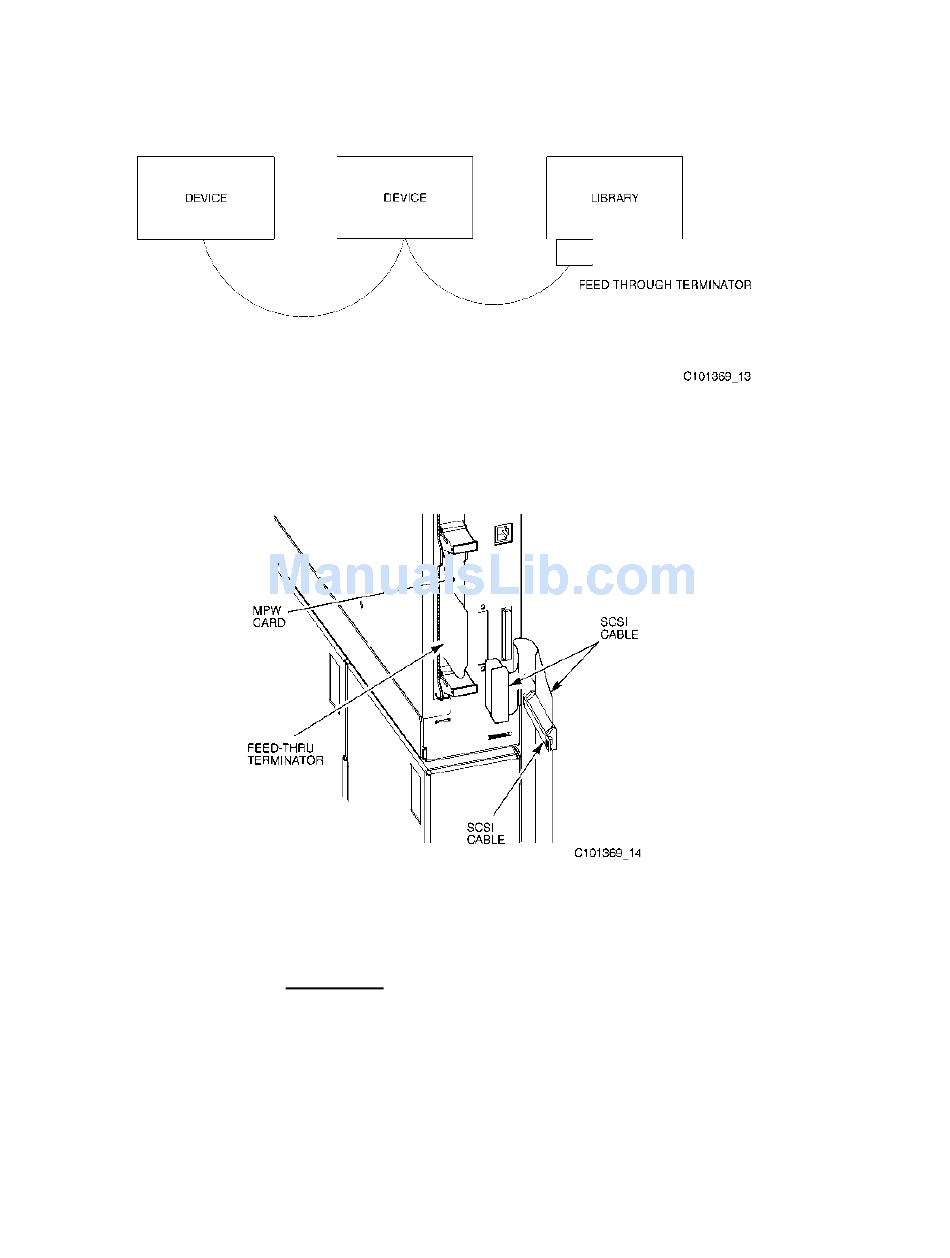

Note: The library must be at the end of the SCSI bus as shown in Figure 12.

Devices can be host bus adapter, tape drives, other libraries, etc. Figure 12

depicts the actual physical location on the bus and not the SCSI ID.

20. Connect the feed-through terminator to the connector on the MPW card.

21. Connect the male connector, on the single SCSI cable, to the connector on the feed-

through terminator (see Figure 13).

22. Using a 3/16 hex driver, connect the two provided screwlocks through the left side of the

bulkhead into the SCSI cable connector (see Figure 14).

Note: Do not use original screwlocks removed in Step 3. Use the new

screwlocks provided in the kit.

23. Obtain the LVD SCSI icon and place it next to the connector on the bulkhead (see Figure

14).

24. Secure the cable in the strain reliefs.

Figure 12.

Figure 13. SCSI Cable Routing
