HP Surestore Tape Library Model 20/700 Installation Instructions Manual page 4

6. Disconnect the P/J242 and P/J243 connectors from the MPM card. Disconnect cable from
7. Using a 3/8-in. hex driver, remove the upper and lower MPM card nuts (see Figure 5).
8. Using a Torx T-10 driver, remove the center MPM card screw (see Figure 5).
9. Pull back slightly and turn the card to the left to remove the mounting plate from the two
10. Remove the MPM card and bracket. Set aside to be reinstalled in Section C.
4
bulkhead (as shown in Figure 4).

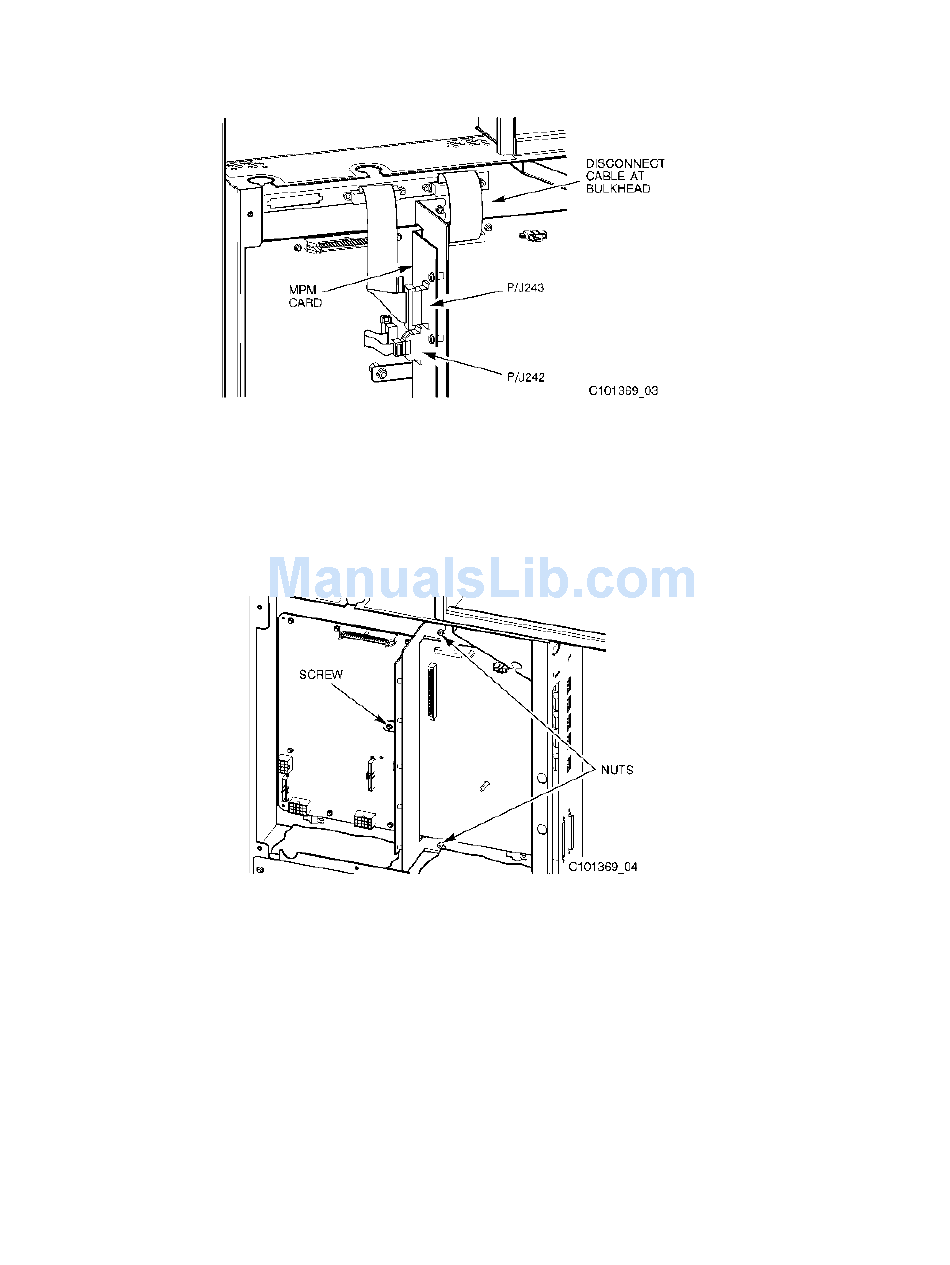

Figure 4. MPM Card Components
studs.
Figure 5. MPM Card Attach
