7. Disengage the latch.

8. Gently pull on the MPW card to release it from the MPV connector.

9. Slide the MPW card out of the card cage.

10. Place the MPW card on a static-free surface (you may use the anti-static bag).

CAUTION: Possible equipment damage: PUSH THE MPV CARD STRAIGHT

IN, BEING CAREFUL NOT TO DAMAGE THE CONNECTOR TO THE MPC

CARD.

11. Locate the MPV connector provided on the MPC card at J211. Gently mate the MPV card

with the MPC card connector (see Figure 9).

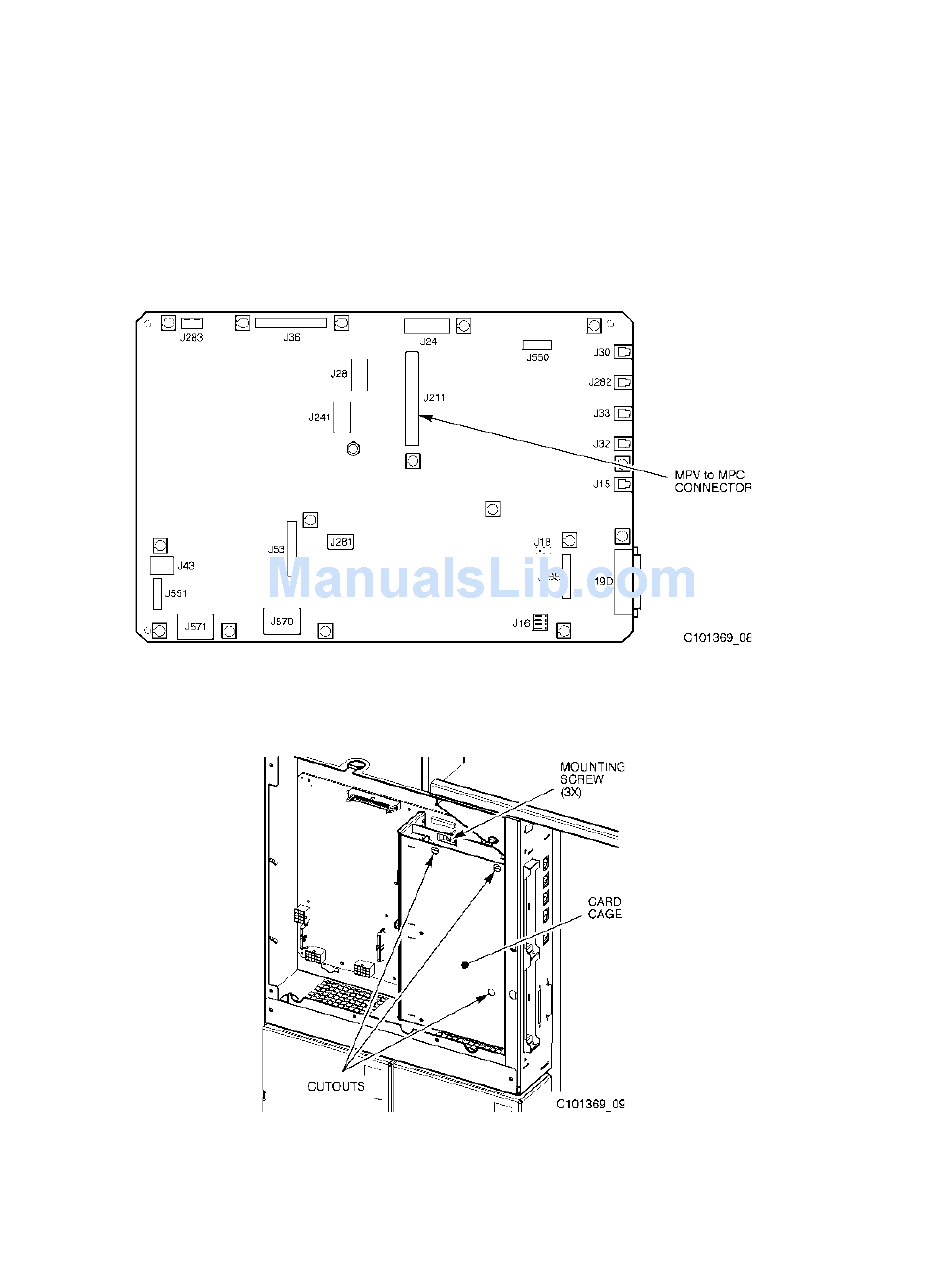

Figure 9. MPC Card Components

12. Install the three mounting screws (4-40 x 3/8) through the three cutouts in the card cage.

These screws go into the MPC card standoffs (see Figure 10).

Figure 10. CPCI Card Cage
