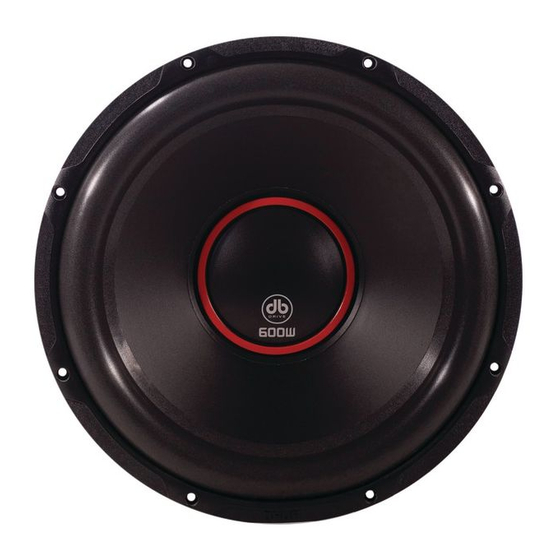

DB Drive Okur K1 10D4 Installation Instructions & Owner's Manual

DB Drive Okur K1 10D4 Installation Instructions & Owner's Manual

Advertisement

Quick Links

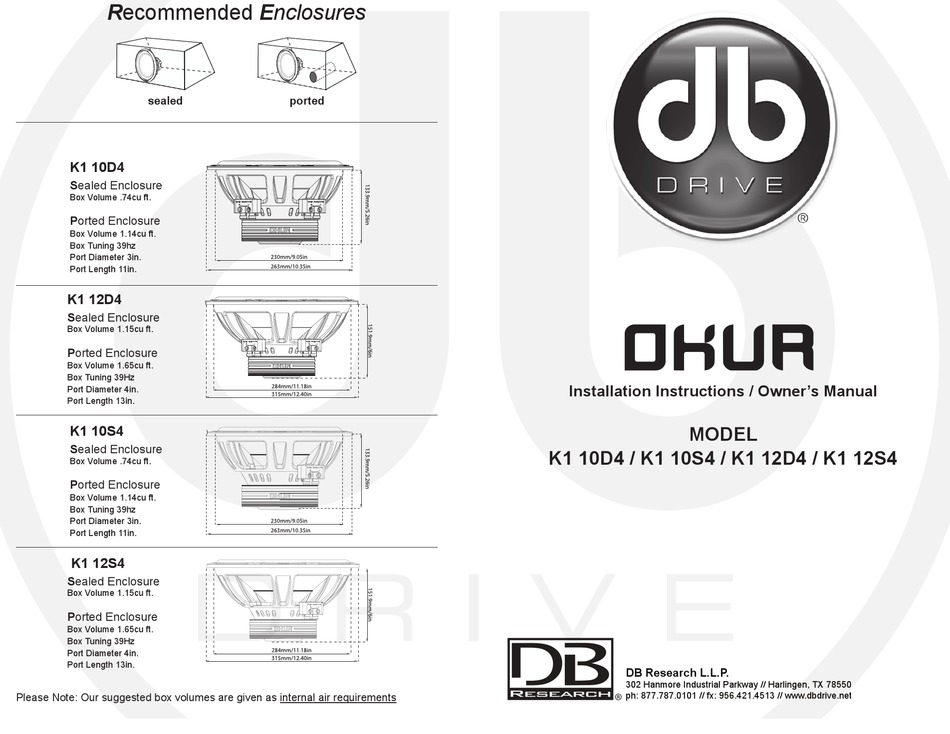

Recommended Enclosures

sealed
K1 10D4
Sealed Enclosure
Box Volume .74cu ft.
Ported Enclosure
Box Volume 1.14cu ft.
Box Tuning 39hz
Port Diameter 3in.
Port Length 11in.
K1 12D4
Sealed Enclosure
Box Volume 1.15cu ft.
Ported Enclosure
Box Volume 1.65cu ft.
Box Tuning 39Hz
Port Diameter 4in.
Port Length 13in.
K1 10S4
Sealed Enclosure
Box Volume .74cu ft.
Ported Enclosure
Box Volume 1.14cu ft.
Box Tuning 39hz
Port Diameter 3in.
Port Length 11in.
K1 12S4
Sealed Enclosure
Box Volume 1.15cu ft.
Ported Enclosure
Box Volume 1.65cu ft.
Box Tuning 39Hz
Port Diameter 4in.
Port Length 13in.
Please Note: Our suggested box volumes are given as internal air requirements
ported
okur
Installation Instructions / Owner's Manual
MODEL
K1 10D4 / K1 10S4 / K1 12D4 / K1 12S4
DB Research L.L.P.
302 Hanmore Industrial Parkway // Harlingen, TX 78550
ph: 877.787.0101 // fx: 956.421.4513 // www.dbdrive.net
®
