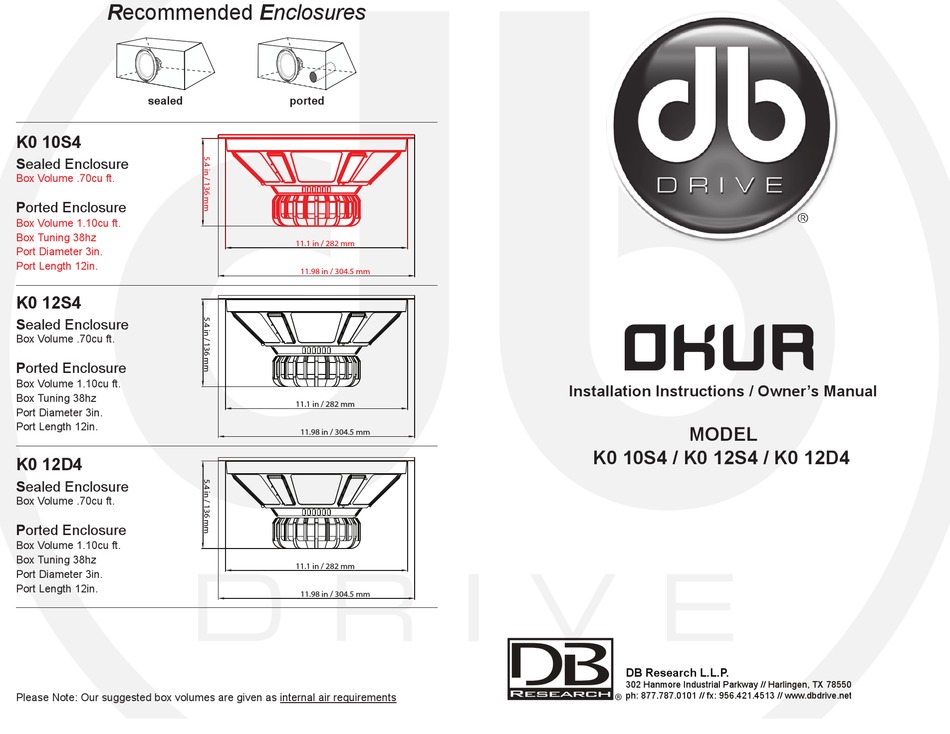

Recommended Enclosures
sealed
K0 10S4
Sealed Enclosure
Box Volume .70cu ft.
Ported Enclosure
Box Volume 1.10cu ft.
Box Tuning 38hz
Port Diameter 3in.
Port Length 12in.
K0 12S4
Sealed Enclosure
Box Volume .70cu ft.
Ported Enclosure
Box Volume 1.10cu ft.
Box Tuning 38hz
Port Diameter 3in.
Port Length 12in.
K0 12D4
Sealed Enclosure
Box Volume .70cu ft.
Ported Enclosure
Box Volume 1.10cu ft.
Box Tuning 38hz
Port Diameter 3in.
Port Length 12in.
Please Note: Our suggested box volumes are given as internal air requirements
ported
11.1 in / 282 mm
11.98 in / 304.5 mm
11.1 in / 282 mm
11.98 in / 304.5 mm
11.1 in / 282 mm
11.98 in / 304.5 mm
okur
Installation Instructions / Owner's Manual
MODEL
K0 10S4 / K0 12S4 / K0 12D4
DB Research L.L.P.
302 Hanmore Industrial Parkway // Harlingen, TX 78550
ph: 877.787.0101 // fx: 956.421.4513 // www.dbdrive.net
®
Advertisement
Related Manuals for DB Drive Okur K0 10S4
Summary of Contents for DB Drive Okur K0 10S4
-
Page 1: Recommended Enclosures
Box Tuning 38hz 11.1 in / 282 mm Port Diameter 3in. Port Length 12in. MODEL 11.98 in / 304.5 mm K0 10S4 / K0 12S4 / K0 12D4 K0 12D4 Sealed Enclosure Box Volume .70cu ft. Ported Enclosure Box Volume 1.10cu ft. - Page 2 RODUCT SPECIFICATIONS Congratulations on your purchase of a DB Drive state-of-the-art subwoofer compo- K0 10S4 K0 12S4 K0 12D4 nent. Your selection of a DB Drive car audio product indicates a true appreciation of (FS) 31.39Hz 31.39Hz 31.39Hz fine musical reproduction. Whether adding to an existing system or including a DB Drive subwoofer in a new system, you are certain to notice immediate performance (Qts.)
