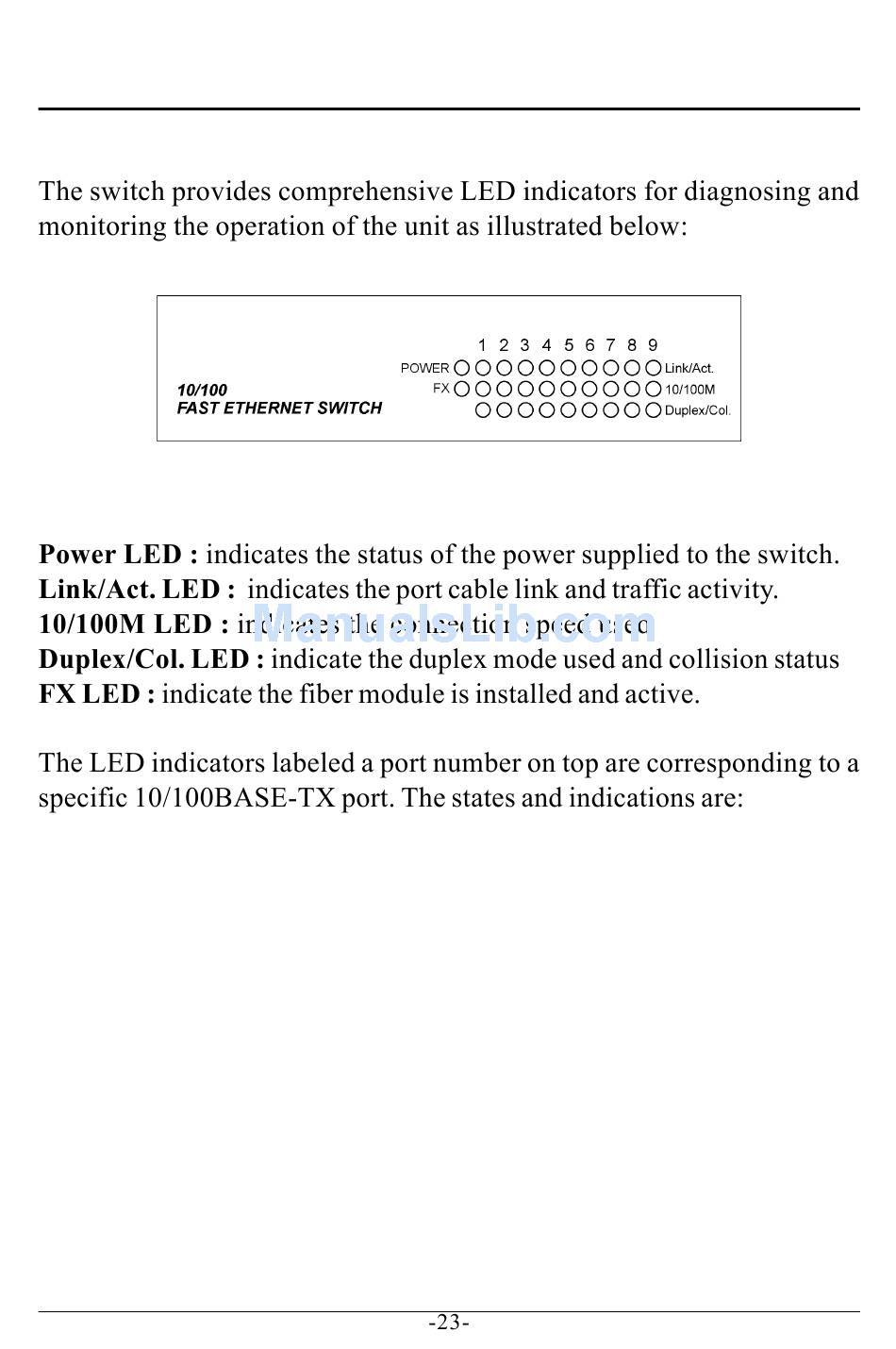

4. LED Indicators

4.1 LED Panels

4.2 Interpretation

LED
Power
Power
Link/Act.
Link/Act.
Link/Act.
10/100M
10/100M
Duplex/Col.
Duplex/Col.
Duplex/Col.
FX
STATE INDICATION
Off Power Off
On Power On
On Link active
Off No active link
Blink Tx or Rx activities.
On 100Mbps speed
Off 10Mbps speed
On Full duplex mode
Off Half duplex mode
Blink Collision occurrences
On One fiber module is on.
