$FHU 6OLP

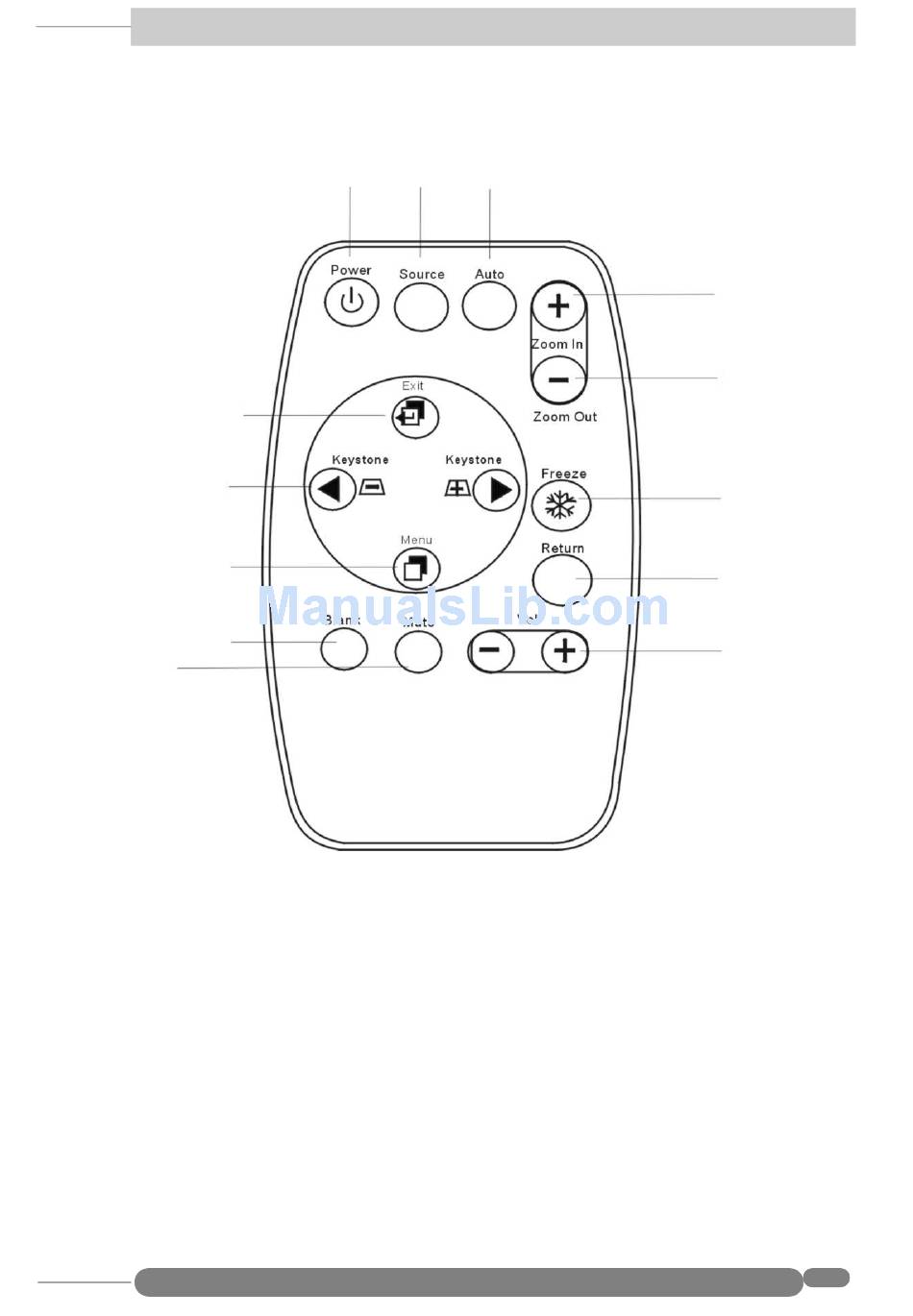

Remote Control Description

Source
Auto
Power
Zoom In
Zoom Out
Exit
Keystone
Freeze
Menu
Return
Blank
Volume
Mute

Remote Control Features

The remote control sensors are located in the front/ back of the projector. The
distance between the sensor and the remote control should not excede 6 meters.


Advertisement

Table of Contents
loading

Summary of Contents for Acer SL700X

  • Page 1: Remote Control Description

    $FHU 6OLP Remote Control Description Source Auto Power Zoom In Zoom Out Exit Keystone Freeze Menu Return Blank Volume Mute Remote Control Features The remote control sensors are located in the front/ back of the projector. The distance between the sensor and the remote control should not excede 6 meters.
  • Page 2 $FHU 6OLP FREEZE The image can be frozen when FREEZE is pressed. A “Pause” icon will appear in the lower right corner of the screen for three seconds. To release the freeze function, press the FREEZE button, RETURN button or SOURCE button (when the input source is switched over during display).
  • Page 3: Installing Or Replacing Batteries

    $FHU 6OLP Installing or Replacing Batteries • Push and slide the battery compartment lid in the direction shown. • Install CR2025 as indicated by the diagram inside the compartment. • Position the lid over the compartment and snap it back into place. Caution Avoid excessive heat and humidity.
  • Page 4: Screen Size

    $FHU 6OLP Screen Size Place the projector at the required distance from the screen according to the desired picture size (see the table below). 1 .5 2 .5 Connecting to Various Equipment It only takes a few seconds to connect your SL700 Series projector to your computer/notebook, VCR or other systems.
  • Page 5 $FHU 6OLP Start Up 1. Plug the power cord into a wall socket. 2. Press POWER for 1 second. • The back-lit POWER key blinks green and stays green when the power is turned on. (When the power is turned off, there is a 60-second cooling period before the projector can be re-started.) 3.
  • Page 6: Digital Keystone Correction

    AUTO key on the control panel of the projector or on the remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function of the Acer SL700X/S Series will present you the best picture quality. Remote control Projector...
  • Page 7: Source Selection

    $FHU 6OLP Source Selection When several input sources are available, press the SOURCE key to make a selection from the control panel of the projector or the remote control. Remote control Projector Source Auto Source Blank Mute Menu System Press Menu for the main menu and press to select a sub-menu.
  • Page 8: Display Menu

    $FHU 6OLP 1. Display Menu Keystone Brightness...
  • Page 9: Image Menu

    $FHU 6OLP Contrast Color Balance 2. Image Menu Auto resize Press On and the Auto Resize function will automatically adjust the image to fit on the screen.
  • Page 10 $FHU 6OLP Phase (Auto Resize OFF) Frequency (Auto Resize OFF) H-position V-position...
  • Page 11 $FHU 6OLP 3. Sub-menu image with AV Input This menu is only available when the input signal is from Video or S-Video. Image Ratio 4:3 (Normal) 16:9 (Video) System Auto PAL-M PAL-N SECAM Color Less More Tint Green...
  • Page 12: Control Menu

    $FHU 6OLP 4. Control Menu Language English (En), French (Fr), German (De), Italian (It), Spanish (Es), Portuguese (Po), Traditional Chinese (TC) Mirror Normal V-Inv (Vertically Inverted), H-Inv (Horizontally Inverted), H/V-Inv (Horizontally and Vertically Inverted) will invert the image for proper display according to the desired projector position.
  • Page 13 $FHU 6OLP 1. Default 2. Ceiling-mounted projection 3. Rear-screen projection 4. Ceiling-mounted and Rear screen projection Auto off This will turn off the power after 60 minutes. Reset This will restore the projector to its factory default settings.
  • Page 14 $FHU 6OLP 5. Source Menu Source S-Video Video Volume Treble Bass Mute...
  • Page 15 $FHU 6OLP Shutdown 1. Press POWER and the lamp will shut down. 2. The fan will continue to run for approximately 60 seconds. Projector Remote control 3. Disconnect the power cord from the wall socket. Caution Please do not unplug the power cord before POWER is shut down or during the cooling process for 60 seconds.
  • Page 16: Lamp Information

    $FHU 6OLP Lamp Information Use and Replacement of Lamp The projector lamp lifetime normally is approximately 1200 to 1500 hours. During the normal lamp life, pictures and colors are projected brightly and crisply. Past the normal lamp life, colors and pictures may look faint. An old lamp could cause a malfunction to the projector and may explode.
  • Page 17: Lamp Replacement

    $FHU 6OLP Lamp Replacement Caution To reduce the risk of electrical shock, always turn off the projector and disconnect the power cord before changing the lamp. 1. Press the POWER button to switch off the projector and disconnect the power cord from the outlet.
  • Page 18: Resetting Lamp Hours

    $FHU 6OLP Caution To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp. To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces. To reduce the risk of injuries to fingers and/or decreasing image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.
  • Page 19: Service Information

    $FHU 6OLP Service Information Accessories (Included in standard package) Description Part Number Power cord (EU) ........27.01218.191 Power cord (US) .
  • Page 20: Common Problems And Solutions

    $FHU 6OLP Common Problems & Solutions PROBLEMS TRY THESE SOLUTIONS NO POWER • Plug the power cord into the AC inlet. • Plug the power cord into the power inlet. • Wait two minutes after the projector is turned off before turning the projector back on.
  • Page 21: Status Messages

    $FHU 6OLP Status Messages On Screen Messages Description SEARCHING Projector is searching for input. INPUT SIGNAL DETECTED, Projector has identified the input signal and is ACTIVATING AUTO IMAGE running the auto image adjustment function. SYNC IS OUT OF RANGE Input signal’s frequency exceeds the projector’s. CHANGE THE LAMP, AND The lamp has been in operation for 1200 hours.
  • Page 22: Projector Specifications

    $FHU 6OLP Projector Specifications Technical Specifications Note: All specifications are subject to change without notice. General Product name Personal Projector Model name SL700X (X-XGA) 1024X768 dpi XGA SL700S (S-SVGA) 800X600 dpi SVGA Optical Display system 1-CHIP DMD Lens F/Number F/2.6 Focal Length: F = 36 mm...
  • Page 23: Timing Chart

    $FHU 6OLP Timing Chart Resolution H Sync (kHz) V Sync (kHz) Remark 640x350 31.5 70.1 640x400 37.9 85.1 VESA 720x400 31.5 70.0 720x400 37.9 85.1 VESA 640x480 31.5 60.0 VESA 640x480 37.9 72.8 VESA 640x480 66.7 Macintosh 640x480 43.3 85.0 VESA 800x600 35.2...
  • Page 24 $FHU 6OLP...
