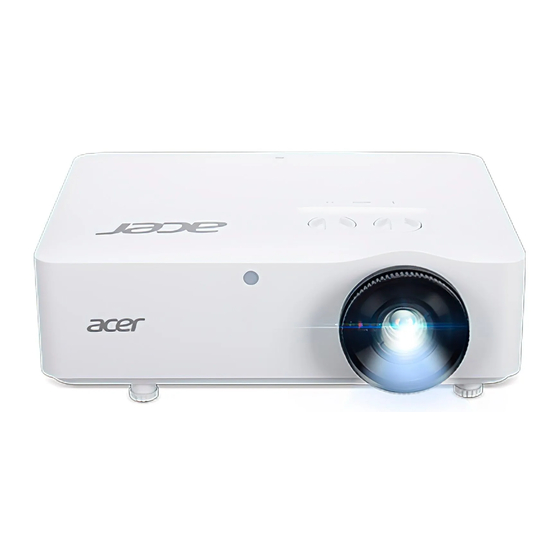

Acer PL7610T Series User Manual

Advertisement

Quick Links

Acer DLP Projector
PL7610T/FL360T/LU-
P600UT/PF-L600UT/LR670T/
ML-570B/AWU2004/
PL7610/FL360/LU-P600U/PF-
L600U/LR670/ML-570/
AWU2005/SL6610T/
FL261ST/LU-S500UT/PS-
L500UT/LR660ST/ML-560SB/
AWU2006/SL6610/FL261S/
LU-S500U/PS-L500U/
LR660S/ML-560S/AWU2007
Series User's Guide
Copyright © 2020. Acer Incorporated.
All Rights Reserved.
Acer Projector User's Guide
Original Issue: 11/2020

Advertisement

Table of Contents
loading

Summary of Contents for Acer PL7610T Series

  • Page 1 Acer DLP Projector PL7610T/FL360T/LU- P600UT/PF-L600UT/LR670T/ ML-570B/AWU2004/ PL7610/FL360/LU-P600U/PF- L600U/LR670/ML-570/ AWU2005/SL6610T/ FL261ST/LU-S500UT/PS- L500UT/LR660ST/ML-560SB/ AWU2006/SL6610/FL261S/ LU-S500U/PS-L500U/ LR660S/ML-560S/AWU2007 Series User's Guide Copyright © 2020. Acer Incorporated. All Rights Reserved. Acer Projector User's Guide Original Issue: 11/2020...
  • Page 2 Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
  • Page 3 Information for Your Safety and Comfort Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
  • Page 4 • To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. • Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices.
  • Page 5 Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel when: •...
  • Page 6 • This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed. • Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor.
  • Page 7 For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/index.htm Laser caution This product belongs to CLASS I laser product and complies with IEC 60825- 1:2014.
  • Page 8: Precautions

    viii First Thing First Usage Notes • Turn off the product before cleaning. • Use a soft cloth moistened with mild detergent to clean the display housing. • Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
  • Page 9: Table Of Contents

    Information for Your Safety and Comfort First Thing First viii Usage Notes viii Precautions viii Introduction Product Features Package Overview Projector Overview Projector Outlook Control Panel Remote Control Layout Getting Started Connecting the Projector Connecting Multiple Sources through HDBaseT Module (Optional) Turning the Projector On/Off Turning On the Projector Turning Off the Projector...
  • Page 10 Language Acer Splash Downloader Introduction Using the Acer Splash Downloader Appendices Troubleshooting LED & Alarm Definition Listing Ceiling Mount Installation Specifications Compatibility Modes Regulations and safety notices...
  • Page 11: Introduction

    • One-touch "3D" button on remote control allows quick and easy access to the 3D functions • Acer ColorBoost technology delivers vivid, life-like images • High brightness and contrast ratio • Versatile display modes enable optimum performance in any situation •...
  • Page 12: Package Overview

    Package Overview This projector comes with all the items shown below. Check to make sure you have them all. Contact your dealer immediately if any thing is missing. Projector Power cord VGA cable HDMI cable (Optional) (Optional) Security card User’s guide (CD- Remote control Quick start guide (Optional)
  • Page 13: Projector Overview

    Projector Overview Projector Outlook Front/upper side Description Description Lens shift knobs Vents Remote control receiver Security slot Zoom ring and Focus ring Indicator LED Tilt adjusting wheel Control panel Projection lens Rear side Note: Connector interface is subject to model's specifications. Description Description 1 HDMI connectors...
  • Page 14: Control Panel

    Bottom side Unit: mm Control Panel Function Description POWER Power indicator LED LAMP Light source indicator LED. Keystone Adjusts image distortion caused by tilting projection. Power key Refer to the "Turning the Projector On/Off" section. ENTER Confirms your selection of items. BACK Cancels your selection, or goes back to previous page.
  • Page 15: Remote Control Layout

    Remote Control Layout Model No:J-25030 MC.JMV11.007 Function Description POWER Refer to the "Turning the Projector On/Off" section. RATIO Chooses an aspect ratio. Laser Emits visible laser pointer light for presentation purposes. This function is not available for the projectors sold in Japan/China. Adjusts image distortion caused by tilting projection.
  • Page 16 Function Description To change source to VGA. This connection supports analog RGB, and YPbPr (480i/480p/576i/576p/720p/1080i/ 1080p). PgUp/PgDn For computer mode only. Use this button to select the next or previous page. This function is only available when connected to a computer via a mini USB cable. COMPONENT (No function) 10 MEDIA...
  • Page 17: Getting Started

    Getting Started Connecting the Projector Speakers Smart devices Video Output Display Screen Note: Connector interface is subject to model's specifications.
  • Page 18: Connecting Multiple Sources Through Hdbaset

    Description Description Power cord RS232 cable Audio cable 10 WirelessHD dongle HDMI (MHL) cable 11 Wireless dongle VGA to component video/HDTV adapter 12 Wired remote control VGA cable 13 RJ45 cable 3 RCA component cable 14 USB cable Composite video cable 15 12V DC cable S-Video cable Note: To ensure the projector works well with your computer,...
  • Page 19 Note: Use a shielded LAN cable up to 100 meters in length rated at CAT5e or better. Note: The maximum transmission distance is 100 m.However, it may be shorter under some circumstances. Note: Avoid using the LAN cable when it is coiled or bundled. Note: Inserting or removing the LAN cable during projection may cause noise.
  • Page 20: Turning The Projector On/Off

    Turning the Projector On/Off Turning On the Projector Ensure that the power cord and signal cable are securely connected. The Power LED will light red. Turn on the projector by pressing (POWER) on the control panel or remote control, and the Power indicator LED will turn blue. Turn on your source (computer, notebook, video player, etc.).
  • Page 21: Turning Off The Projector

    Turning Off the Projector To turn the projector off, press the power button. This message appears: "Please press power button again to complete the shutdown process" Press the power button again. The LED Power indicator will turn solid red to indicate standby mode. It is now safe to unplug the power cord.
  • Page 22: Adjusting The Projected Image

    Adjusting the Projected Image Adjusting the Height of the Projected Image The projector is equipped with elevator feet for adjusting the image height. To raise the image: Use the front Tilt adjusting wheel to raise the image to the desired height and angle.
  • Page 23: How To Get A Preferred Image Size By Adjusting Distance And Zoom

    How to Get a Preferred Image Size by Adjusting Distance and Zoom The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring. • PL7610T/FL360T/LU-P600UT/PF-L600UT/LR670T/ML-570B/PL7610/FL360/LU- P600U/PF-L600U/LR670/ML-570 To obtain an image size of 70", set the projector at a distance between 2.1 m and 3.3 m from the screen and adjust the zoom level accordingly.
  • Page 24 • SL6610T/FL261ST/LU-S500UT/PS-L500UT/LR660ST/ML-560SB/SL6610/FL261S/ LU-S500U/PS-L500U/LR660S/ML-560S To obtain an image size of 70", set the projector at a distance between 1.2 m and 1.3 m from the screen and adjust the zoom level accordingly. 70" Desired image size Height: 94 cm From base to top of image 1.2 m...
  • Page 25: How To Get A Preferred Image Position By Adjusting Lens Shift

    How to Get a Preferred Image Position by Adjusting Lens Shift The projector is equipped with lens shift for adjusting the position of projected image without requiring you to physically move the projector. To shift the lens, turn the knobs on the top of the projector. Note: The figures shown in this section are for reference only not approximate value.
  • Page 26: User Controls

    The new settings will be saved automatically upon exiting the menu. Press "MENU" anytime to exit the menu and return to the Acer welcome screen.
  • Page 27: Onscreen Display (Osd) Menus

    Onscreen Display (OSD) Menus The projector has multilingual Onscreen Display (OSD) menus that allow you to make image adjustments and change a variety of settings. Using the OSD menus • To open the OSD menu, press "MENU" on the control panel or remote control.
  • Page 28: Color

    Color This function protects your eyes from over-exposure to blue light. The options are Off, Low, Medium, and High. Choose a preferred setting to reduce the level of blue light and get a comfortable viewing experience. BluelightShield When this function is enabled, LumiSense will be automatically set to "Off".
  • Page 29 Adjusts the brightness of the image. • Brightness Press to darken the image. • Press to lighten the image. Controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Contrast •...
  • Page 30 • Ind. Color Management: Adjusts the red, green, blue, cyan, yellow and magenta colors. • - Ind. Hue: Changes the hue of the color selected. • - Ind. Saturation: Adjusts a video image from black and white to fully saturated color. •...
  • Page 31: Image

    Image • Front: The factory default setting. Projection • Mode Rear: Reverses the image so you can project from behind a translucent screen. • Auto: Automatically adjusts projection location of image. Projection • Desktop Location • Ceiling: Turns the image upside down for ceiling- mounted projection.
  • Page 32 Manually adjusts the shape and size of an image that is unevenly rectangular on all sides. Press "MODE" repeatedly to select the corner that you wish to adjust. Press four directional selection keys to adjust the image shape. 4 Corner Correction Please adjust 4-corner correction separately for each aspect ratio, and its memory is allowed to save 4 sets of...
  • Page 33 Adjusts the color range of the HDMI image data to prevent color display error. • Auto: Automatically adjusts the color range by information from the player. HDMI Color Range • Limited Range: Processes the input image as limited color range data. •...
  • Page 34: Setting

    Use this function to select your desired startup screen. If you change the setting, it will take effect when you exit the OSD menu. • Acer: The default startup screen of your Acer projector. Startup Screen • User: Use the picture you transfer to the projector. See "Acer Splash Downloader"...
  • Page 35 This function is especially suitable for gaming environment. It reduces input to output latency and helps create a seamless experience. Low Input Lag This function is only available for certain input timings. After turned on, performing Auto Keystone or adjusting the following settings will deactivate this function: Aspect ratio, Keystone, H.
  • Page 36 This unique password will be accepted by the projector no matter what the administrator password is. • If the Security Card is lost, please contact your local Acer service center. Lock User Startup Screen This function is set to "OFF" by default. If set to "ON", the startup screen is locked and cannot be changed by the "Startup Screen"...
  • Page 37 The default value is "Off". Choose "On" to enable the LAN connection. LAN IP/ Mask Identify IP and Mask address. LAN Reset Press "ENTER" after choosing "Yes" to return all items on the Tools page to the default settings. Default is "RS232/LAN". Choose "HDBaseT" to enable Control Channel HDBaseT connection.
  • Page 38 Note 2 : An overview of the Tools page You can enter the projector You can set the information. user password/ administrator password to prevent unauthorized use DHCP can be of the remote disabled and network these settings operation/Tools have to be page.
  • Page 39: Management

    Management Choose "ECO" to dim the projector lamp, which will also lower the power consumption, reduce noise, and extend ECO Mode the lamp life. Choose "User" allows you to adjust the light source power. Choose "Off" to return to the normal mode. This function is only available when "Custom"...
  • Page 40: Audio

    • Off: Allows all keys on the control panel to operate normally. • Child Lock: Disables the Power key on the control panel when the projector is in standby mode to prevent it from being accidentally turned on. To turn the projector on, press and hold the Power key for 3 seconds.
  • Page 41 Selects "On" to enable the 3D function supported by DLP 3D technology. • On: Select this item while using DLP 3D glasses, quad buffer (NVIDIA/ATI...) graphics card and HQFS format file or DVD with corresponding SW player. • Off: Turns off the 3D mode. If the 3D content is not displayed correctly, you can select a 3D Format 3D format that suits the 3D content you are viewing and...
  • Page 42: Language

    The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these players on the web page below. - Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx - DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef- 3-D-Experience-4.0.2.html Note: "3D L/R Invert"...
  • Page 43: Acer Splash Downloader

    Acer Splash Downloader Introduction Acer Splash Downloader allows you to upload your desired picture onto an Acer projector. You can select the picture as the startup screen via the projector’s OSD menu. System Requirements Maximum image size 6 Mbytes Maximum image resolution 1920 x 1200...
  • Page 44 2. Connecting the computer to the projector Use an USB cable to connect the computer and the projector. 3. Executing the Acer Splash Downloader tool on the computer If the projector is not properly connecting to the computer, below message will be displayed.
  • Page 45 If the image is loaded successfully, the tool status will display "Load Image successfully". "Setting changed!! Please load image again." will be displayed in the tool status when PJ Native Resolution or aspect ratio is adjusted after the image is loaded successfully.
  • Page 46: Appendices

    Appendices Troubleshooting If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center. Image Problems and Solutions Problem Solution No image appears • Make sure all the cables are correctly connected as onscreen described in the "Getting Started"...
  • Page 47 Partial, scrolling • For an incorrectly displayed image: or incorrectly • Follow the steps for item 2 (above) to adjust displayed image the resolution of your computer. (For notebooks) • Press the toggle output settings. Example: [Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5] •...
  • Page 48 If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.
  • Page 49 OSD Messages Condition Message Reminder Message Fan Fail - the system fan is not working. Fan Fail. Laser source will automatically turn off soon. Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it is used.
  • Page 50: Led & Alarm Definition Listing

    (Power cord plugged in) Power on Lamp retry Quick flashing Turning off (Cooling Quick flashing state) Turning off (Cooling completed) Firmware download Acer splash download Error (Thermal failure) Error (Fan lock failure) Quick flashing Error (Lamp breakdown) Error (Color wheel Quick flashing failure)
  • Page 51: Ceiling Mount Installation

    Ceiling Mount Installation If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: • Screw type: M4 x 10L Unit: mm Note: Please note that damage resulting from incorrect installation will void the warranty.
  • Page 52: Specifications

    Specifications The specifications below are subject to change without notice. For final specs, please refer to Acer's marketing documentation. Projection system ™ Computer compatibility Refer to the "Compatibility Modes" section for more information. Video compatibility NTSC/NTSC4.43/PAL (M/N)/ SECAM/ PAL60/ NTSC (480i)/...
  • Page 53 PL7610T/FL360T/LU-P600UT/PF-L600UT/LR670T/ML-570B/PL7610/ FL360/LU-P600U/PF-L600U/LR670/ML-570 Resolution Native: WUXGA (1920 x 1200) Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080), WUXGA (1920 x 1200) (supports reduce blanking only) Aspect ratio Auto, 4:3, 16:9, Full, L.Box Projection lens F = 1.809 ~ 2.1, f = 14.3 ~ 22.9 mm, 1:1.6 Manual Zoom and Manual Focus Projection screen size (diagonal) 30"...
  • Page 54 I/O connectors Power socket DC 5V OUT VGA IN VGA OUT RS232 AUDIO IN AUDIO OUT HDMI 1 HDMI 2 WIRED REMOTE S-VIDEO VIDEO AUDIO IN (L/R) DC 12V OUT HDBaseT * Design and specifications are subject to change without notice.
  • Page 55: Compatibility Modes

    Compatibility Modes VGA Analog - PC Signal H.Frequency Mode Resolution V.Frequency [Hz] [KHz] 31.47 37.86 640 x 480 37.50 43.27 61.91 35.20 37.88 48.08 SVGA 800 x 600 46.88 53.67 77.43 48.36 56.48 1024 x 768 60.02 68.68 98.96 63.85 1152 x 864 67.50 77.10...
  • Page 56 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 45.00 1280 x 800 49.70 1280 x 800 - RB 101.6 1440 x 900 55.94 WSXGA+ 1680 x 1050 65.29 acer_16:9 1366 x 768 47.71 1920 x 1080-RB 66.60...
  • Page 57 SXGA+_60 1400 x 1050 59.978 65.317 UXGA_60 1600 x 1200 Mac G4 640 x 480@60Hz 59.94 31.469 MAC13 640 x 480@67Hz 66.667 Mac G4 800 x 600@60Hz 60.317 37.879 Mac G4 1024 x 768@60Hz 60.004 48.363 MAC19 1024 x 768@75Hz 75.02 60.241 MAC21...
  • Page 58 1080p 1920 x 1080 27.00 1080p 1920 x 1080 23.98 26.97 1080p 1920 x 1080 33.75 2160/24P 3840 × 2160 2160/25P 3840 × 2160 56.25 2160/30P 3840 × 2160 67.5 2160/50P 3840 × 2160 112.5 2160/60P 3840 × 2160 YPbPr Signal Mode Resolution V.Frequency [Hz]...
  • Page 59: Regulations And Safety Notices

    Regulations and safety notices FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 60 Remarque à l'intention des utilisateurs canadiens Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada. Compliant with Russian/Ukraine/Belarus/Morocco regulatory certification Radio device regulatory notice Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only. General This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use.
  • Page 61 LU-S500UT/PS-L500UT/LR660ST/ML-560SB/AWU2006/ SL6610/FL261S/LU-S500U/PS-L500U/LR660S/ML-560S/ AWU2007 We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:...
  • Page 62 Acer America Corporation 333 West San Carlos St., Suite 1500 San Jose, CA 95110 U. S. A. Tel: 254-298-4000 Fax: 254-298-4147 www.acer.com Federal Communications Commission Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
