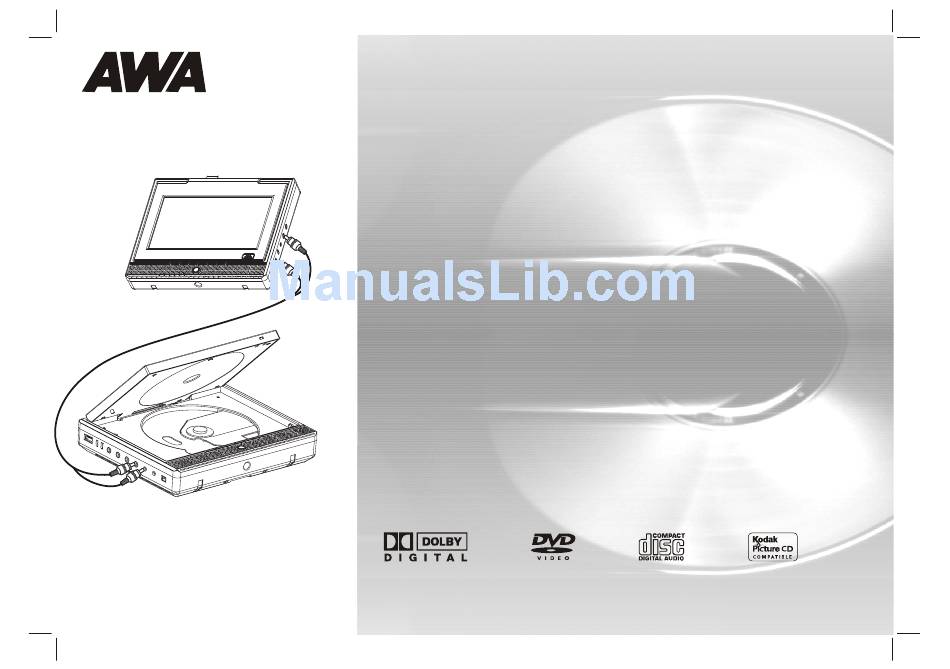

- Page 1 PORTABLE DVD (2 PANEL) USER'S MANUAL PDVD-166HD Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.
-
Page 2: Table Of Contents
Table of Contents Contents SETUP Menu Setting Table of Contents P12-P19 Safety Precautions General Operation P9-P10 General Setup Page P12-P14 P9-P10 Before Use(Continued) P2-P3 P14-P15 Audio Setup Page P4-P6 Identification of Controls P9-P10 Dolby Digital Setup Main Unit P9-P10 P17-P18 P9-P10 Preference Page Remote control unit... -
Page 3: Safety Precautions
Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN SERIAL NUMBER: Warning:To reduce the risk of electric shock,do not remove You can find the ser i al number on the back of the unit.This number the cover or back of this product.There are no user-serviceable is unique to this unit and not available to others.You should record parts inside. - Page 4 Before Use(Continued) Introduction Notes: Tip: Indicates tips and hints for making the task easier.A section whose 1.Depending on the conditions of the recording equipment or the title has one of the following symbols is applicable only to the disc CD-R/RW (or DVD -R, DVD +R,DVD -RW, DVD +RW) disc itself, represented by the symbol.
-
Page 5: Identification Of Controls
Identification of Controls Main Unit 1.SD/MS/MMC Master: 2.USB 3.POWER INDICATOR 4.BATTERY INDICATOR 5.HEADPHONE OUT JACKS 6.DIGITAL AUDIO OUT (COAXIAL) 7.VIDEO/AUDIO IN 8.VIDEO/AUDIO OUT 9. DC OUT 9-12V 10. DC IN 9-12V 11.POWER ON/OFF 12.MASTER TFT SCREEN 13.OPEN 15.MODE 16.LEFT / VOL- 17.RIGHT / VOL+ 18.DOWN / 14 15... -
Page 6: Remote Control Unit
Identification of Controls Remote control unit 14. MENU Accesses menu on a DVD disc. (Left/right/up/down) 1. PLAY/PAUSE ( Starts playback or pause playback. 15.DISPLAY Accesses On-Screen display. 2. STOP ( Stops playback. 16.AUDIO Selects an audio language (DVD). 3. Reverse Skip ( 17.SUBTITLE Go to previous chapter / track or to the SOURCE... -
Page 7: Insert The Battery
Identification of Controls Insert the battery Notes: 1.If parental control is set and the disc isn ' t fit for the rating 1.Open the battery door. 2.Insert two AAA size batteries. setting you must input the password.(See "parental" on page 22). 2.DVDs may have a region code.Your player does not play discs that have a region code different from your player. - Page 8 Getting started Playing a DVD or Video CD(Operation) DVD Video Discs - " Repeat Chapter / Title/All" DVD MENU Chapter: repeats the current chapter. Chapter 1. Press DVD MENU.If the current title has a menu, the menu appears Title: repeats the current title. on the screen.
- Page 9 Basic operation Audio CD and MP3/WMA Disc Features Disc File names should have a maximum of 8 letters and must incorporate The DVD player can play CD and MP3/WMA formatted recordings an" .mp3" or " .wma" extension. on CD-R,CD-RW,DVD+R and DVD+RW discs. They should not contain special letters such as "/? * : <...
-
Page 10: Basic Operation
Basic operation Playing a JPEG Disc Playing an Audio CD or MP3/WMA JPEG Slide Show Pause There are 16 types for slide show. 1. Press PLAY/PAUSE during playback. You can press Program repeatly to select the slide show Mode. 2. To return to playback, press PLAY/PAUSE again. JPEG Still Picture 1. -
Page 11: Playing A Jpeg Disc
Basic operation Playing a JPEG Disc Playing a MPEG4 Movie Disc To rotate picture Using this DVD Player you can play MPEG4 disc. 1. Insert a disc and close the tray.The folder menu appears on the Press or during showing a picture to rotate the picture invert ,mirror, clockwise ,counter clockwise. -
Page 12: Program Playback(Not For Picture Cd/Mp3)
Basic operation Program playback( DIGITAL CARD and USB Play operation not for Picture CD/MP3 Digital cards (MMC/SD/MS card) and USB with mp3&pictures The program function enables you to store your favourite tracks from (.jpg) may be played and displayed through the unit. any disc in the player memory. -
Page 13: Setup Menu Setting
SETUP Menu Setting General Operation&General Setup Page Dolby General Operation 1.Press SETUP to enter the Setup Menu. - - GENERAL SETUP PAGE - - 2.Press ENTER to enter the next level submenu or confirm your TV DISPLAY Wide 4:3 PANSCAN selection. -
Page 14: General Setup Page
SETUP Menu Setting General Setup Page Angle Mark Dolby Displays current angle setting information on the right hand corner of the TFT screen if available on the disc. - - GENERAL SETUP PAGE - - TV DISPLAY Wide ANGLE MARK Dolby OSD LANGUAGE ENGLISH... -
Page 15: Audio Setup Page
SETUP Menu Setting Audio Setup Page General Setup Page 1.Press to highlight 'Screen Saver'. Dolby 2.Enter its submenu by pressing 3.Move the cursor by pressing to highlight the selected item. - - GENERAL SETUP PAGE - - On:In STOP,PAUSE or No DISC mode,if no actions are performed TV DISPLAY Wide... - Page 16 SETUP Menu Setting Audio Setup Page 1.Press the keys to highlight 'Downmix'. Set the SPDIF Output according to your optional audio equipment 2.Enter its submenu by pressing connection. 3.Move the cursor by pressing the keys to highlight the selected SPDIF Off: Turns off the SPDIF output. item.
-
Page 17: Dolby Digital Setup
SETUP Menu Setting Dolby Digital Setup Dolby Digital Setup 1.Press the keys to highlight 'Dual Mono'. The options included in Dolby Digital Setup are: 'Dual Mono ' and 2.Enter its submenu by pressing 'Dynamic '. 3.Move the cursor by pressing the keys to highlight the selected item. -
Page 18: Preference Page
SETUP Menu Setting Preference Page Preference Page 1.Press to highlight 'TV Display'. The options included in Preference page are : 'TV Type','Audio', 2.Enter its submenu by pressing 'Subtitle','Disc Menu','Password',and 'Default'. 3.Use to highlight a TV Type fit for your TV. Dolby PAL - Select this if the connected TV is PAL system.It change... - Page 19 SETUP Menu Setting Preference Page Rating explanations 1 KID SAF - Kids material;recommended especially for children and viewers of all ages. MPEG4 SP SET MPEG4 subtitle - General Audience;recommended as acceptable for viewers of all ages. Parental 3 PG Some DVDs may have a parental level assigned to the complete disc - Parental Guidance suggested.
-
Page 20: Password Setup Page
SETUP Menu Setting Password Setup Page Password Setup Page 4. Enter the default password 4-digit code. 5. Enter the new 4-digit code. - Password mode: Set password mode on/off. If set to off, change 6. Enter the new 4-digit code a second time to confirm. parental level will not check password. -
Page 21: Lcd Setup Menu
Getting Started LCD Setup menu VOLUME To enter the LCD Setup menu, press the "MODE" button. To exit the LCD Setup menu, press it repeatedly. General operation VOLUME:Adjusts the VOLUME of VOLUME the sound. 1. Press the MODE button repeatedly to display the menus in the following order: PICTURE->VOLUME->OPTION 2. -
Page 22: Parameters And Specifications
Parameters and specifications Battery Parameters Maintenance and Service Battery Specifications£º Refer to the information in this chapter before contacting a service Output£º7.4V technician. Handling the unit Charge / Discharge Time£º Standard charge time£º5h ~ 6h When shipping the unit Please save the original shipping carton and packing materials. Storage and work circumstances£º... -
Page 23: Electronical Parameters
Parameters and specifications Electronical parameters System Standard requirement Standard requirement Item Item :Semiconductor laser, wavelength 650 nm Laser Signal system Power requirements : AC 100-240 V , 50/60 Hz : NTSC / PAL Dimensions (Approx.) : 200(L)X167(W)X38MM Frequency : 20Hz to 20 kHz(1dB) response Power consumption : <15W... -
Page 24: Troubleshooting Tips
Troubleshooting tips Troubleshooting tips( Common) Troubleshooting tips(DVD) Before calling for service, you can check the following items on Play does not commence even when title is selected: symptoms and solutions Confirm the "Rating" settings. No sound or distorted sound: Audio soundtrack and/or subtitle language is not the one selected Ensure that the equipment is connected properly.
