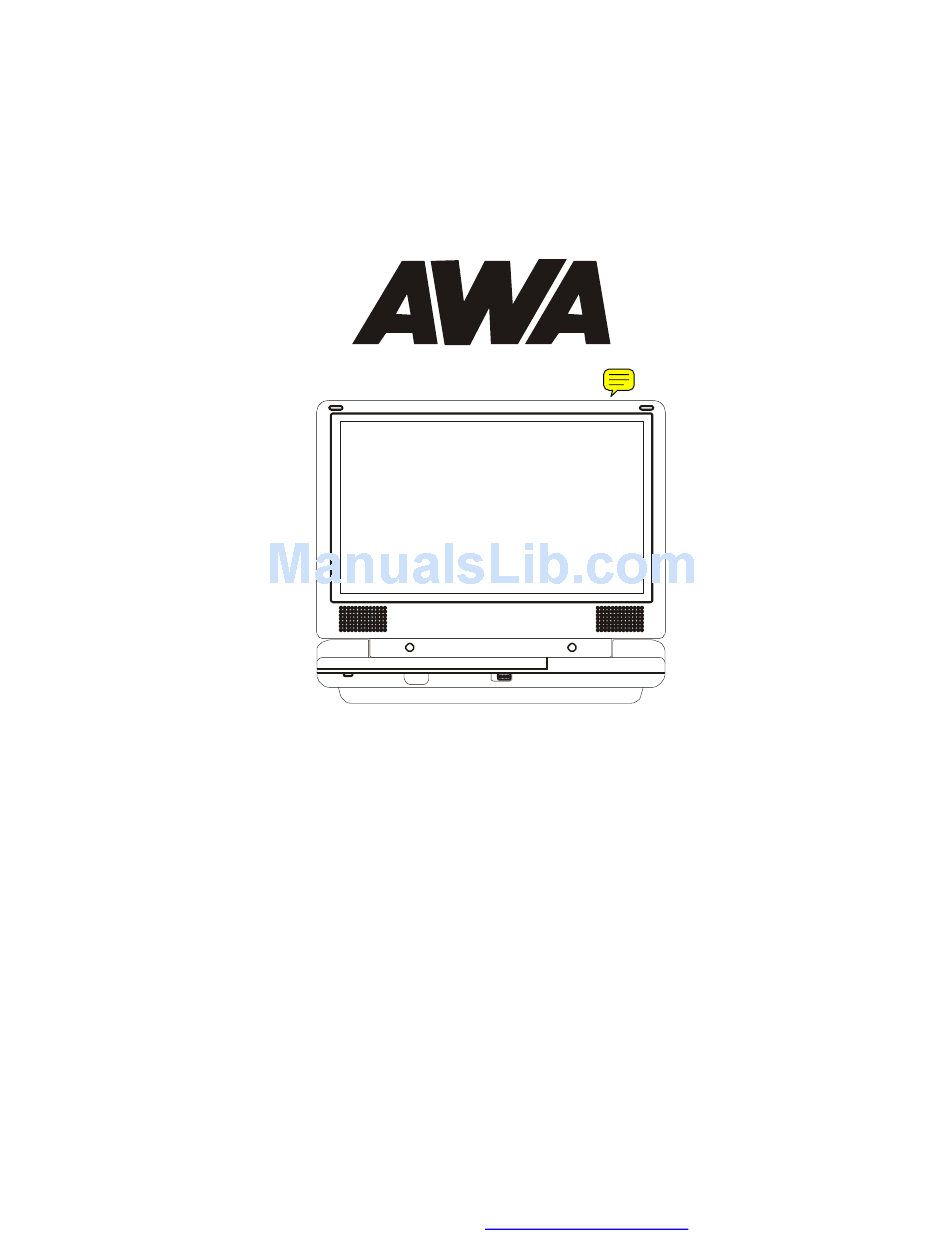

- Page 1 LMD-2808 Portable 8” DVD Player PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com...
- Page 2 Notice: This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights own- ers. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
Content A. Introduction ................1 B. Cautions and Warnings ............1 C. Contents ................3 D. Powering and installation ............. 3 E. Controls, Indicators, and Connectors ........4 F. Loading and Playing a Disc ..........5 G. Setup.................. 6 H. Basic Operation ..............15 I. -
Page 4: Introduction
A. Introduction Thank you for choosing the 8” portable DVD player. The main fea- tures include a 8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices or your home. - Page 5 not allowed to place the naked flame on the units. Use the apparatus only in moderate climates (not in tropical cilmates); Do not place ob- jects filled with liquids, such as vases, on the apparatus. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type, in order to protect the environment, please dispose the battery properly.
-
Page 6: Contents
C. Contents 1. 1 x 8’’ LCD Monitor & DVD Player Combo 2. 1 x AC to DC Adapter 3. 1 x Remote Control with battery (CR2025) 4. 1 x Instruction Manual 5. 1 x Audio/Video Cable 6. 1 x Carry Bag 7. -
Page 7: Controls, Indicators, And Connectors
E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 1) Figure 1 13) Open Switch 1) LCD Panel Shut Off Switch 14) IR Sensor 2) Wide Button 15) Power LED 3) Stop Button 16) Power on/off Switch 4) Previous Button 17) Brightness Up/Down Control 5) Next Button 18) Volume Up/Down Control... -
Page 8: Loading And Playing A Disc
2. Remote Control View (Refer to Figure 2) 1) Setup Button 2) Up Button 3) Previous Button 4) Enter Button 5) Left/Reverse Button 6) Down Button 7) Numberic Button 8) Display Button 9) Zoom Button 10) Subtitle Button 11) Next Button 12) A-B Repeat Button 13) Right/Forward Button 14) 1/ALL Repeat Button... -
Page 9: Setup
G. Setup Press ‘SETUP’ to display the Main screen of the Setup Menu on the screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode. G eneral S et up Page TV Display W ide Angle Mar k O ff... - Page 10 b).Select ‘Angle Mark’ using the UP/DOWN button, and then press the RIGHT button to enter the submenu. Choose Angle Mark on or off using the UP/DOWN button and then press ENTER to confirm the setting. Press the LEFT button to return. G eneral S et up Page TV Display W ide...
- Page 11 *On: Enables screen saver *Off: Disables screen saver (off) *NOTE: The DVD player will enter the Screen Saver mode after ap- proximately five minutes if the same image remains on the screen. d). Select ‘Last Memory’ by UP/DOWN button.and then press the RIGHT button to enter the submenu.
- Page 12 2) Select “Video Quality Setup”by using the LEFT/RIGHT button, press ENTER to enter the video quality setup page. Video Quality Setup Screen Display a).Select ‘Brightness’ by using the UP/DOWN button, then press EN- TER you can change the Brightness by pressing the LEFT/RIGHT button.
- Page 13 b).Select ‘Contrast’ by using the UP/DOWN button, then press ENTER you can adjust the Contrast by pressing the LEFT/RIGHT button. Contrast Screen Display To exit ‘Contrast’ Setting, press ENTER again to return the main Menu. c).Select ‘Hue’ by using the UP/DOWN button, then press ENTER you can adjust the Hue by pressing the LEFT/RIGHT button.
- Page 14 3).Select “Password” using the LEFT/RIGHT button, then press the RIGHT button to enter the submenu. Password Setup Page Screen Display Press ENTER to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Con- firmed New Password.
- Page 15 4).With no disc inside the player select ‘Preference Page’ using the LEFT / RIGHT buttons, then press ENTER to enter the preference page. a. Select ‘Audio’ using the UP/DOWN button, then press RIGHT to enter the submenu. Select the audio language you desire using the UP/DOWN button, then press ENTER to confirm the setting.
- Page 16 c. Select ‘Disc Menu’ using the UP/DOWN button, then press RIGHT to enter the submenu. Select the Disc Menu Language you desire using the UP/DOWN button, then press ENTER to confirm the setting. Press LEFT to return. Pr eference Page Audio EN G Subtitle...
- Page 17 e. Select ‘Default’ using the UP/DOWN button, then press RIGHT to en- ter the submenu. Press ENTER to make the setting return to the fac- tory-set mode. NOTE: The parental setting is not affected by the default reset function. Pr eference Page EN G Audio EN G...
-
Page 18: Basic Operation
H. Basic Operation OPEN Remove/load the disc PLAY/PAUSE Start Play/Execute item or setting STOP (1 time) Stop at the present playing point / (2 times) Stop playing NEXT Go to the next chapter, track or scene dur- ing play back PREVIOUS Go back to the previous chapter, track or scene during play back... -
Page 19: J. Display
I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu. -
Page 20: Menu
c. Press ‘DISPLAY’ a 3rd time to display the Elapsed Time for the chapter. The heading will disappear automatically in 3 seconds. Chapter Elapsed Time Screen Display d. Press ‘DISPLAY’ a 4th time to display the Remaining Time for the chapter. - Page 21 Angle Screen Display 3. SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are mul- tiple languages press ‘SUBTITLE’ again to select another subtitle lan- guage.
- Page 22 4. AUDIO During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total num- ber of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automati- cally if the ‘AUDIO’...
- Page 23 6. A-B REPEAT a. During playback press a first time ‘A-B’ to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B. A-B Repeat Ending Point Screen Display c.
- Page 24 7. 1/ALL REPEAT a. During playback press ‘1/ALL REPEAT’ once to repeatedly play the current chapter. Chapter Repeat Screen Display b. During playback press ‘1/ALL REPEAT’ again to repeatedly play the current title. Title Repeat Screen Display c. During playback press ‘1/ALL REPEAT’ a 3rd time to repeat all Chapters and Titles.
-
Page 25: Playing Audio Cds
d. Press ‘REPEAT’ a 4th time, to resume normal playback. Repeat Off Screen Display K. Playing Audio CDS When playing an audio CD press the DISPLAY button on the remote to view time information. The options below show you what information is available using this function. - Page 26 c. Press ‘DISPLAY’ a 2nd time and Total Elapsed appears along with the current track playing and the total time that the CD has been playing. Total Elapsed Screen Display d. Press ‘DISPLAY’ a 3rd time and Total Remain appears along with the current track playing and the amount of time remaining on the CD.
-
Page 27: Playing Mp3 Discs
L. Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song is compressed into the MP3 format with very little loss of audio quality while taking up much less disc space. CD-R /RW discs that have been encoded in MP3 format are compatible with this system. - Page 28 Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing 1/ALL REPEAT consecutively changes the repeat options: •...
-
Page 29: Playing Jpg File
M. Playing JPG file 1) Load the JPG Disc into tray. 2) Select JPG file by pressing “UP/DOWN” button. 3) You can preview the JPG file by pressing “Play” or “ENTER”. 4) Pressing the “Left Key“ will rotate the picture 90 degrees counterclockwise. - Page 30 i. Press “display” 9th time, “EXTEND FROM CENTER H” will dis- play on the screen, the picture will refresh from horizontal center to both sides. j. Press “display” 10th time, “EXTEND FROM CENTER V” will display on the screen, the picture will refresh from vertical cen- ter to both sides.
-
Page 31: Connecting To Anothe Equipment
N. Connecting to another equipment 1. AV Out Connecting with a TV or another Monitor Slide the AV In/Out switch to Out Connect one end of the audio/video cable’s black plug into the unit’s DVD A/V jack, and connect the other end to the AUDIO INPUT jacks on your TV or Monitor (white = left channel, red = right channel, yello=video). -
Page 32: Specifications
O. Specifications Compatible DISC: DVD/CD/MP3 Signal system: PAL Panel size: 8 inch Power source: DC 9-12V Operating temperature: 5~35°C Weight : 0.673 kg Dimensions (W x D x H): 205 x 152 x 40mm P.Game Controller Function Description 2 3 4 1.Direction PADS-Up, Down,Left,Right 4 directions control.Control the direction of the game 2.Power Switch-Control the Main Unit’s Power ON/OFF function... - Page 33 Game Button Functions 1.SUPER FIGHT 1 Wonderful shooting + best Xtreme exciteing game. A key- Jump and B- Key Fire Bullet 2.F22 B Key Fire Bullet START Key Pause The Game Take as many weapons as possible. 3.HAPPY BIQI A Key- Start the game and jump. B Key- Attack.
- Page 34 11.SHOOTING BALLONS A Key- Shoot the ballons LEFT/RIGHT- Control movement Shoot down the ballon which are floating in the air,you will be fail if the number of floating ballons reach to some certain amount. 12.EDACITY SNAKES Don’t come up against the wall or yourself 13.XMAS GIFT Get xmas gift,some gift can't get.enter the next level after get certain score.
- Page 35 19.SHOOT Direction Key- Parallelism to the left of sight lens shoot, B Key- Parellelism the right of sight lens shoot Shoot the white balloon throw into the air 20.VECTRON Direction key + B Key- Move cursor. Direction key + A Key- Attack Attack position in the cursor area can be casting net.content:catch bird the casting net casting each level's certain track and keep integrit (it can't be pecked broken by the bird.you will be win after...
- Page 36 25.SHOTPUT A/B Key continually or A,B strengthen power,rightward key run up press the time long or short of the upwards key control shotput angle. 26.PLUSH DOG A Key- Beat B Key start again,content:beat the dog come out from one of nine hole.To bombard the enemy 27.HUA RONG DAO Select Key- Choose.NORMAL:normal mode/CUSTOM:custom...
-
Page 37: Troubleshooting
Q. Troubleshooting PROBLEM SOLUTION • Make sure your DVD is connected properly. No sound or Make sure all cables are securely inserted distorted sound into the appropriate jacks. • You can’t advance through the opening credits and warning information that appears Can’t advance at the beginning of movies because the disc through a movie... - Page 38 Troubleshooting (Cont) PROBLEM SOLUTION • Verify that the batteries in the remote are IR sensor fresh. inoperative • Verify that the remote sensor eye is not obstructed. • Verify that the infrared transmitter is affixed over the sensor eye of the com- ponent to be controlled.
