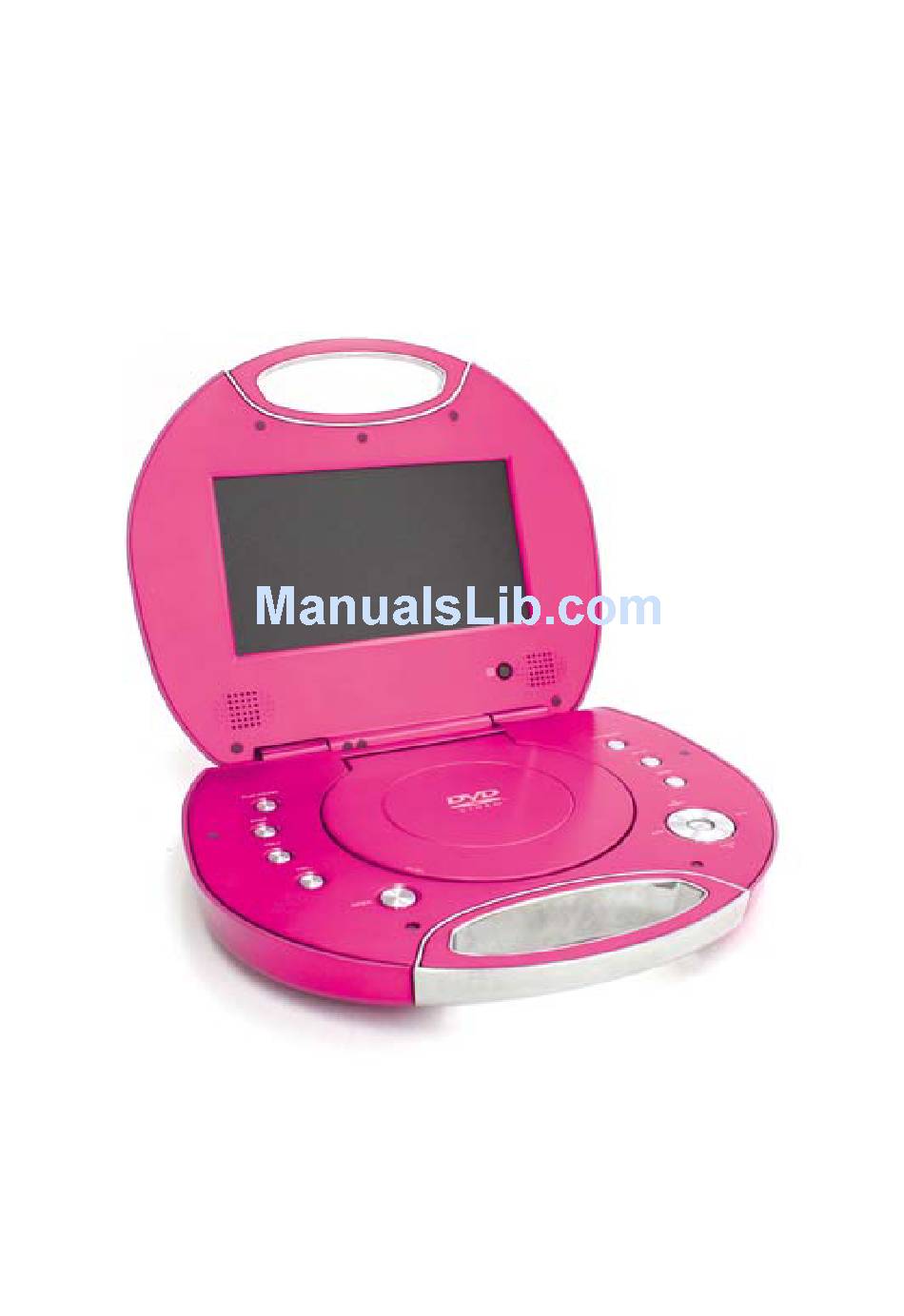

- Page 1 USER MANUAL 7” Portable DVD Player Please read all the instructions before using your Portable DVD Player ...
- Page 2 CONTENTS PAGE Contents Page Page 2 Warning Page Page 3 Safety Warning Page 4 Specifications Page 6 Contents ...
- Page 3 Frequently Asked Questions Page 28 Storage Page 30 WARNING PAGE To prevent electric shock; do not use this plug with an extension cord receptacle or other outlets unless the blades can be fully inserted to prevent exposure. To prevent fire or shock hazard; do not expose this appliance to rain or moisture. CAUTION RISK OF ELECTRIC The lighting flash SHOCK with arrowhead DO NOT OPEN The exclamation symbol, with an point within an equilateral triangle equilateral is intended to alert triangle is CAUTION: TO the user to the intended to alert ...
- Page 4 electric shock to accompanying the persons. appliance. CAUTION CLASS 1 LASER PRODUCT DANGER: This unit uses a laser. Only a qualified service person should remove the cover or attempt to service this device to avoid possible eye injury. WARNING: RISK OF INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED ...
- Page 5 • Make sure the power outlet is turned off before plugging the product into the power outlet. • Ensure you only ever plug this item into an AC 240V Power outlet. • Make sure you always turn the product off and the power outlet off completely before unplugging the product. • Do not place the product in direct sunlight or heat. Keep away from temperatures over 35°C. • Do not place the product near magnetic fields such as Televisions or speakers. • Make sure the product has plenty of ventilation. • Do not press the buttons or the display too hard as it could damage the product. • Do not use a wet cloth on the product. Always use a dry cloth to clean this product and keep it free from dust. • Do not use chemicals on this product. • Never try to repair this product yourself, take it to an approved technician. Trying to remove panels or repairing the unit yourself could lead to electric shock. • When the unit is not in use, make sure it is correctly turned off and stored in a cool dry place. • Do not insert foreign objects into the product. ...
- Page 6 SPECIFICATIONS • 7 Inch TFT LCD Display (16:9 Screen Aspect) • 480 x 234 Screen Resolution • Compatible with DVD, CDR,‐W, JPEG, and MPEG4 formats • USB Slot and SD/MMC card reader • PAL/NTSC Compatible • Built‐in stereo speakers • Parental Lock • 3.5mm Headphone Jack • AV Output Jack • Built‐In Rechargeable Battery • Power Rating:12V DC Input 0.8A • Operation temperature 5°C – 40°C • Storage temperature 15°C – 40°C CONTENTS 1. 7” Portable DVD Player 1 piece 2. AV Cable ...
- Page 7 5. Remote Control 1 piece 6. User Manual 1 piece 7. DVD Carry Bag 1 piece DEVICE OVERVIEW DVD PLAYER 1 TFT Display window 2 Built‐in Speaker ...
- Page 8 on/off the PBC (VCD). 13 UP/PREV button ‐ Press UP 14 LEFT/ FR button ‐ Press button to up, and if you LEFT button to left, and if keep pressing it for more you keep pressing it for than 2 seconds, more than 2 the player will skip to the seconds, the player will previous chapter or title play the disc backward at (for DVD) or track (for CD). speed:x2,x4,x8,x16x32 15 RIGHT/FF button ‐ Press 16 DOWN/NEXT button ‐ Press DOWN button to RIGHT button to right, and if you keep pressing it for down, and if you keep more than 2 seconds, the pressing it for more than 2 player will play the disc seconds, the player will forward at skip to the next chapter or speed:x2,x4,x8,x16,x32. title (DVD) or track (for CD). ...
- Page 9 ...
- Page 10 17 Power Switch ‐ Switch 18 DC In Jack ‐ Power input this to turn on/off the jack player 19 Battery indicator 20 Power indicator 21 3.5mm Jack – allows you 22 AV Out Jack ‐ Connect to to listen by headphone TV or other external AV or earphones equipment to use the player as a signal source 23 USB slot ‐ Insert USB to 24 SD/MMC slot ‐ Insert ...
- Page 11 play the files contained SD/MMC card to play the in it. files contained in those cards REMOTE CONTROL ...
- Page 12 Number Button Function 1 TFT MODE button Press this button to select BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, HUE or 16:9/4:3 screen mode and then press left or right button to adjust as you like. 2 NUMERIC buttons Press these buttons to input numeric information, such as track number, chapter number. 3 FR button Press this button to play the disc backward at speeds:x2,x4,x8,x16,x32. 4 FF button Press this button to play the disc forward at speeds: x2,x4,x8,x16,x32 5 ZOOM button Press this button to enlarge ...
- Page 13 picture size, max. to x4 or to shrink picture size, min. to x1/4 6 SLOW button Press this button to play the disc at speeds: 1/2,1/4,1/8,1/16. 7 PROGRAM button Press this button to setup the memory order of chapter or title (for DVD) or tracks (for VCD/CD). 8 ANGLE button Press this button to display the angle number and change to different angles 9 STEP button Press this button to play the file forward step by step 10 L/R button To change audio output mode: Left Mono, Right Mono, Mix‐mono and Stereo soundtrack. ...
- Page 14 11 TITLE button Press this button to return to title menu (for DVD). 12 SUBTITLE button Press this button to display and change subtitle language (For DVD only). 13 LANGUAGE BUTTON To select the soundtrack language (DVD). 14 USB/CARD/DVD Press this button continuously to switch the unit among USB/CARD/DVD mode 15 N/P button Press this button to select NTSC or PAL system (For DVD only). 16 OSD button Press OSD button continuously during playback, the screen will display the playing information, such as elapsed ...
- Page 15 time, remaining time 17 GO TO button Press this button to set the player to play disc starting at a certain point. 18 PLAY/PAUSE button Press this button to start or pause playing the disc 19 STOP button Press this button to stop playing the disc 20 NEXT button Press this button to play the next chapter (for DVD) or track (for VCD/CD). 21 PREV button Press this button to play the previous chapter (for DVD) or track (for VCD/CD). 22 REPEAT button Press this button to repeat playing one chapter or one title (for DVD) or repeat playing the current track or the whole tracks (for ...
- Page 16 VCD/CD). 23 A‐B button Press this button to repeat playing sections between two specific points (A‐B). 24 SETUP button Press this button to enter initial settings menu 25 ENTER button Press this button to confirm what you have selected 26 Navigation buttons Press this button to move up, down, left or right 27 MENU button Press this button to return to the root menu (for DVD) or to turn on/off the PBC (for VCD). 28 VOLUME + button Press this button to turn up the volume 29 VOLUME – button Press this button to turn down the volume. ...
- Page 17 30 MUTE button Press this button to mute the sound. SETTING UP THE DVD PLAYER REMOTE CONTROL BATTERY INSTALLATION Pull out the insulation film in the remote control (Fig1). Now the Remote control will work. When the batteries are flat, replace them as below: Slide the battery tray out by pushing the clip across refer Fig2. Remove the Old battery and replace with a new CR2025 battery, ensuring the polarity of the battery is match to the remote control. Close the tray ...
- Page 18 POWERING THE DVD PLAYER The Portable DVD Player has a built battery and also can be powered by an AC Power Adaptor or DC Car Adaptor. The battery will take approximately 4 hours to fully charge when empty and will continuously play for 1.5 hours until flat. To charge the battery: 1. Insert the AC adaptor or DC Car adaptor into DC In 12V jack on the unit. 2. The Insert the AC adaptor into the wall socket and turn the wall switch on, or if using the DC adaptor insert into the car cigarette lighter and the portable DVD player will start charging. DISC CARE AND MAINTENANCE • Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the disc. • Do not attach adhesive tape, stickers etc to the disc label • Clean the disc before using with a soft lint free cloth. Never use detergents or abrasive cleaners to clean the disc. ...
- Page 19 • Discs should be stored in there cases to prevent damage. • Do not expose discs to direct sunlight, high humidity, high temperatures or dust etc. Prolonged exposure or extreme temperatures may warp the disc. • The discs spin at high speed during playback. Don’t use damaged, cracked or warped discs to avoid damaging the unit. LOADING DISC 1. Press the open button to open the disc cover. 2. Remove the plastic from the lens area. 3. Insert the disc, gently click into place. 4. Close the disc tray lid and wait for the player to load. CONNECTING TO A TV ...
- Page 20 CONNECTI NG TO AUDI O BASIC OPERATION DVD PLAYBACK For DVD playback when the disc is loaded into the Portable DVD Player the disc will automatically start playing. Follow the DVD’s menu to start playing the movie. ...
- Page 21 PLAYING USB/MEDIA CARDS Insert USB/CARD containing the files in Music, picture or movie format. Press USB/CARD button to switch the unit in USB reader mode. After several seconds, all the folders in the USB/CARD will display on monitor screen: Select a folder you want to play using the navigation buttons and press the ENTER button to confirm. ...
- Page 22 The files in this folder are displayed and select the desired file by navigation buttons, then press the ENTER button to start to play. Press NEXT or PREV button to turn the current menu page to the next or previous menu page. Press REPEAT button to change repeat playing mode. ‐ SHUFFLE: the files will be randomly shuffled and play in that order ‐ RANDOM: randomly select any file to play. ‐ SINGLE: play one file only. ‐ REPEAT ONE: repeats one file. ‐ REPEAT FOLDER: all the files in the folder will play repeatedly. ...
- Page 23 ‐ FOLDER: all the files in the folder will be played FEATURES SETUP The Setup menu allows you to change many settings of the Portable DVD Player. The Setup menu consists of TV type, TV display, angle Mark, OSD Language, Captions, Screen Saver and Default. Press the SETUP button on the Portable DVD Player or on the remote control and the setting menu will appear. Use the Left/Right/Up Down buttons to navigate through the menu. Use the Enter button to confirm your selections. When completed press the Setup button again to return back to the playback mode. This will also save all your settings. TV TYPE ‐ it is for selecting the TV system according to the colour system of the TV. Options are PAL/NTSC (select PAL for Australia) ...
- Page 24 TV DISPLAY ‐ is for selecting TV output mode. Options: Normal /PS: Pan & scan mode Normal/ LB: Letter box mode Wide: 16:9 wide screen mode ANGLE MARK ‐ it is used to select whether or not the multi‐ angle icon is displayed on screen when a Multi‐angle DVD disc is playing. Options: On: Icon will be displayed Off: Icon will be turned off OSD LANG ‐ It is used to choose the desired language for different user. In this player, you can choose English. CAPTIONS ‐ It is used to switch the caption ON/OFF when playing DVD disc. ...
- Page 25 Press the “Up or Down” Arrows to choose your selection SPEAKER SETUP ‐ it is used to set the speaker Output levels Options: LT/RT ‐ Left/Right mix mode STEREO ‐ Select this option if you don't have a 2.1 channel amplifier. SURROUND ‐ It is used to set dummy surrounding audio effectiveness EQUALIZER SETUP ‐ It is used to compensate for frequency distortion to improve its frequency response in audio systems (not applicable). Options: SOUND MODE ‐ It is for selecting the Equalizer Type, in this unit, you can choose Mono, Rock, Pop, Live, Dance, Techno, Classic or Soft. BASS BOOST ‐ It is used to turn the Bass Boost ON or OFF. ...
- Page 26 PASSWORD SETUP When you press “Setup” on the DVD player or on the Remote control, you can then press the right arrow to move across to the Password setup page. Once you have accessed that menu you will see the following screen: PASSWORD ‐ It is used to change the password, and the procedure of changing password is described as followings: Enter old password in the OLD PASSWORD row Enter new password in the NEW PASSWORD row Enter the new password again in the CONFIRM PWD row Press OK button on the screen to return to the Password Setup Page, then the Password has been changed. NOTE: The original password is 136900, you can change it, but you should ...
- Page 27 write it down and keep it safe. If you forget the password, please use the original password: 136900. PARENTAL ‐ This setting allows certain people to view certain discs, which may be especially useful to forbid children from viewing some unbefitting discs. When you have entered the Parental Control, the screen will display: Scroll down the alternatives by moving Up or Down Navigation button, press ENTER button and enter the password which you has set before, then you have set a Parental Control. There are eight different settings from “Kid Safe” to “Adult” which you can choose. ...
- Page 28 P L AYI NG DVDS To play DVD’s make sure the DVD player is either connected to a power outlet or the internal battery has been completely charged before use. Slide the power switch on the side of the DVD player to “On”. Press the “Open” Button on the DVD player, to open the disc door. Carefully insert the disc ensuring with the top of the disc facing up. Close the disc door. Press “Play”. Using the remote control, you can adjust the Volume, Skip to the next chapter of a movie, stop, pause, zoom, or repeat. You can also view JPEG files on the DVD player. You can use the remote to flip, rotate or skip to the next image. FREQUENTLY ASKED QUESTIONS • Ensure the power button is on. NO PICTURE • Ensure the power outlet is operational. OR SOUND • Ensure the power cord is not damaged. •...
